Removal & Installation

  1. Disconnect negative battery cable. Remove front wiper arms. See WIPER ARMS  . Remove air inlet screen from vehicle. Remove connector from wiper motor assembly. Remove 2 upper screws from washer solvent container. Loosen lower washer solvent container screw and rotate container toward front of vehicle.

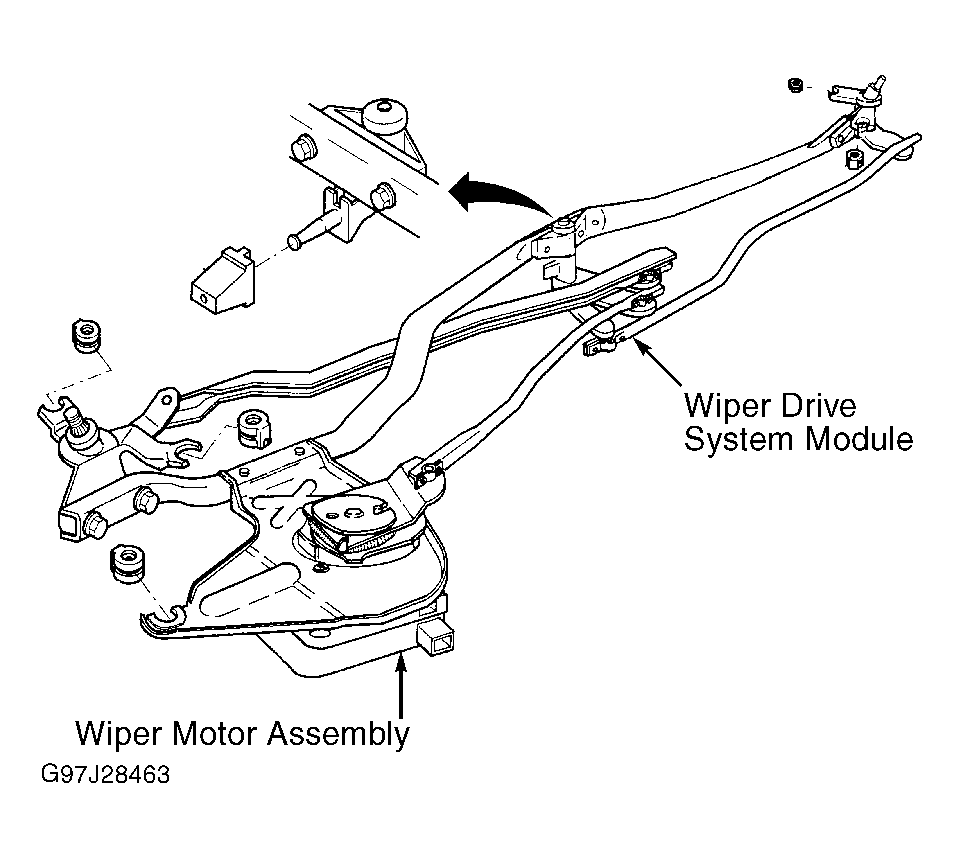

  2. Remove 2 screws from left side of wiper drive system module. Remove 3 remaining screws and wiper drive system module. Remove 6 insulators from wiper drive system module. Remove wiper motor assembly from wiper drive system module. See Figure . To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS  .
