Component Locations

COMPONENT LOCATIONS

Component Location
Convenience Center Under Left Side Of Instrument Panel. See Fig 1
Data Link Connector Under Left Side Of Instrument Panel. See Fig 2
IP Fuse Block At Lower Left Kick Panel. See Fig 3
Power Door Lock Control Module In Left Kick Panel. See Fig 4
Power Door Lock Relay Behind Center Of Instrument Panel. See Fig 5
Remote Control Door Lock Receiver Attached To Cowl, Above Engine Cover. See Fig 5
C209 In Left Body Harness, Under Left Side Of Instrument Panel. See Fig 6
C210 In Crossbody Harness, Under Left Side Of Instrument Panel, At Convenience Center. See Fig 1
C211 In Crossbody Harness, Under Left Kick Panel. See Fig 7
C212 Behind Right Kick Panel. See Fig 8
C300 In Right Body Harness, Behind Right Kick Panel. See Fig 8
G200 Behind Left Kick Panel, Near Power Door Lock Control Module.
G201 In Instrument Panel Harness, Behind Left Kick Panel, Near Instrument Panel Fuse Block. See Fig 9
G402 In Right Rear Corner Of Interior Of Cabin, Behind Right Rear Wheel House. See Fig 10
P901 At Right Rear Door. See Fig 11
C206 In Crossbody Harness, Approximately 2" (11 cm)
S228 In Crossbody Harness, Approximately 4" (11 cm) From C210 Breakout, Toward Power Door Lock Relay Breakout.
S241 In Crossbody Harness, Approximately 11" (29 cm) From The C212 Breakout, Toward Power Door Lock Relay Breakout.

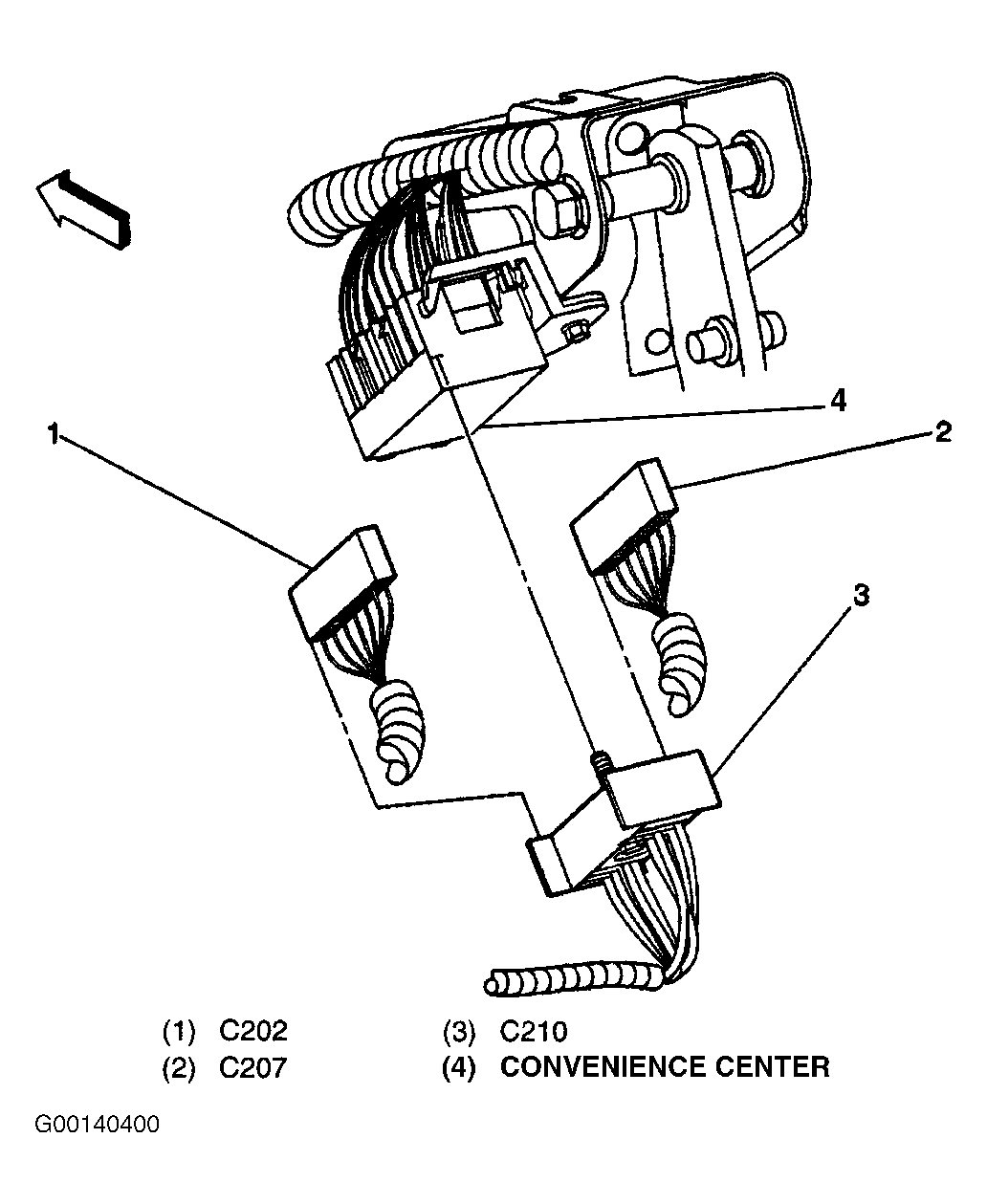

Fig 1: Locating Convince Center & Connector C210
G00140400Courtesy of GENERAL MOTORS CORP.

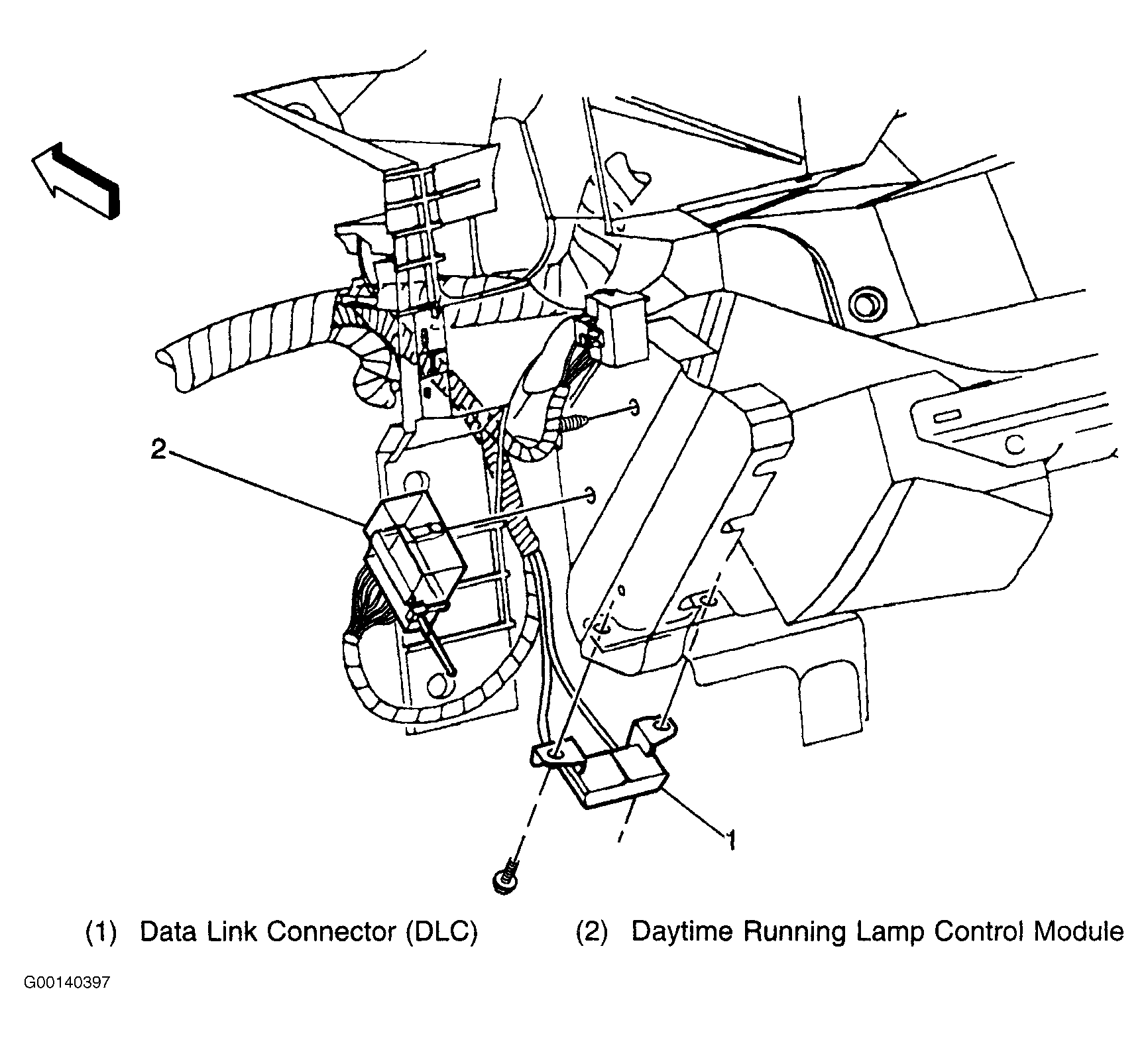

Fig 2: Locating Data Link Connector
G00140397Courtesy of GENERAL MOTORS CORP.

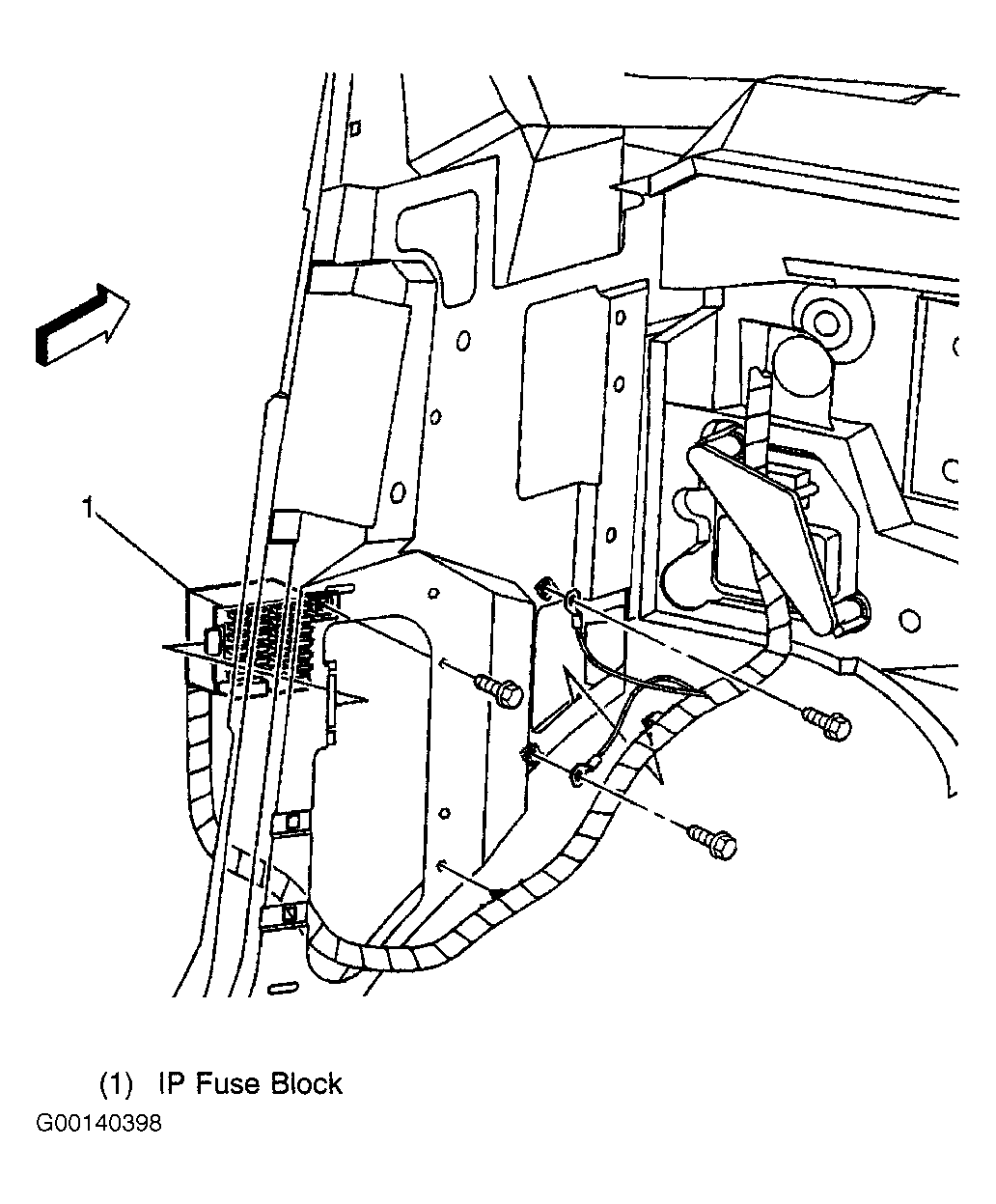

Fig 3: Locating Instrument Panel Fuse Block
G00140398Courtesy of GENERAL MOTORS CORP.

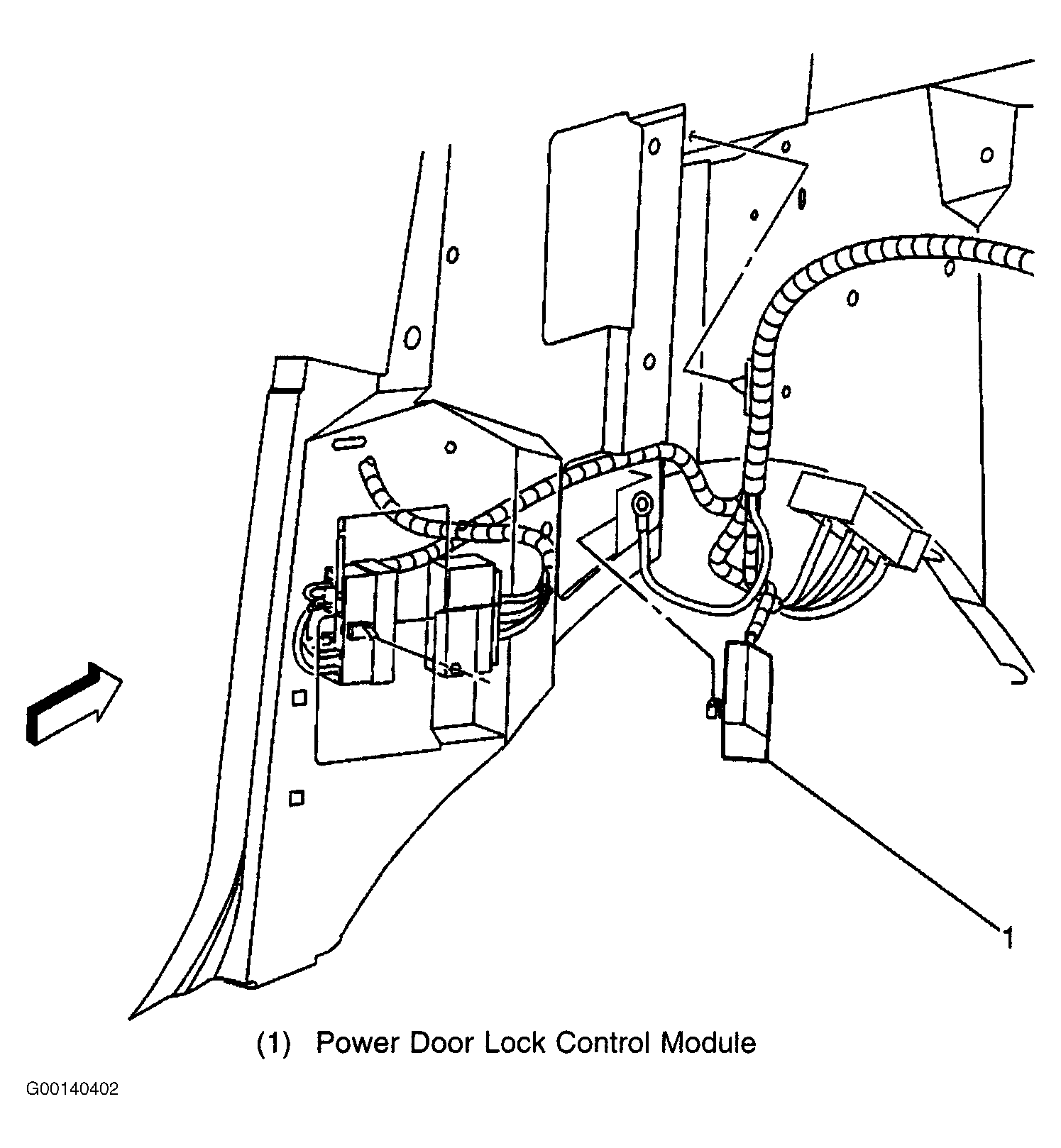

Fig 4: Locating Power Door Lock Control Module
G00140402Courtesy of GENERAL MOTORS CORP.

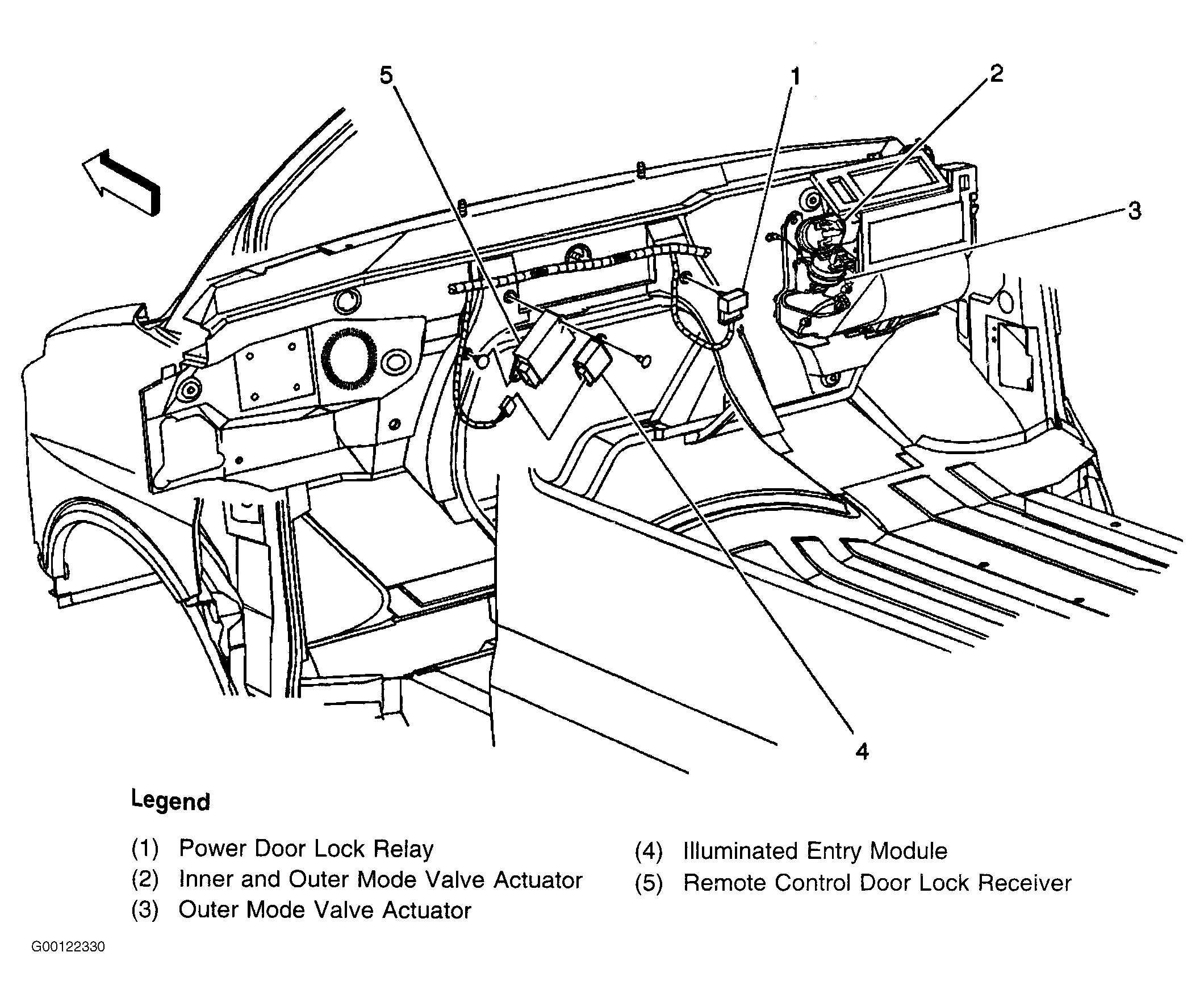

Fig 5: Locating Remote Control Door Lock Receiver & Power Door Lock Relay
G00122330Courtesy of GENERAL MOTORS CORP.

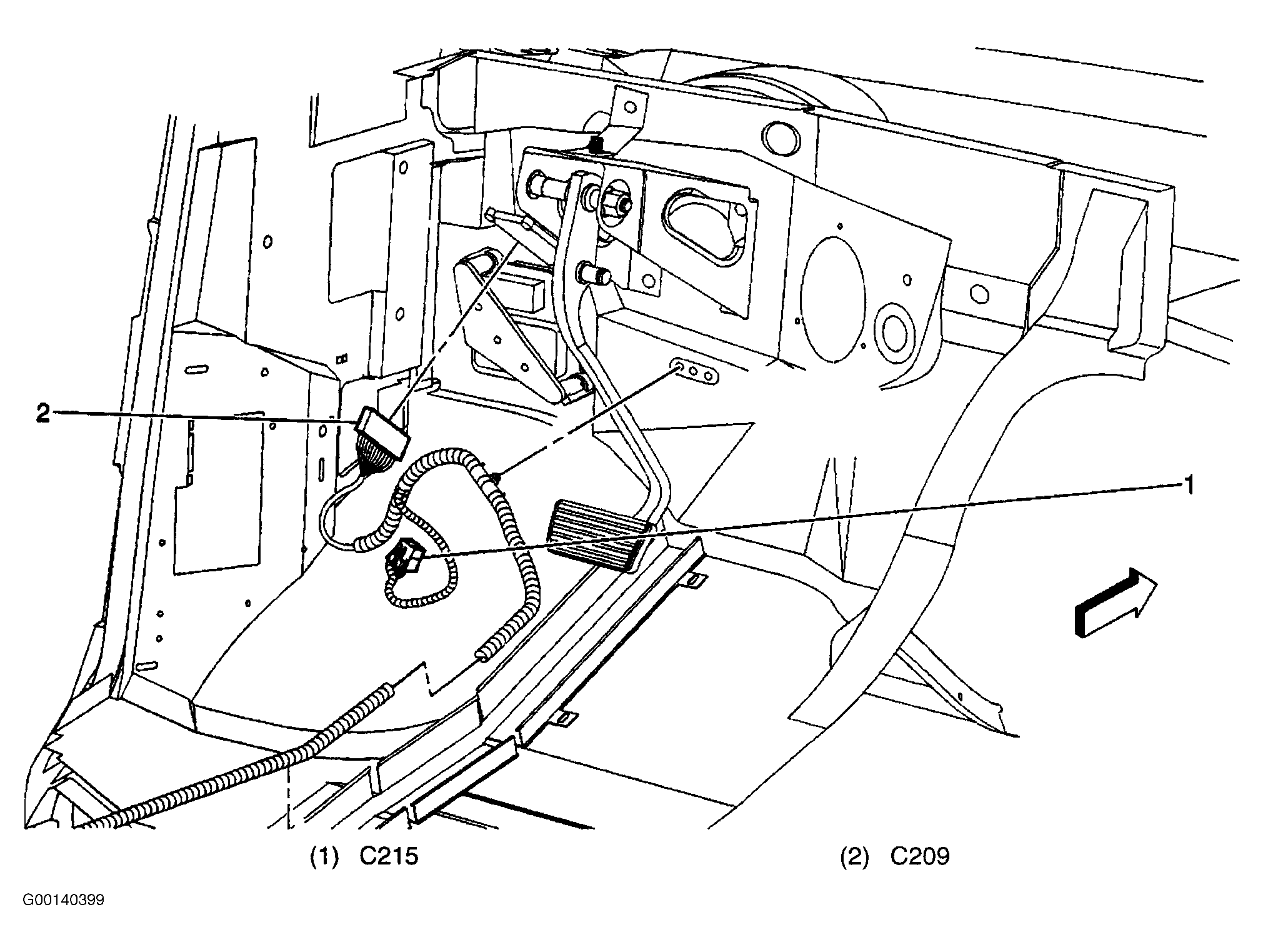

Fig 6: Locating Connector C209
G00140399Courtesy of GENERAL MOTORS CORP.

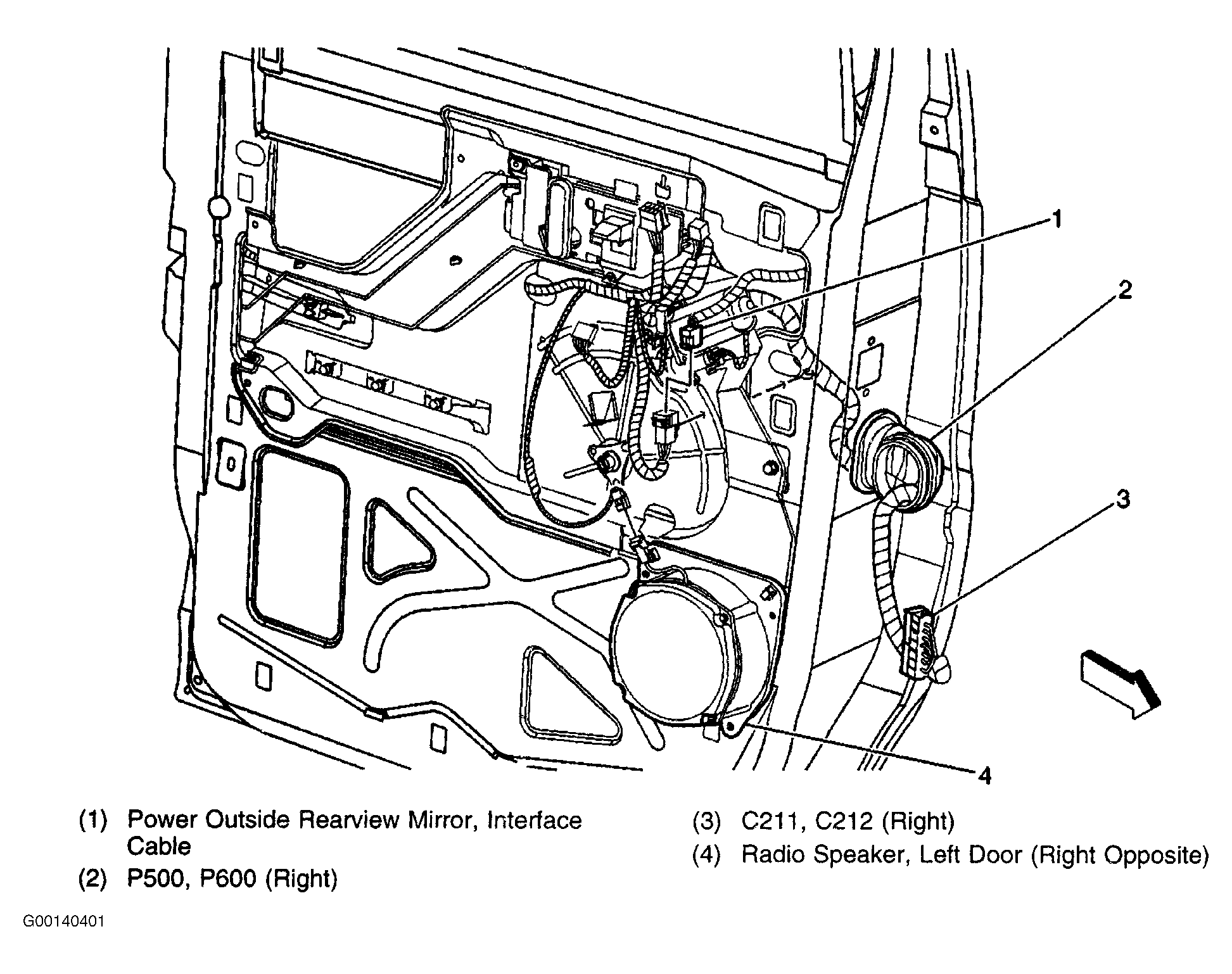

Fig 7: Locating Connector C211
G00140401Courtesy of GENERAL MOTORS CORP.

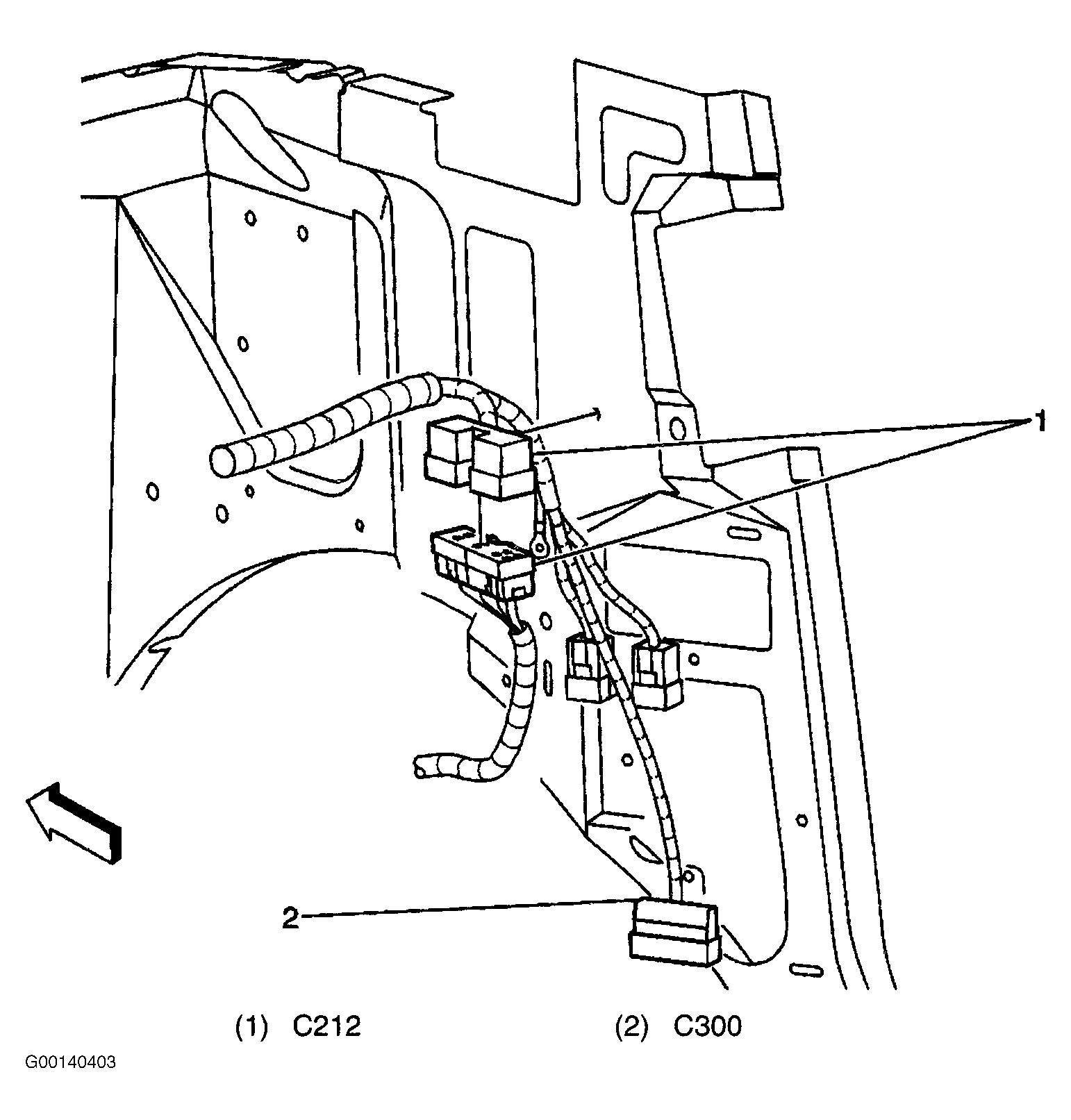

Fig 8: Locating Connector C212 & C300
G00140403Courtesy of GENERAL MOTORS CORP.

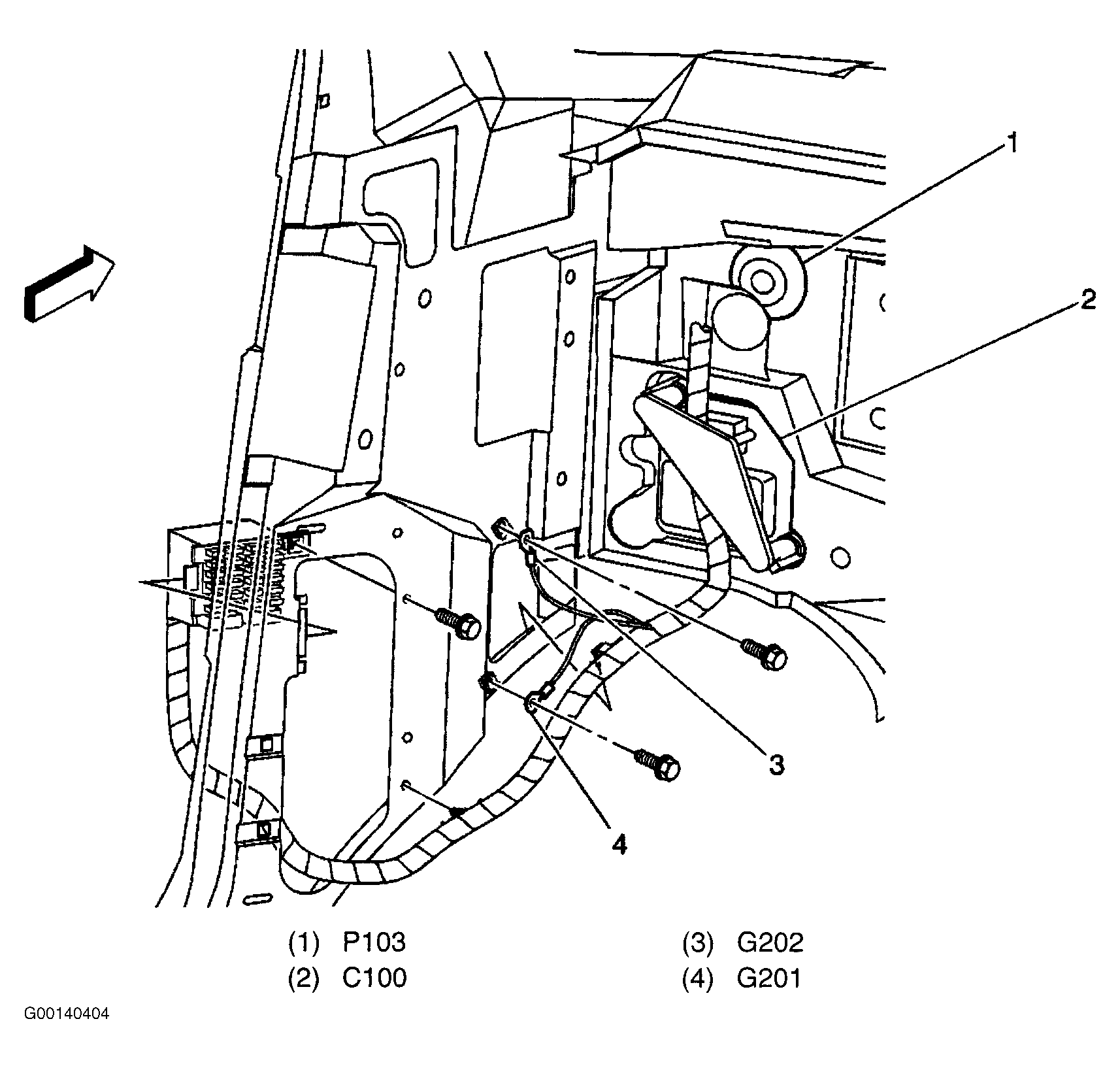

Fig 9: Locating Ground G201
G00140404Courtesy of GENERAL MOTORS CORP.

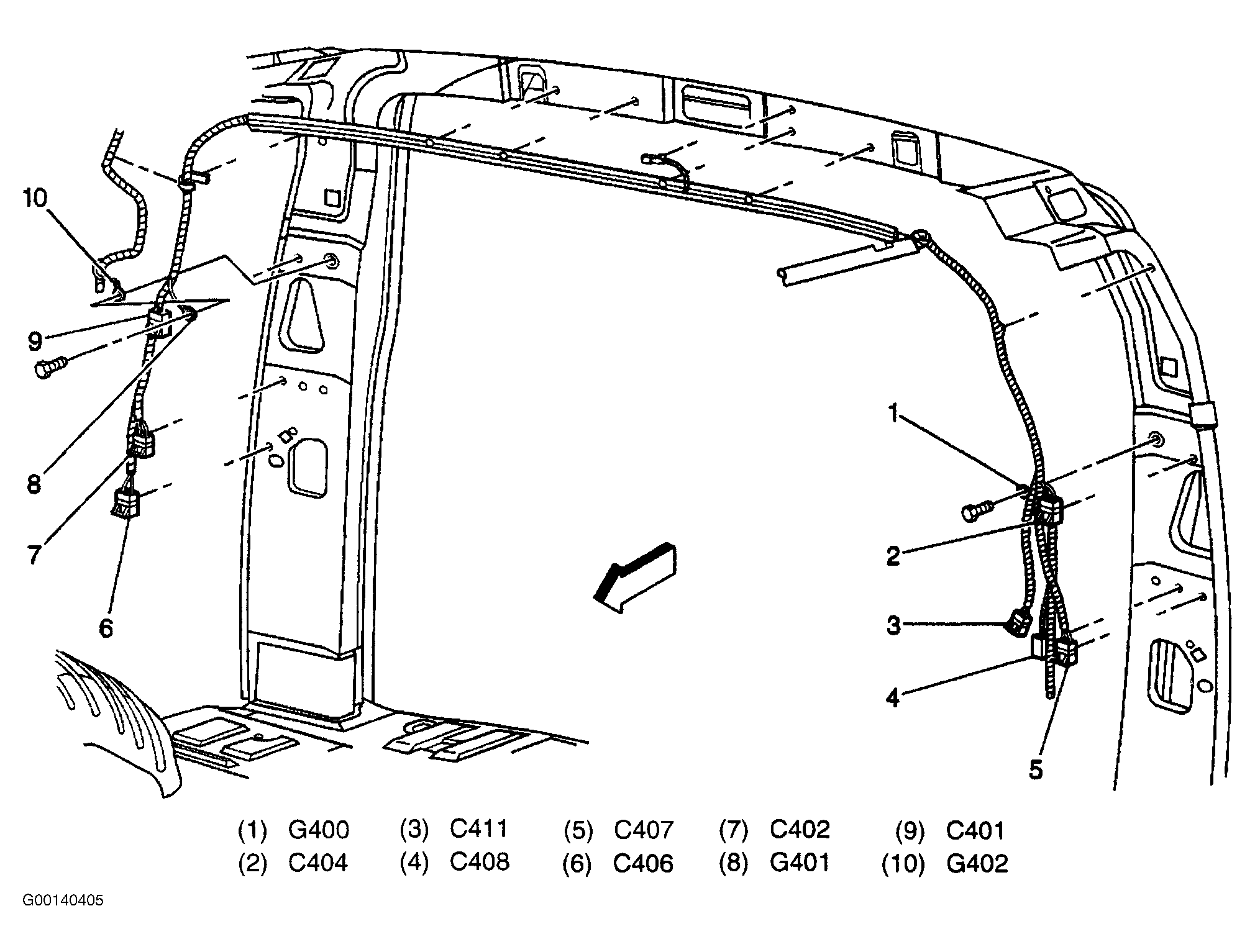

Fig 10: Locating Ground G402
G00140405Courtesy of GENERAL MOTORS CORP.

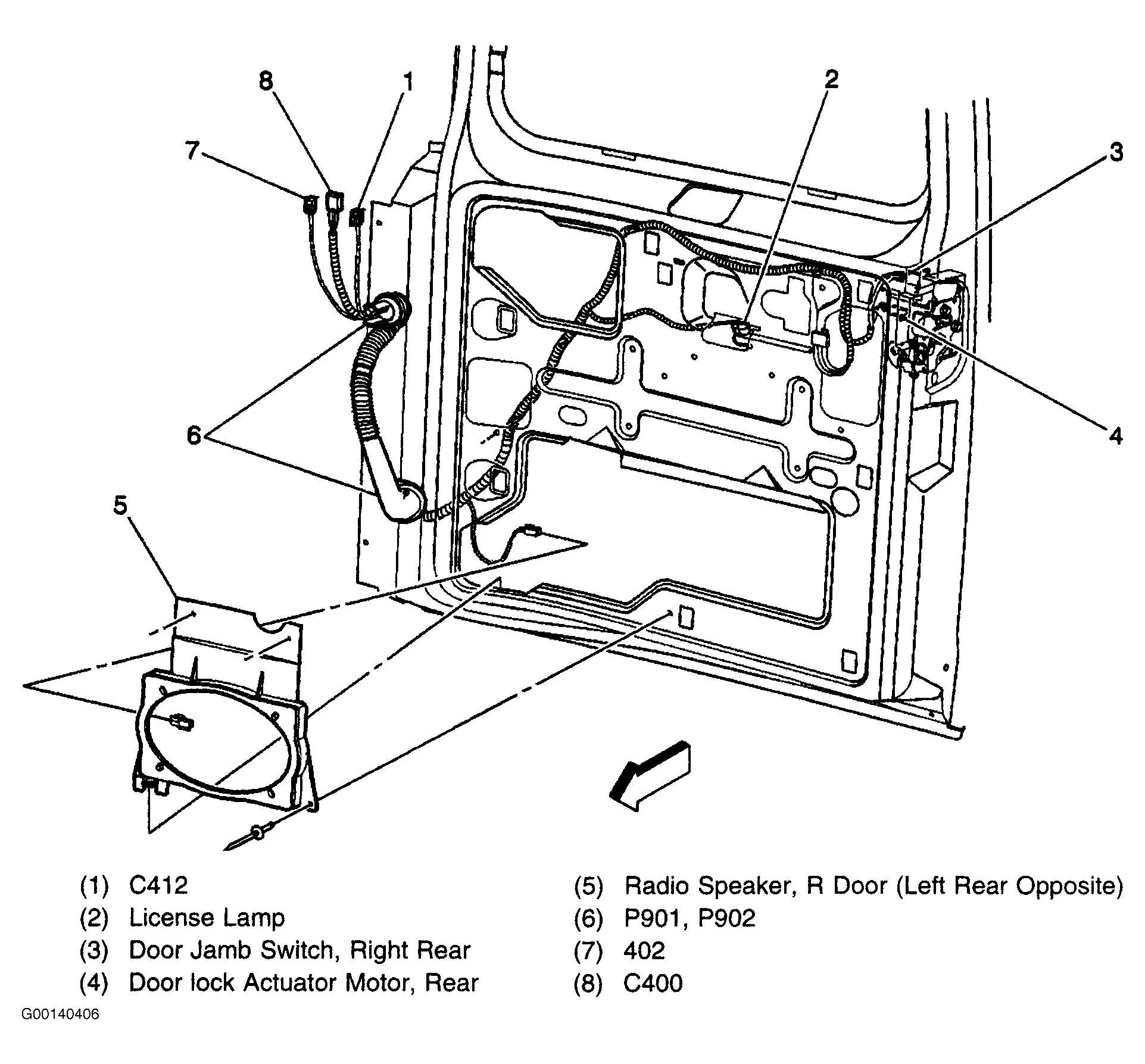

Fig 11: Locating Grommet P901
G00140406Courtesy of GENERAL MOTORS CORP.
