Front End Discriminating Sensor: Removal

WARNING: This page is about a different car, the 1997 Pontiac Sunfire and 1997 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .
Forward discriminating sensor is located next to hood latch bracket. Remove CPA clip and disconnect electrical connector. Remove sensor mounting fasteners. Remove sensor. See Fig 1 .

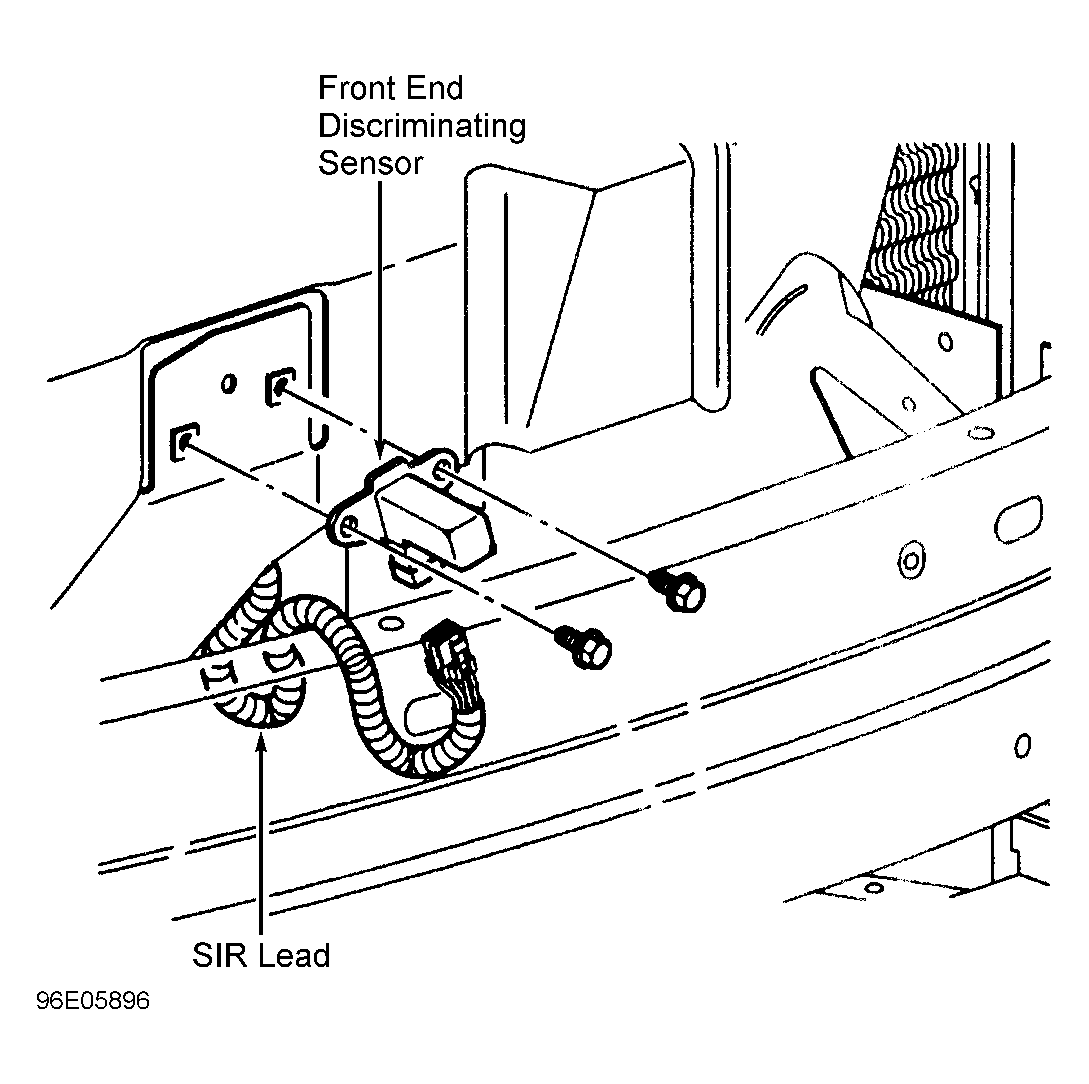

Fig 1: Removing Front End Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.
