Disabling System

WARNING: This page is about a different car, the 1997 Pontiac Sunfire and 1997 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When AIR BAG fuse is removed and ignition switch is in RUN, the AIR BAG warning light will be on. This does not indicate a system malfunction.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition switch to LOCK position and remove key.

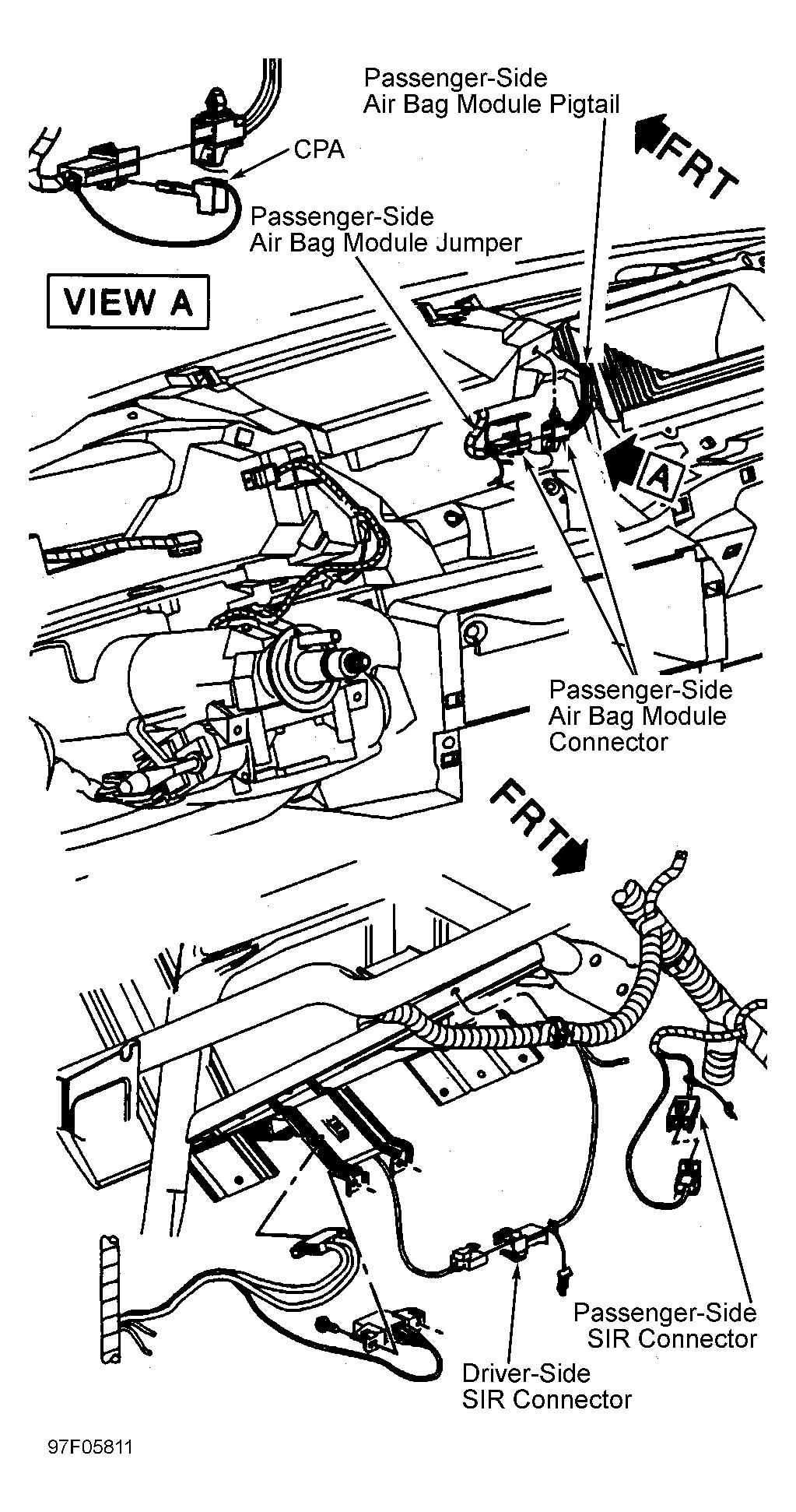

  2. Remove AIRBAG fuse from instrument panel fuse block. Remove driver-side sound insulator panel. Remove Connector Position Assurance (CPA) clip and disconnect driver-side Yellow 2-way connector located near base of steering column. See Figure .Disconnect passenger-side Yellow 2-way connector located near base of steering column. See Figure .
