System Tests: Notes

To test by symptom, see Fig 1 . For diagnostic flowchart, see DATA LINE DIAGNOSIS .

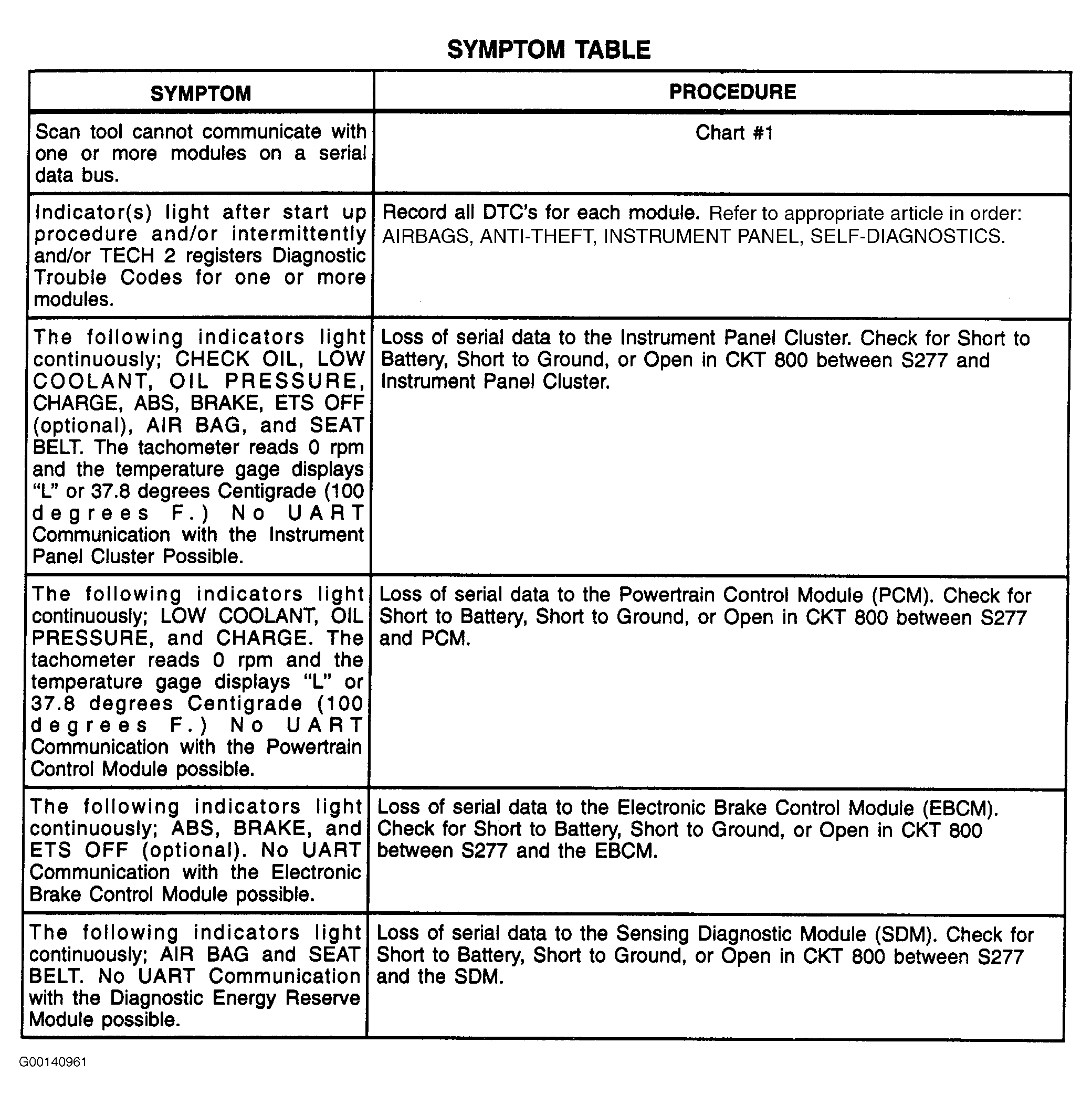

Fig 1: Data Line Symptom Chart

G00140961

Courtesy of GENERAL MOTORS CORP.
