Data Line Diagnosis

Refer to flowchart. See Fig 1 and Fig 2 .

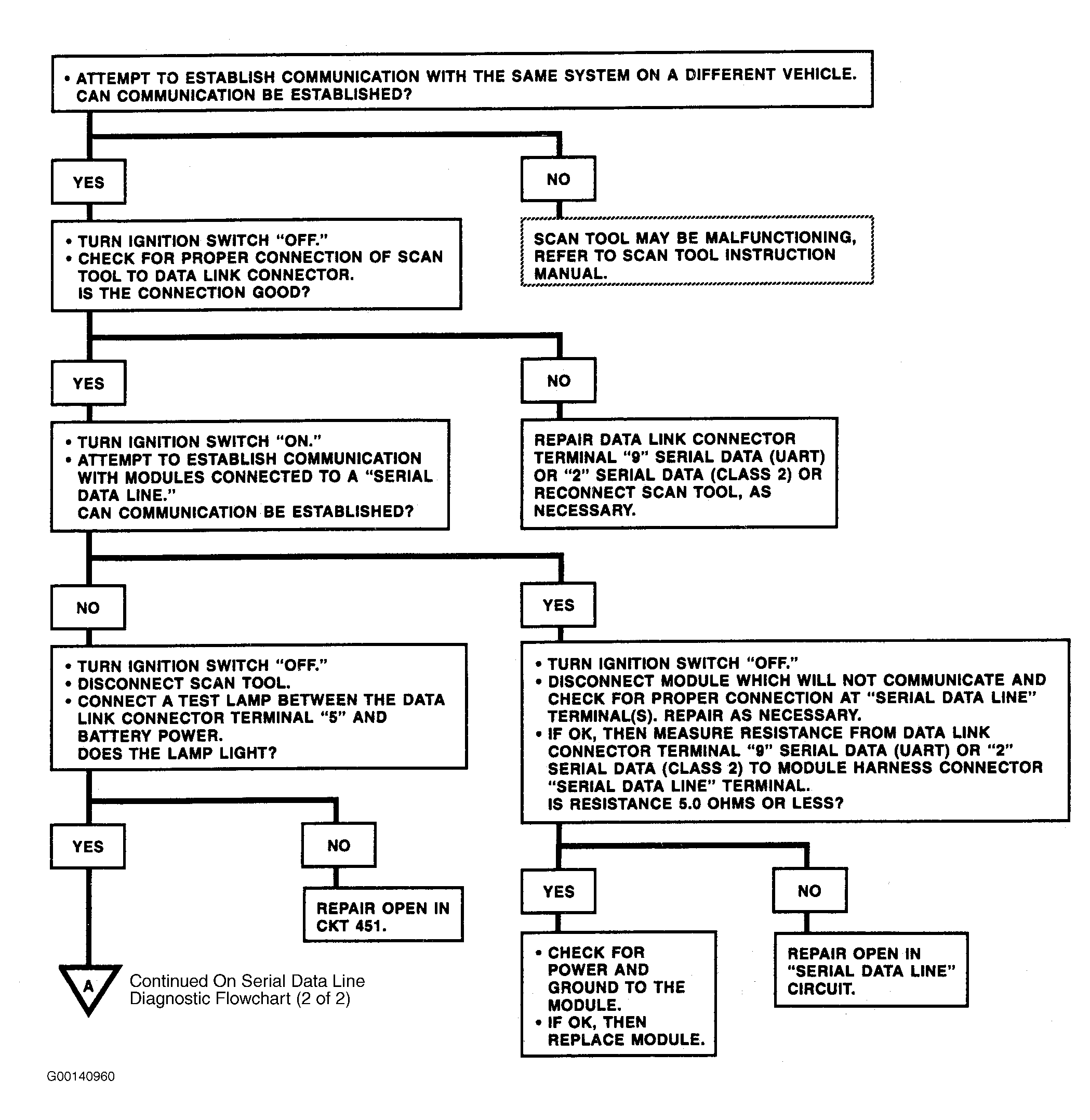

Fig 1: Serial Data Line Diagnostic Flowchart (1 Of 2)
G00140960Courtesy of GENERAL MOTORS CORP.

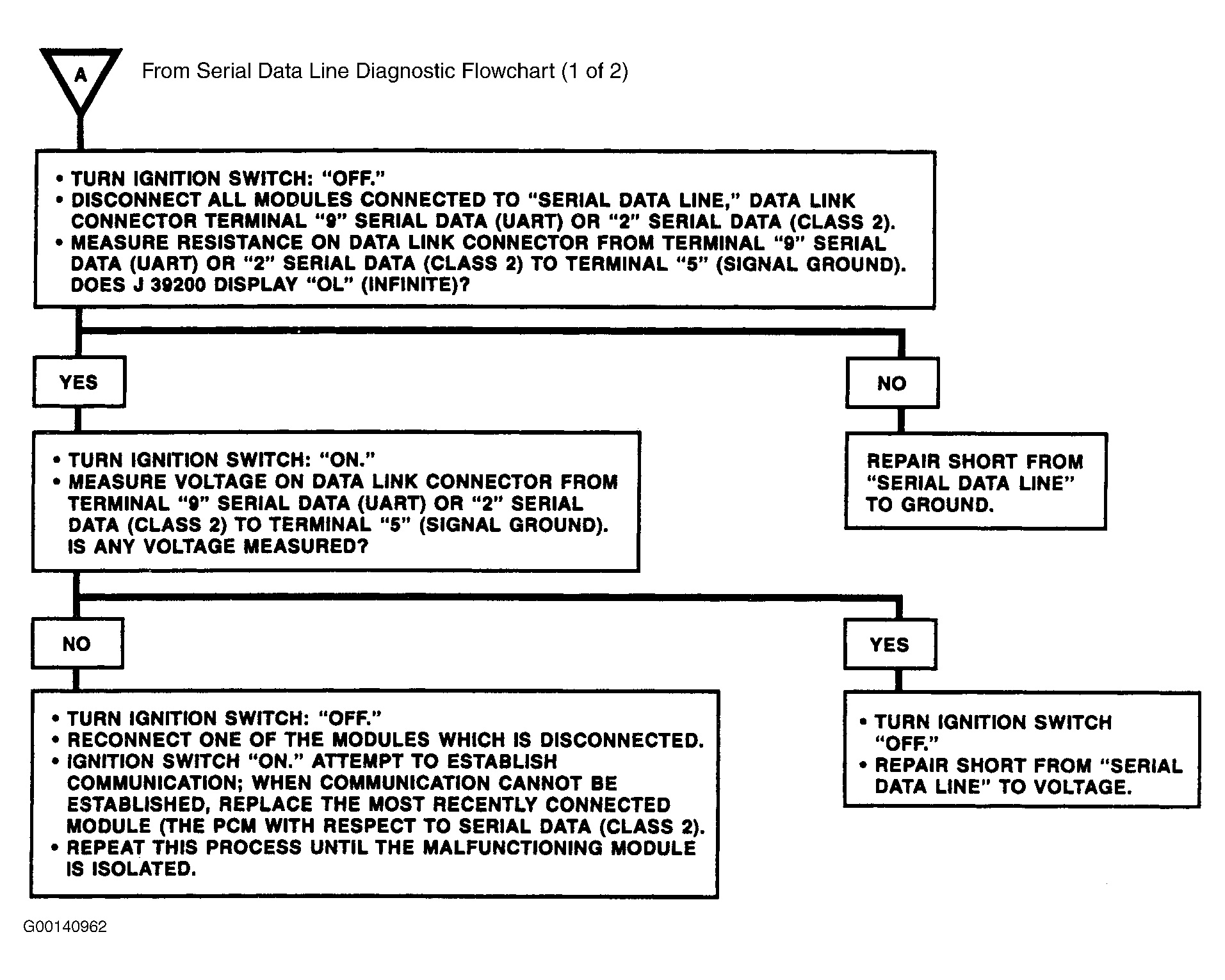

Fig 2: Serial Data Line Diagnostic Flowchart (2 Of 2)
G00140962Courtesy of GENERAL MOTORS CORP.
