Component Locations

Component	Location

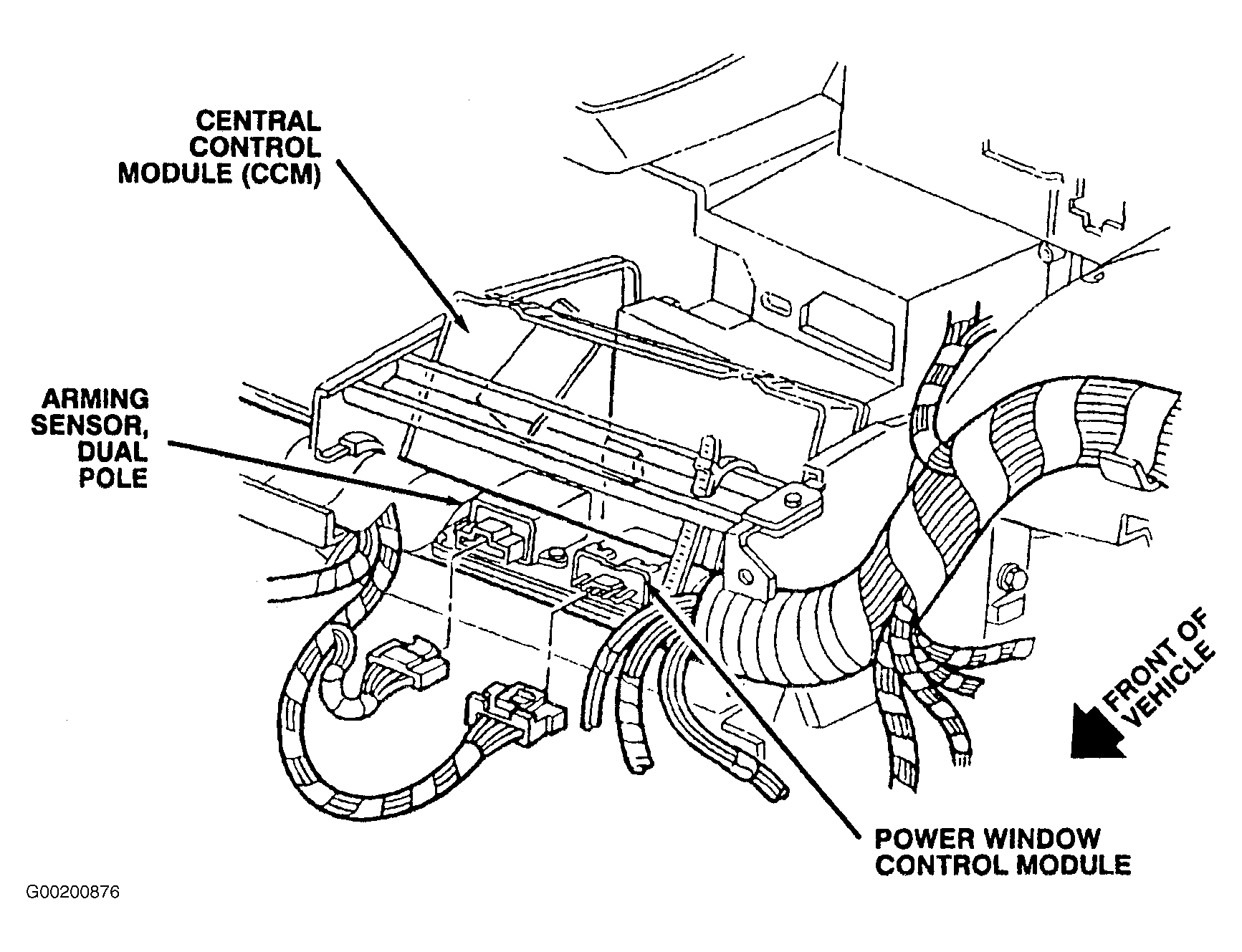

Central Control Module (CCM)	Behind center I/P, behind radio control head. See Fig 1 .
Data Link Connector (DLC)	Below left side of I/P, right of steering column. See Fig 2 .

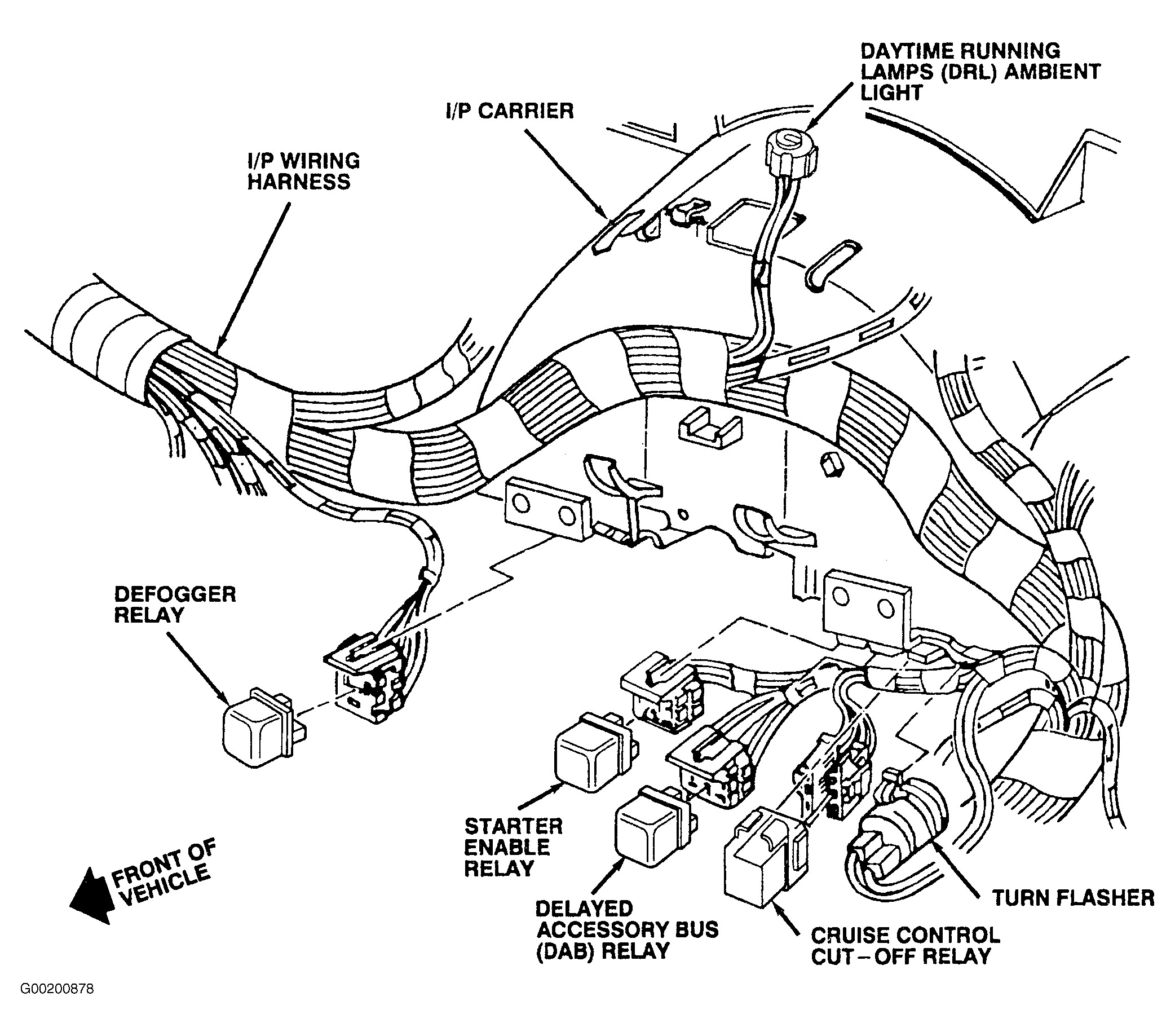

Defogger Relay	Behind left I/P, right of steering column. See Fig 3 .
Delayed Accessory Bus (DAB) Relay	Behind left I/P, left of steering column. See Fig 3 .

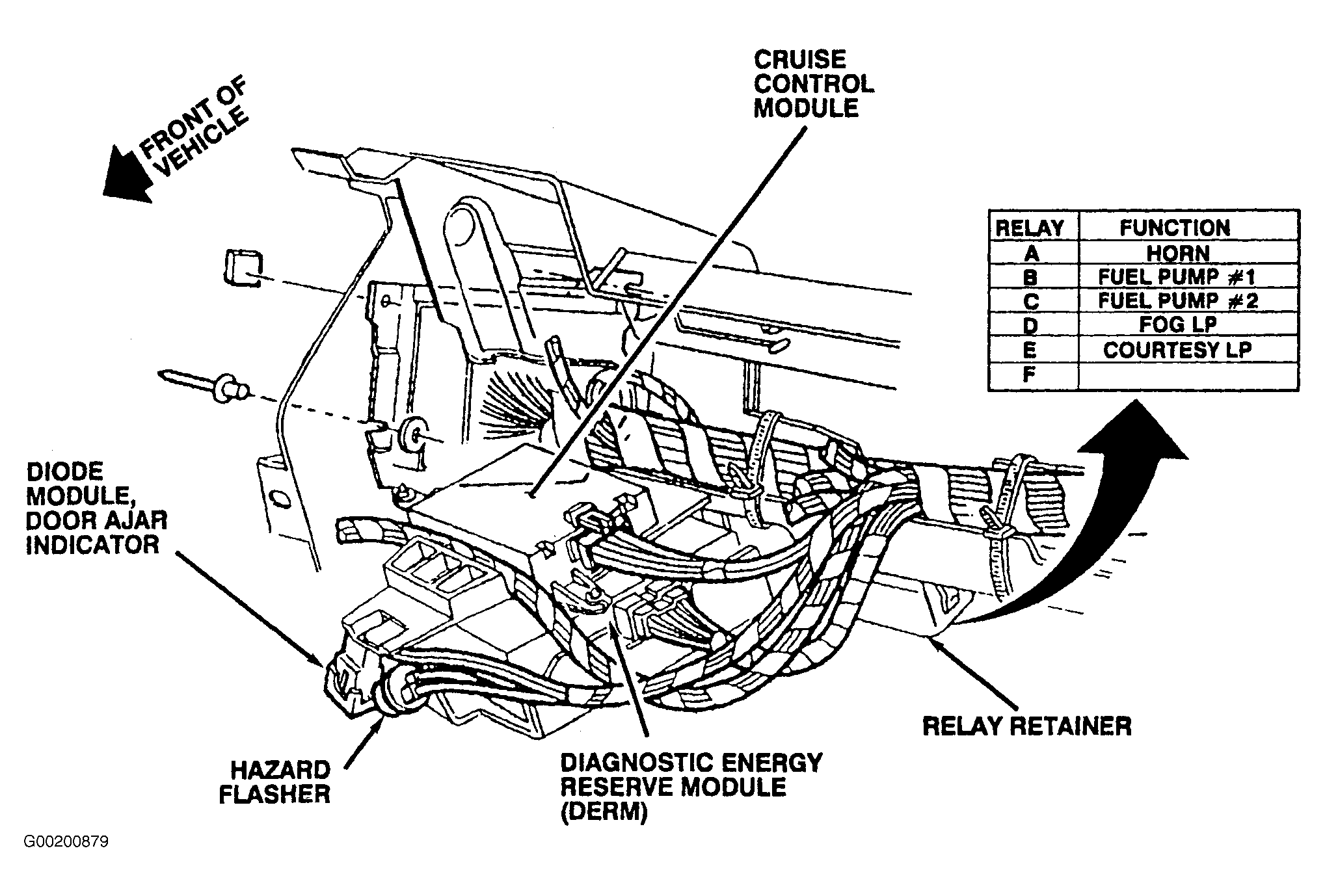

Diagnostic Energy Reserve Module (DERM)	Behind right I/P, left of I/P fuse block. See Fig 4 .

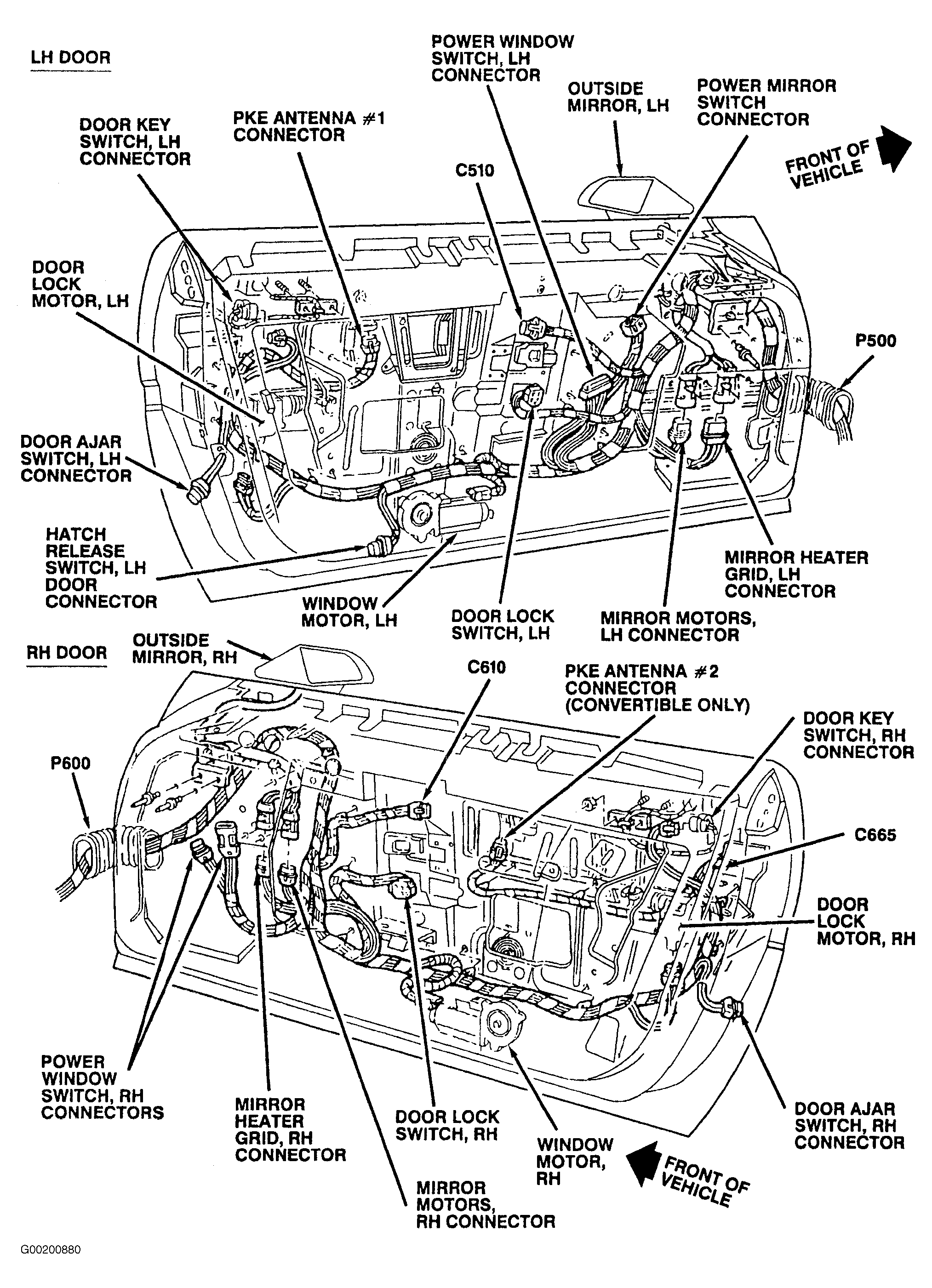

Door Ajar Switch, Left	In rear of door near latch. See Fig 5 .
Door Ajar Switch, Right	In rear of door near latch. See Fig 5 .
Door Key Switch, Left	In rear of door attachment to lock cylinder housing. See Fig 5 .
Door Key Switch, Right	In rear of door attached to lock cylinder housing. See Fig 5 .

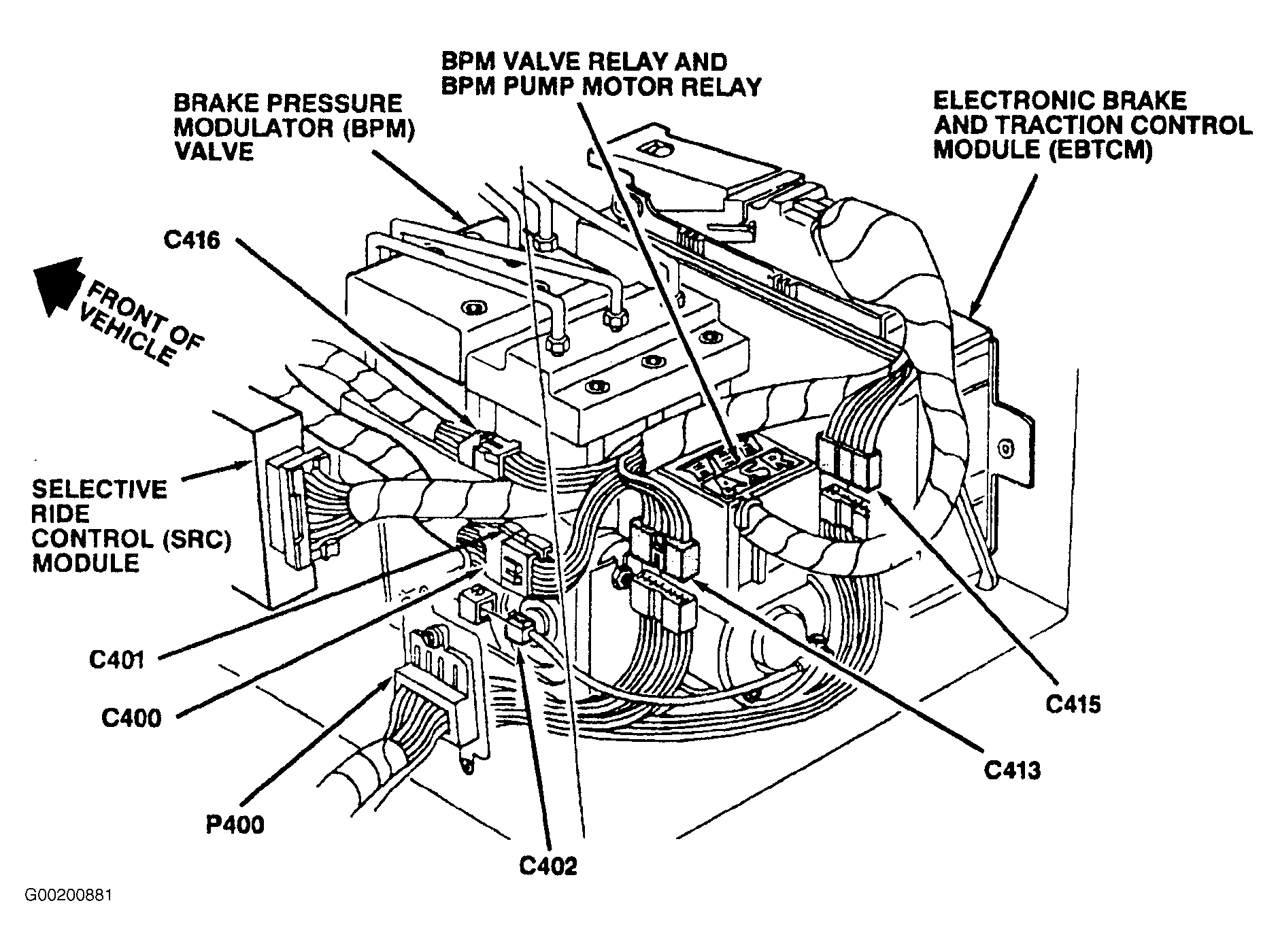

Electronic Brake & Traction Control Module (EBTCM)	Left cargo compartment in storage compartment. See Fig 6 .

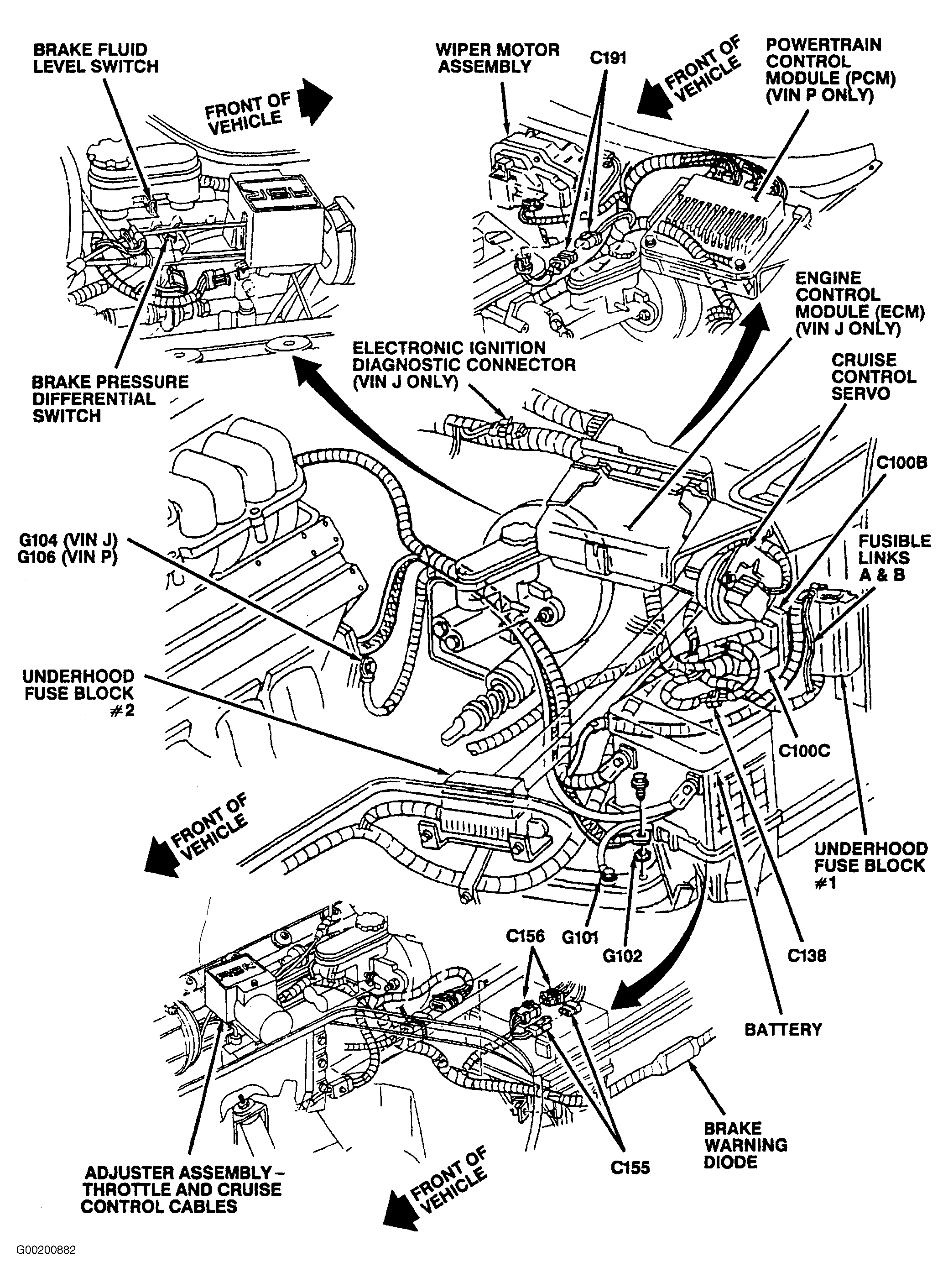

Engine Control Module (ECM) (VIN J)	Left rear engine compartment above battery. See Fig 7 .
Fuel Gage Sender	Rear of vehicle in fuel tank. part of fuel tank unit.
Fuel Tank Unit	Rear of vehicle attached to top of fuel tank.

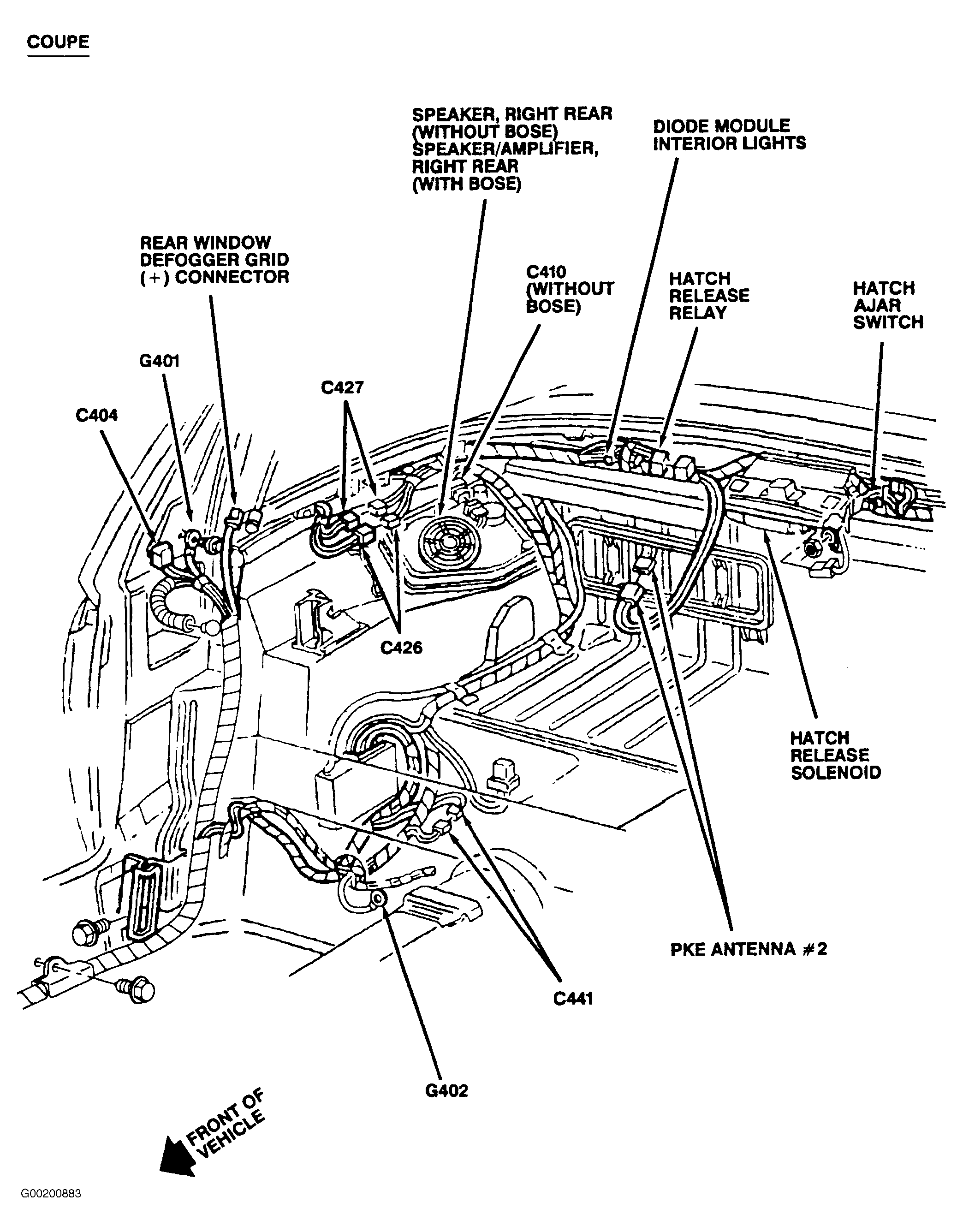

Hatch Ajar Switch (Coupe)	Rear of cargo compartment, near latch assembly. See Fig 8 .

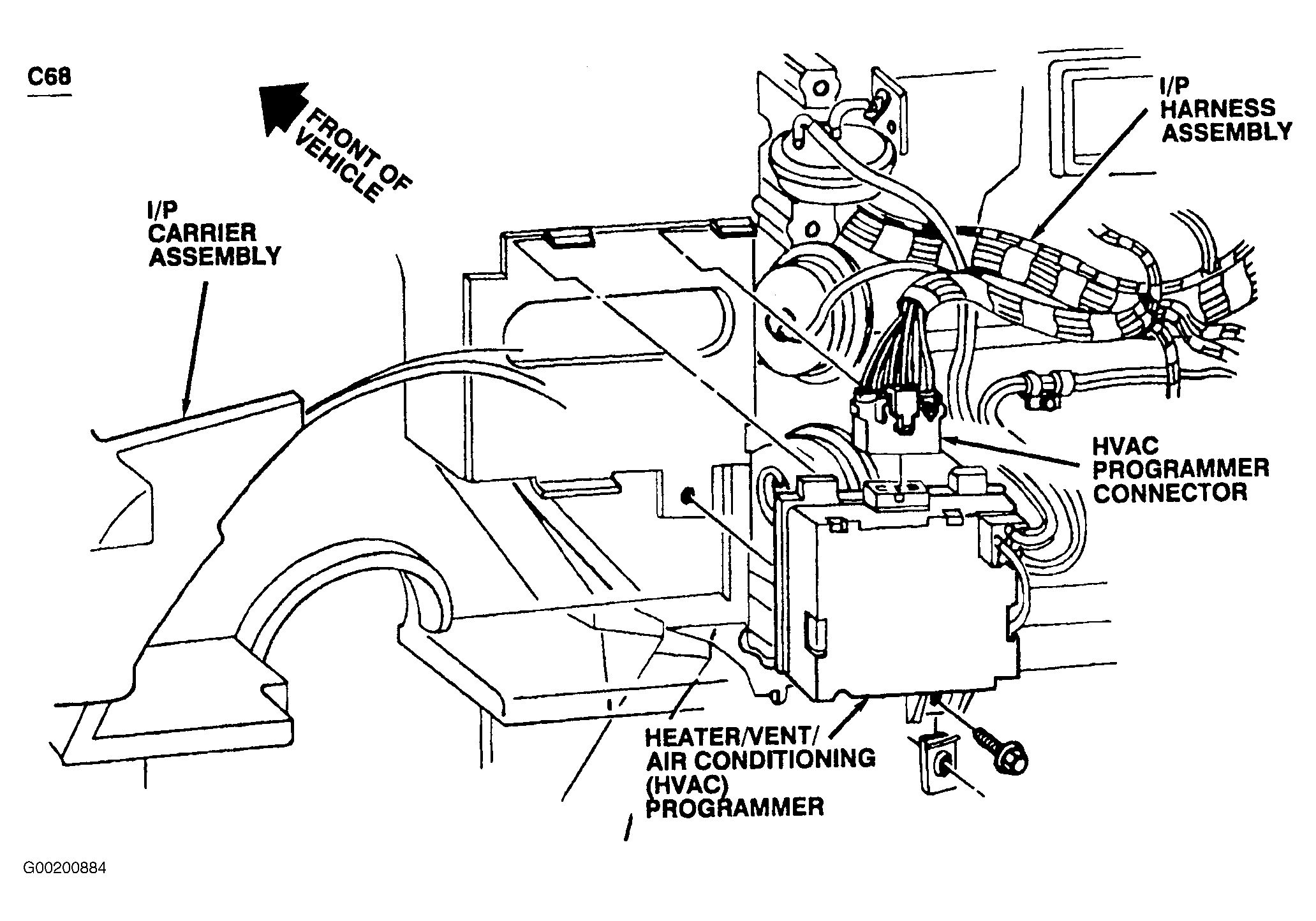

Heater/Vent/Air Conditioning (HVAC) Programmer (With C68 Only)	Below left I/P, right of steering column on bulkhead. See Fig 9 .
Horn Relay	Bottom right side of I/P, accessible with door open. See Fig 4 .
I/P Fuse Block	Far side of I/P, accessible with door open. See Fig 4 .
Ignition Lock Cylinder	Right side of steering column.
Key Resistor Pellet	In ignition key.

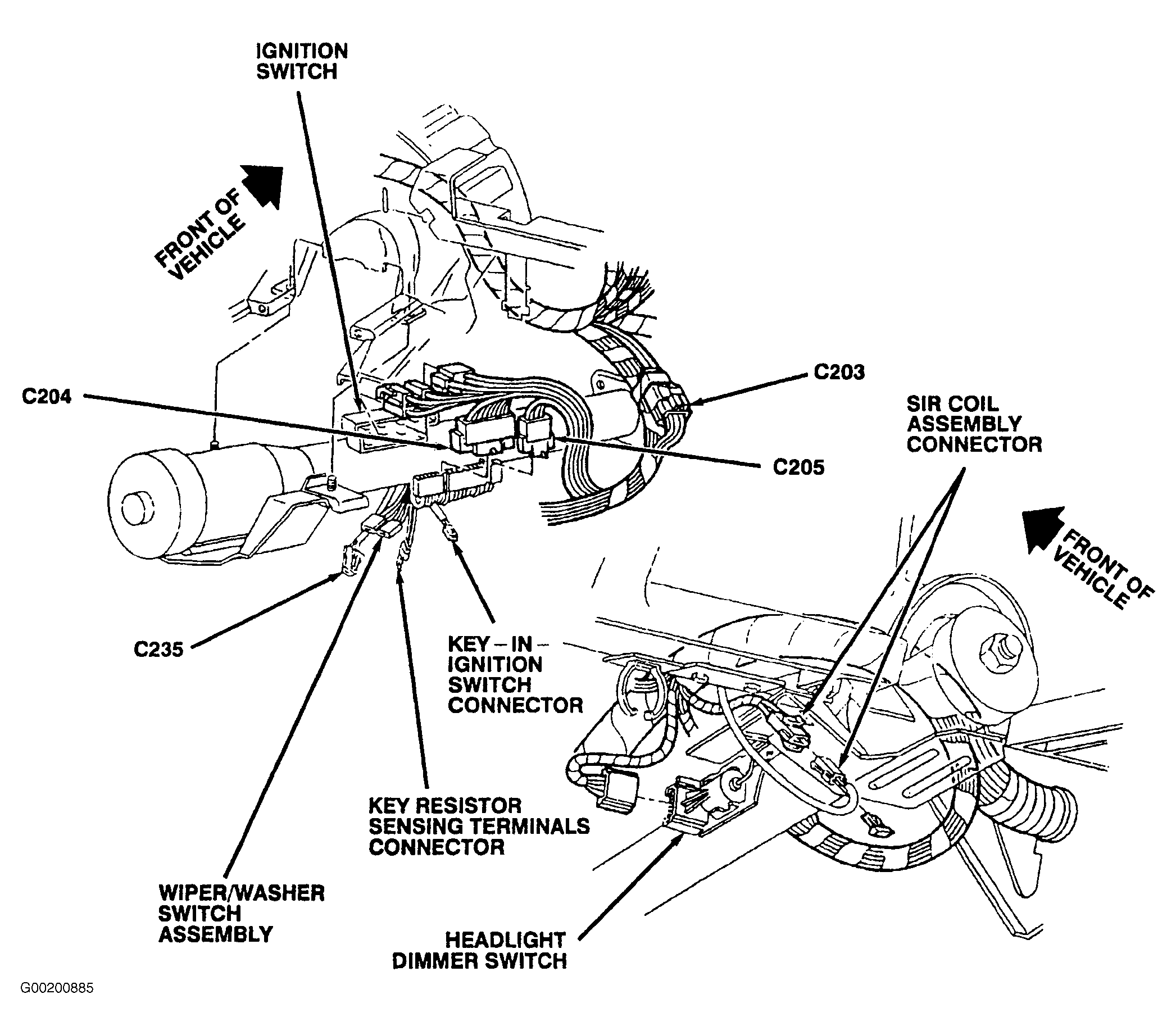

Key Resistor Sensing Terminals	Right side of steering column, in ignition lock cylinder. See Fig 10 .
Key-In-Ignition Switch	Right side of steering column, on ignition lock cylinder. See Fig 10 .

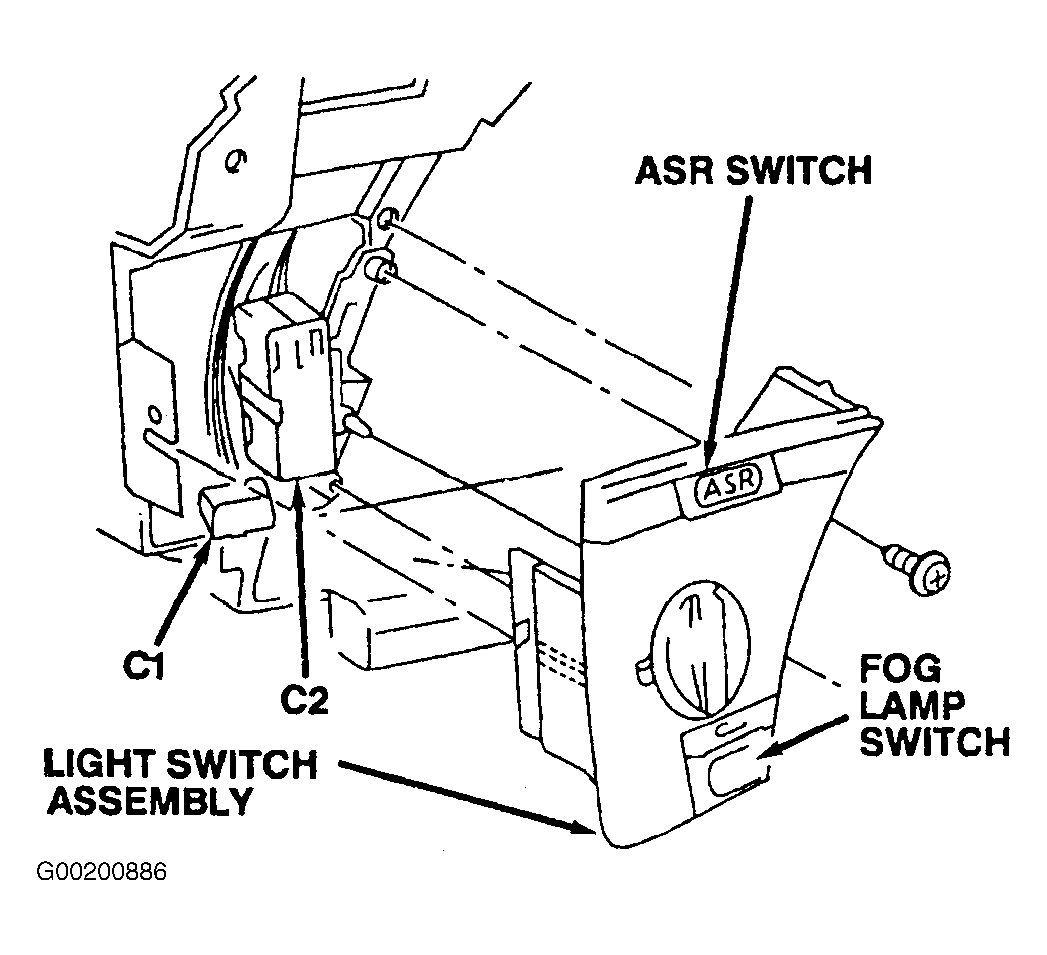

Light Switch	Left side of I/P, left of instrument cluster. See Fig 11 .

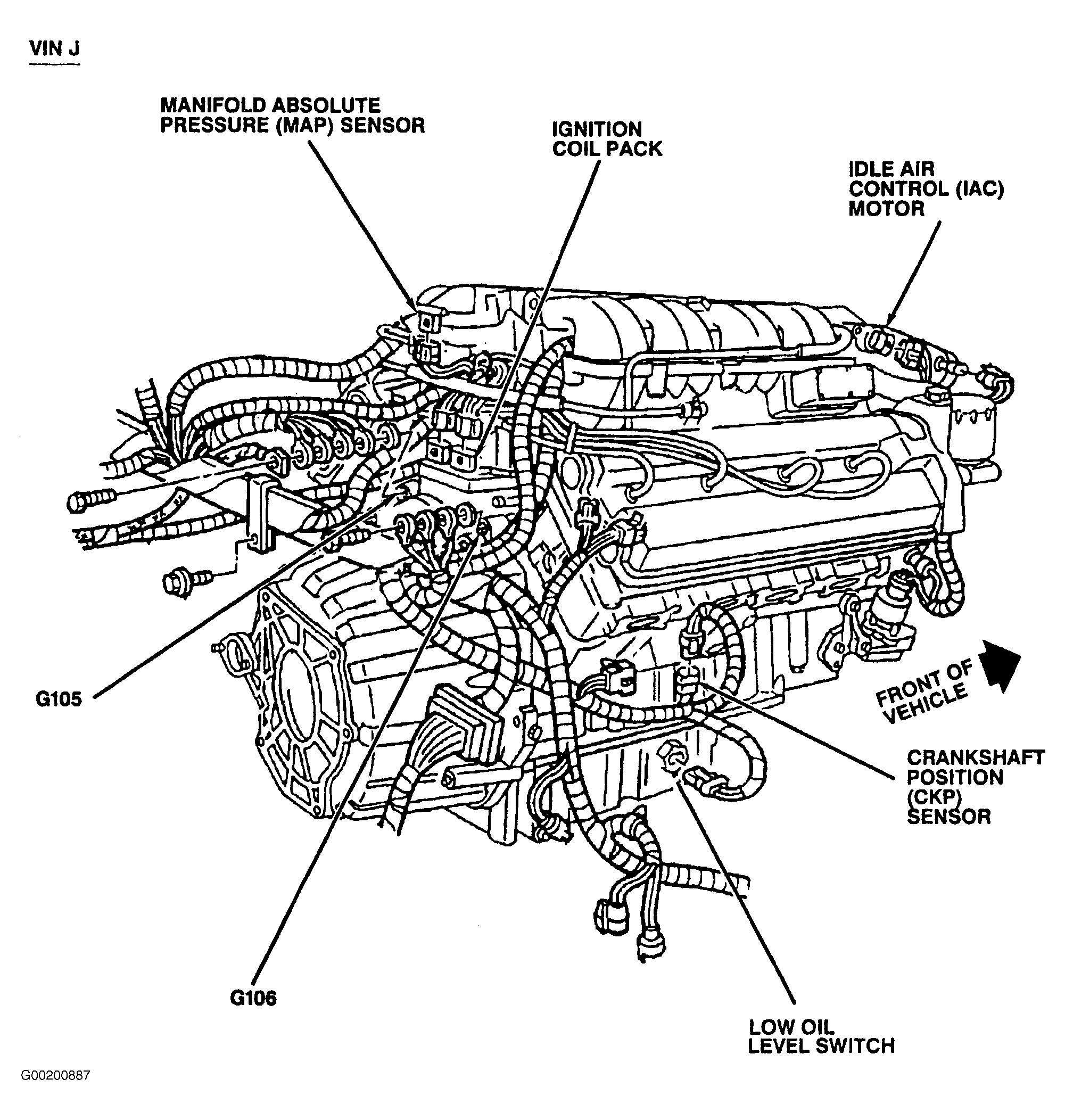

Low Oil Level Switch (VIN J)	Lower right side of engine in oil pan. See Fig 12 .

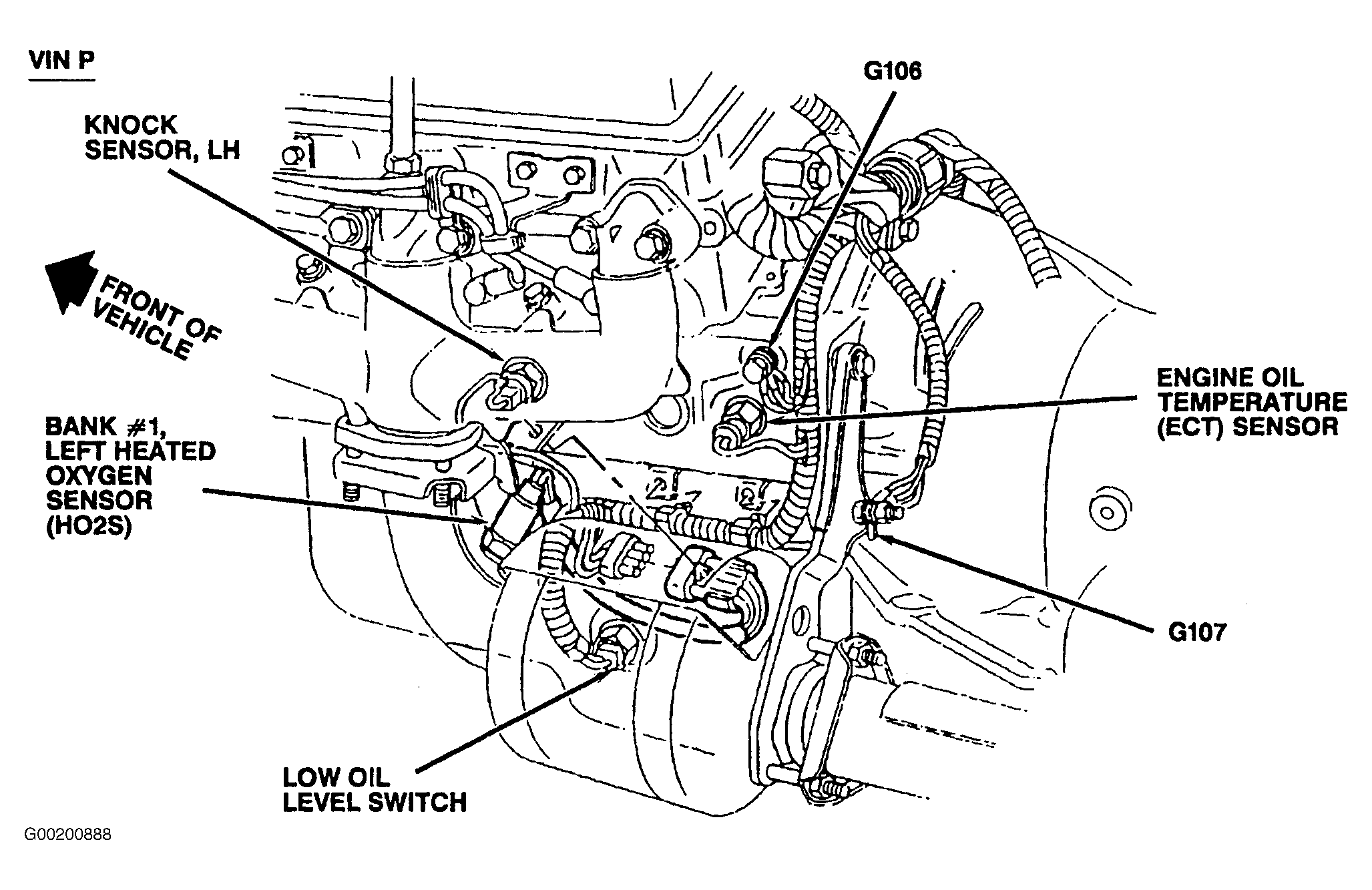

Low Oil Level Switch (VIN P)	Lower left rear of engine, forward of oil filter in oil pan. See Fig 13 .

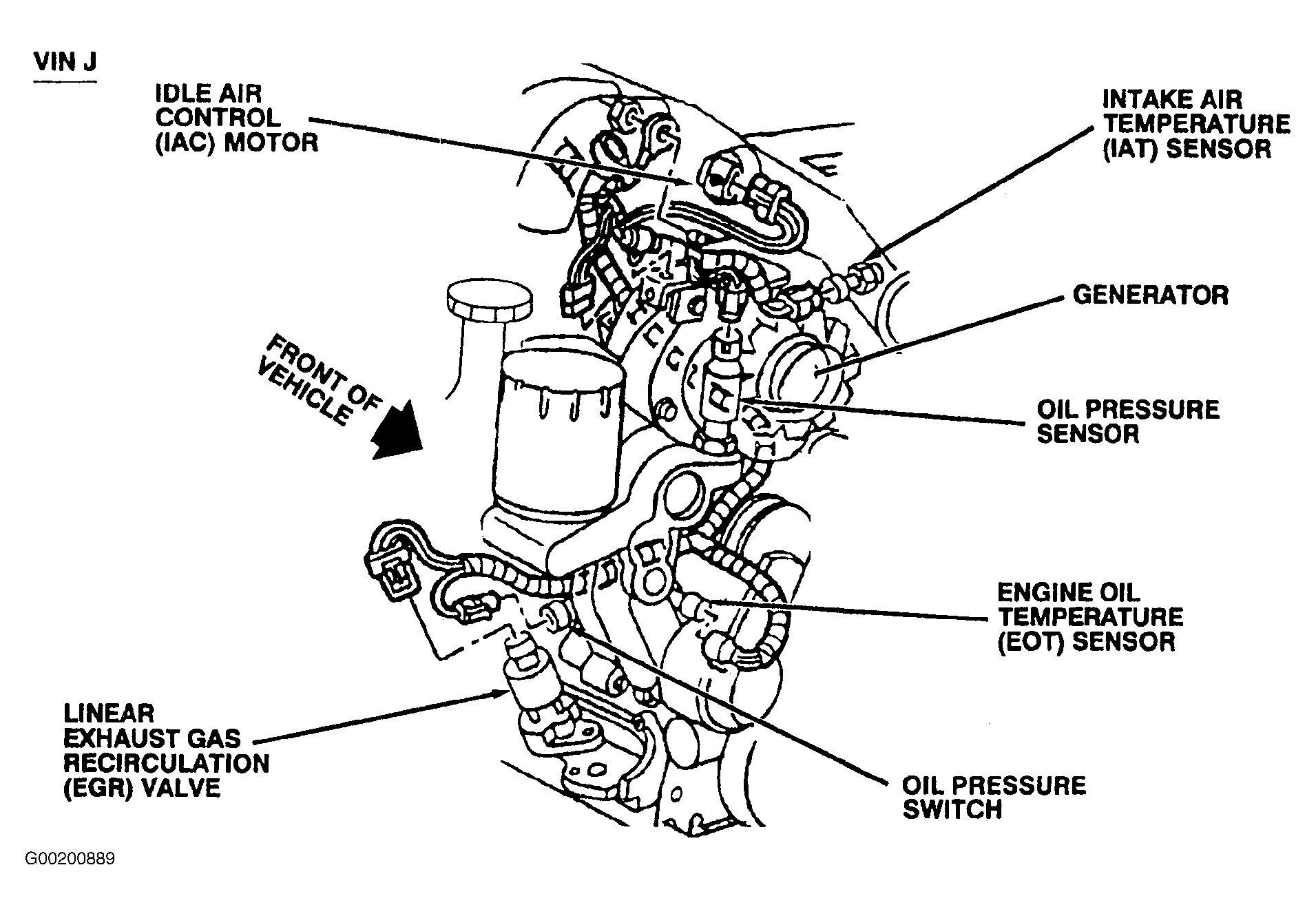

Oil Pressure Switch (VIN J)	Lower right front of engine below oil filter. See Fig 14 .

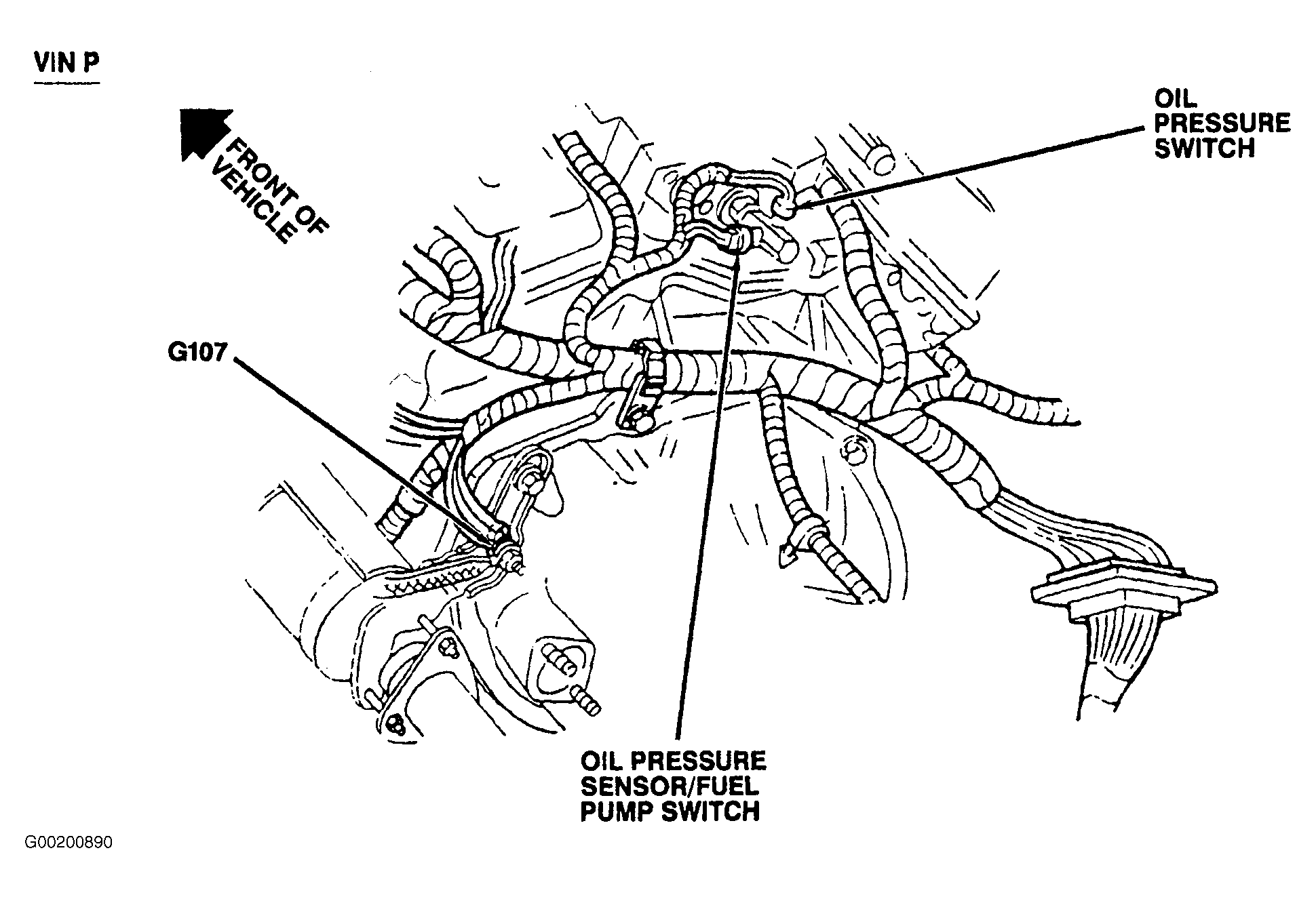

Oil Pressure Switch (VIN P)	Top rear of engine. See Fig 15 .

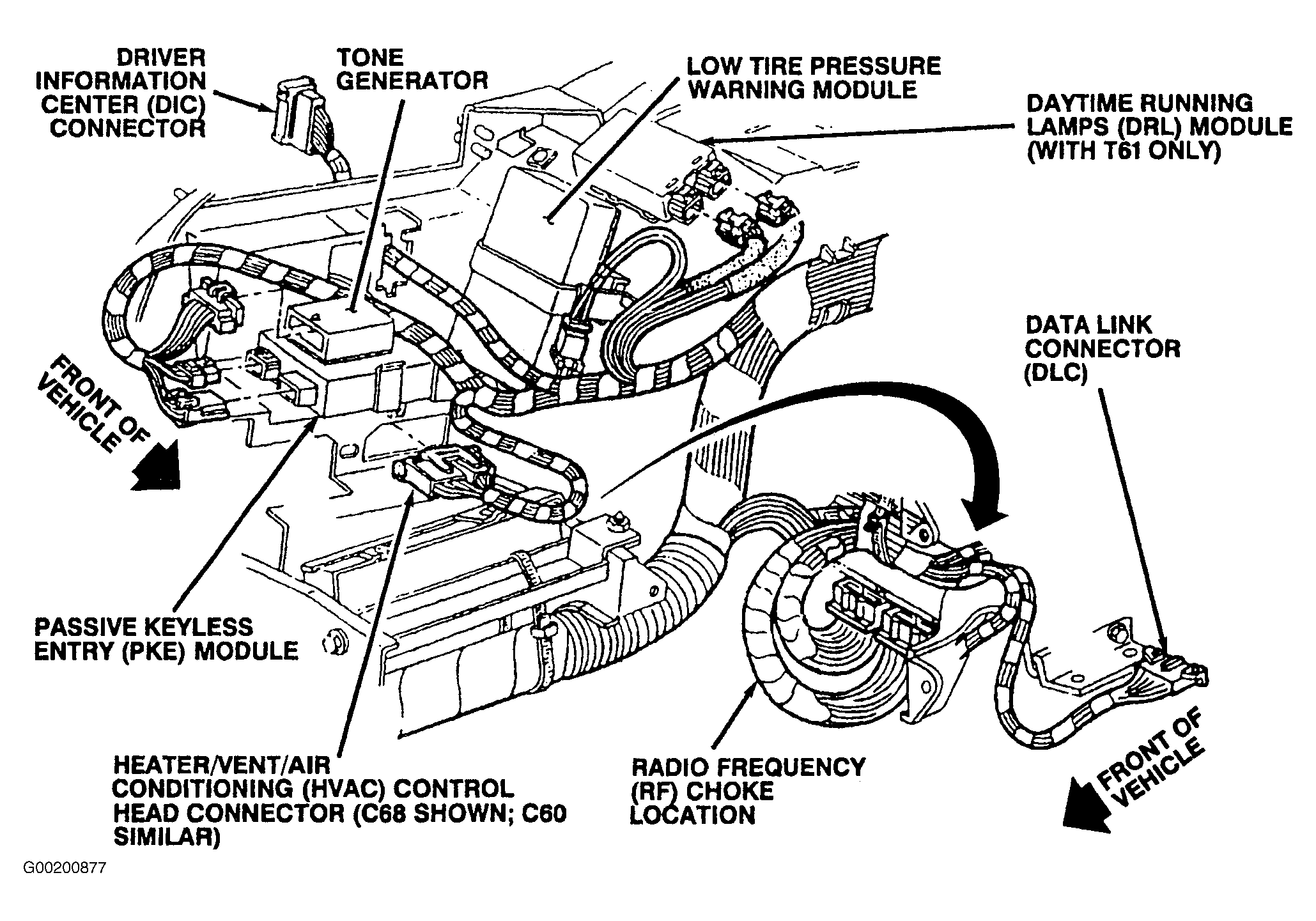

Passive Keyless Entry (PKE) Module	Behind center I/P, behind driver information center (DIC). See Fig 2 .
Powertrain Control Module (PCM) (VIN P)	Left rear engine compartment above battery. See Fig 7 .
Radio Frequency (RF) Choke	Behind center I/P, taped in I/P harness, in central control module (CCM) conn C2 branch. See Fig 2 .

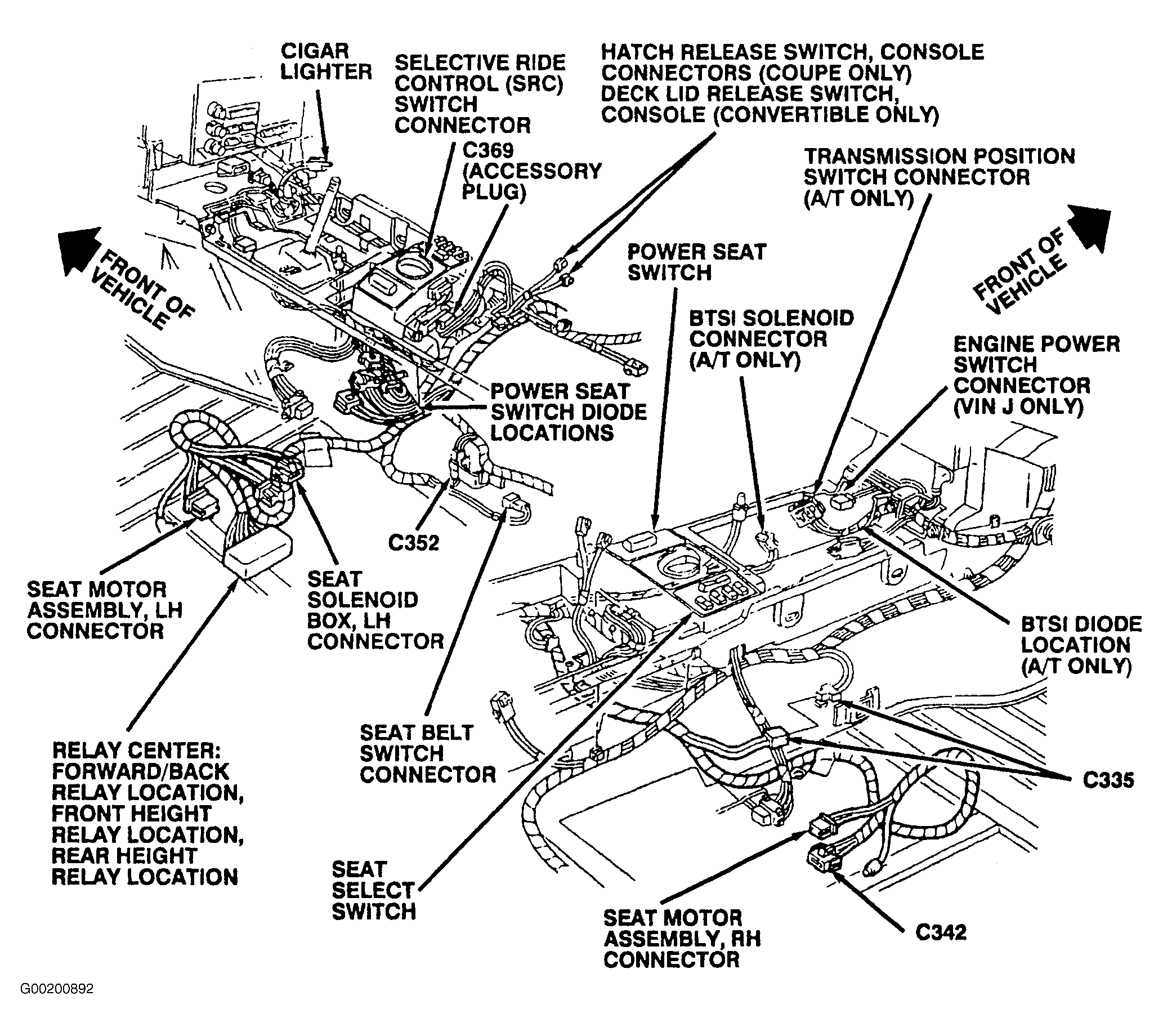

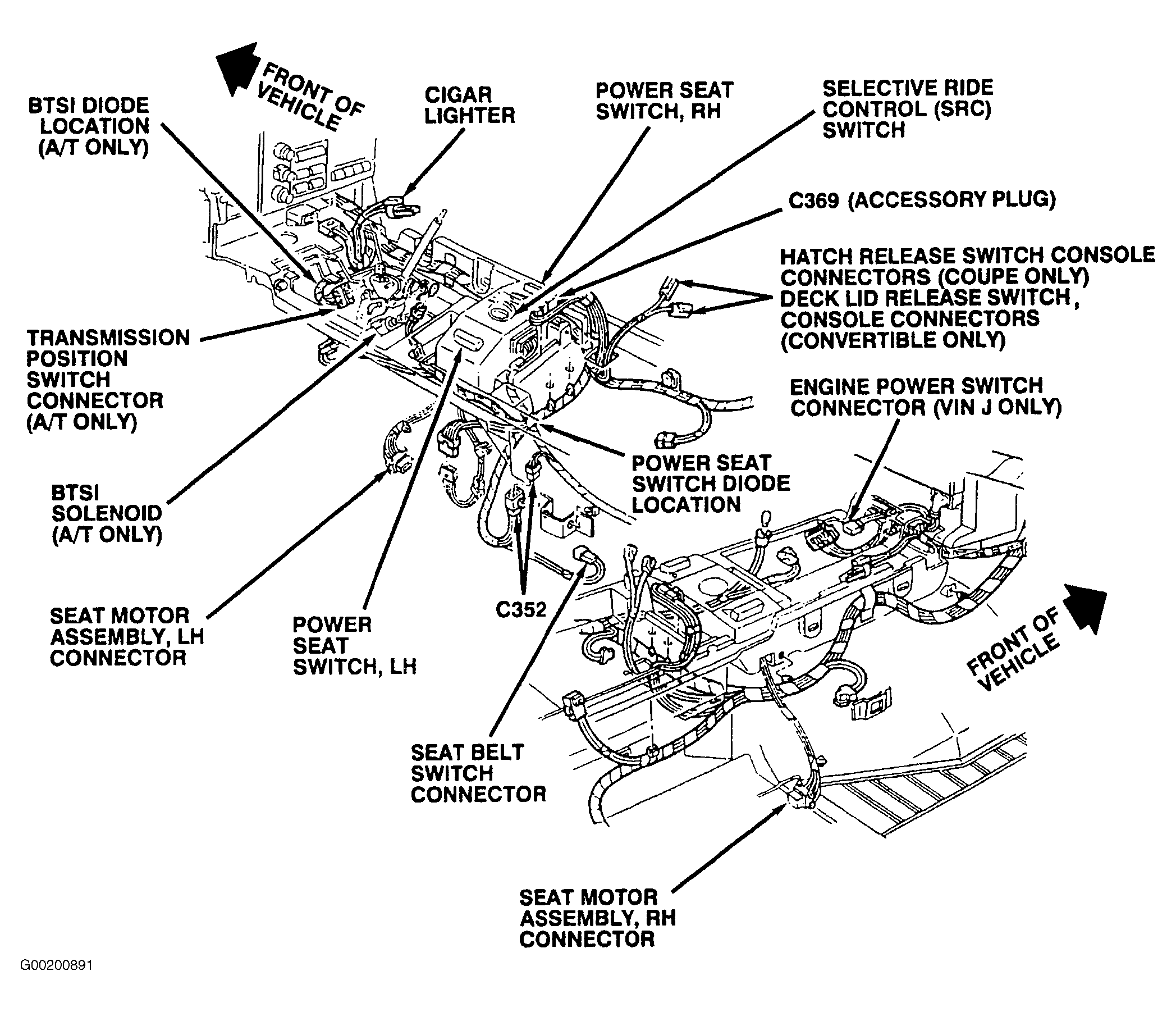

Seat Belt Switch	Left passenger compartment, part of driver seat belt buckle assembly. See Fig 16 and Fig 17 .
Starter Enable Relay	Behind left I/P, left of steering column. See Fig 3 .
Tone Generator	Behind Center I/P, behind driver information center. See Fig 2 .
C204 (11 Cavities)	I/P harness to turn/hazard switch assembly, below left I/P on steering column near ignition switch conns. See Fig 10 .
C209 (23 Cavities)	I/P harness to front body harness, behind right I/P near I/P fuse block. See Fig 4 .
C210 (10 Cavities)	I/P harness to front body harness, behind right I/P near I/P fuse block. See Fig 4 .
C237 (23 Cavities)	I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 .
C238 (10 Cavities)	I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 .
C239 (10 Cavities)	I/P harness to engine harness, behind right I/P near I/P fuse block. See Fig 4 .
C400 (10 Cavities)	Front body harness to ABS harness, left cargo compartment in storage compartment. See Fig 6 .

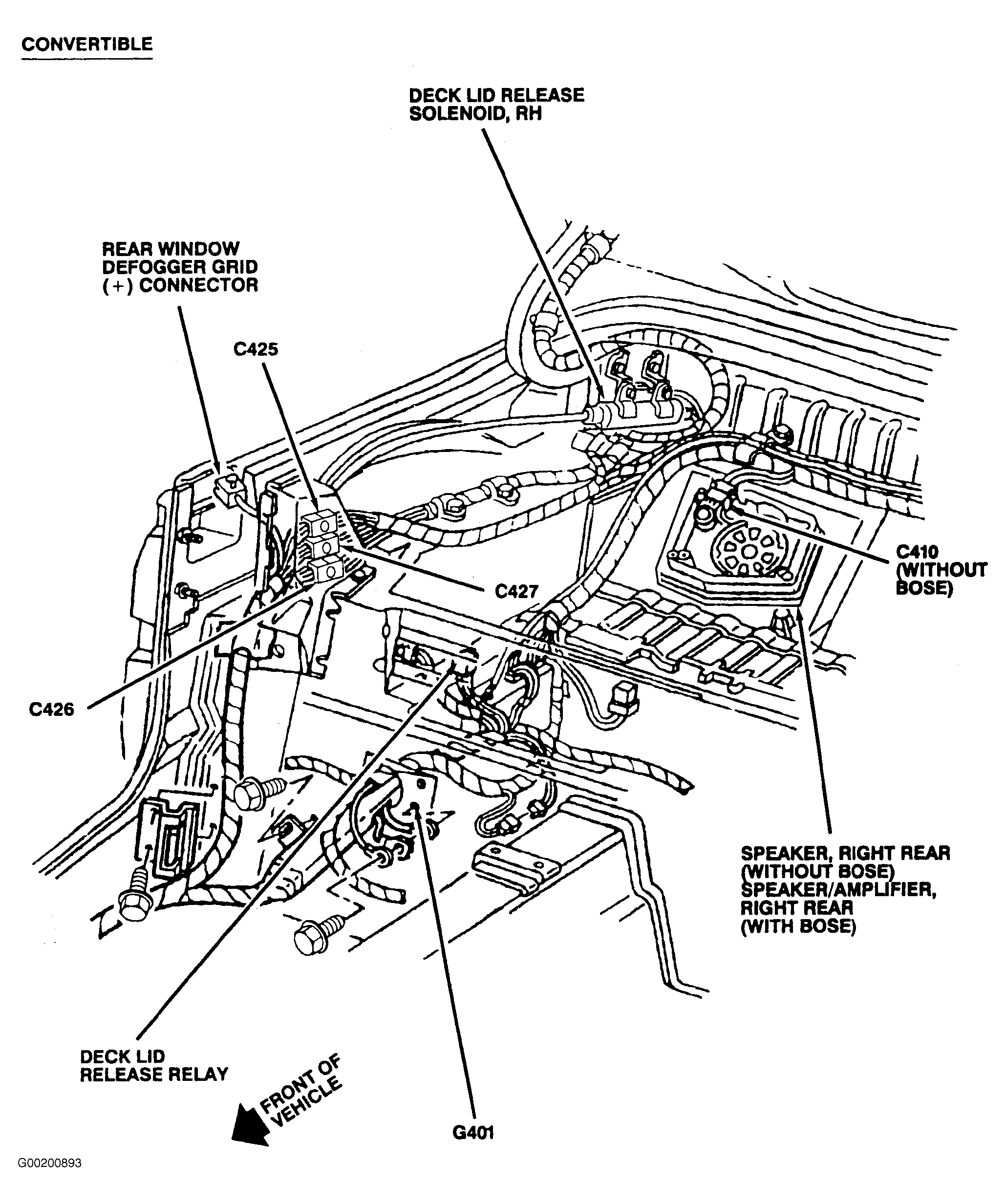

C426 (10 Cavities) (Convertible)	Front body to rear body harness, right cargo compartment above wheelhouse. See Fig 18 .
C426 (10 Cavities) (Coupe)	Front body harness to rear body harness, right cargo compartment above wheelhouse. See Fig 8 .

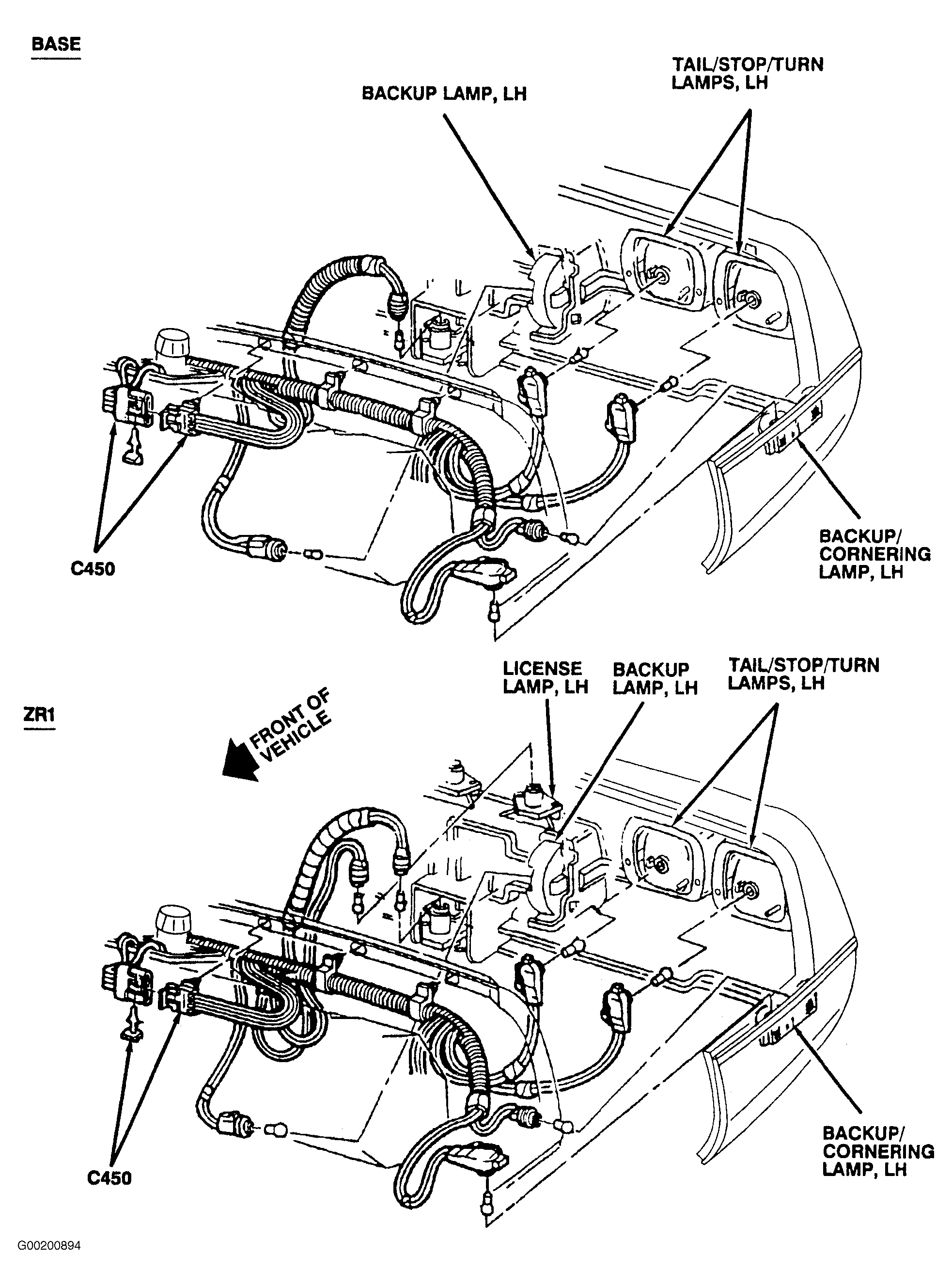

C450 (4 Cavities)	Rear body farness to fuel tank unit jumper harness, rear of cargo compartment rear of fuel tank. See Fig 19 .
G105 (VIN J)	Left rear of engine on bell housing. See Fig 12 .
G106 (VIN J)	Right rear of engine on bell housing. See Fig 12 .
G106 (VIN P)	Left rear of engine near oil filter. See Fig 7 .

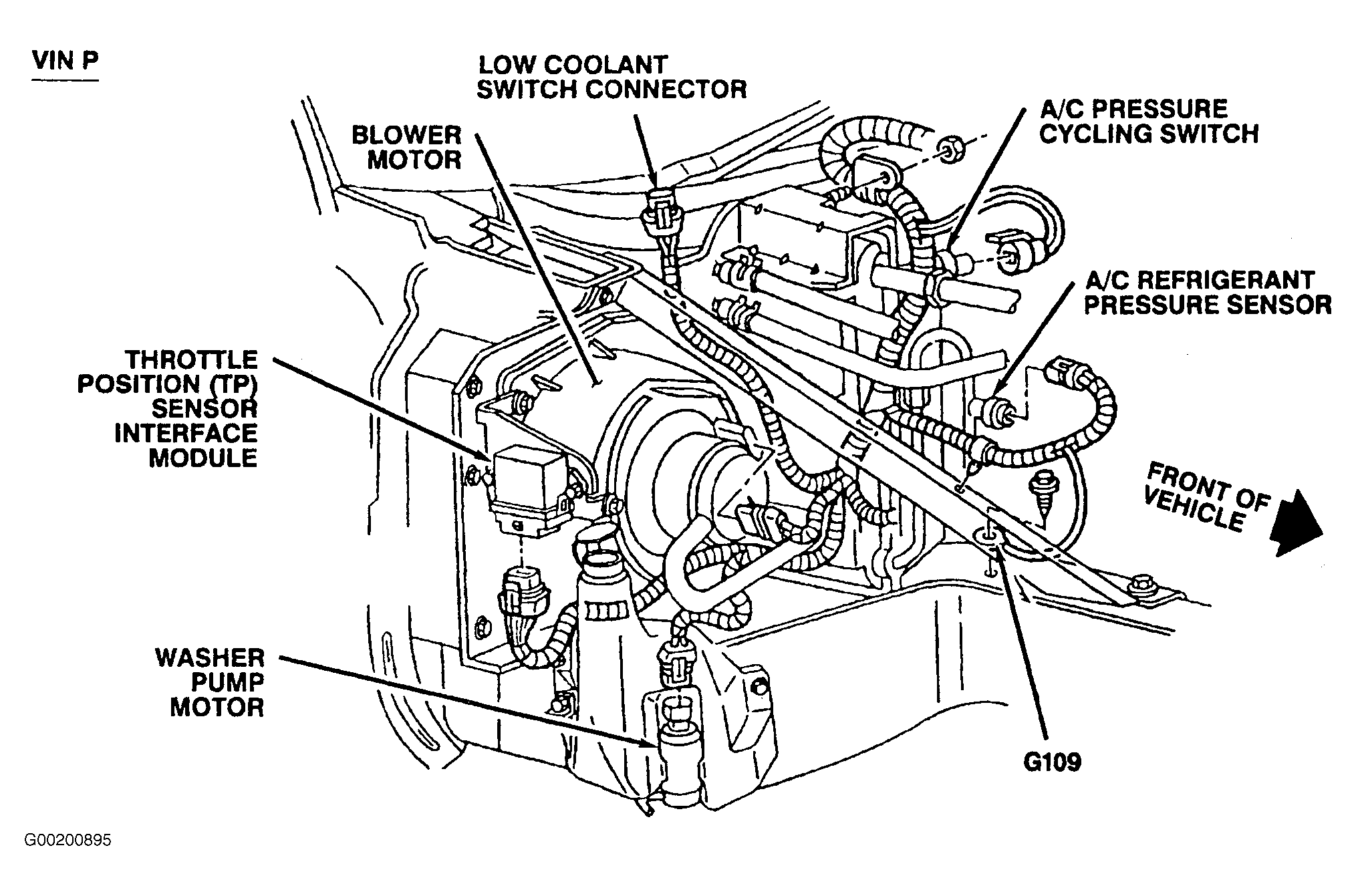

G109 (VIN P)	Right rear of engine compartment, near wheelhouse on frame rail. See Fig 20 .
G401 (Convertible)	Right cargo compartment behind passenger seat. See Fig 18 .
G401 (Coupe)	Right cargo compartment on halo near top of seat. See Fig 8 .
S130 (VIN P)	Engine harness, right rear engine compartment in front of blower motor, about 8 cm from blower motor conn breakout.
S148 (VIN J)	Engine harness, rear of engine about 4 cm right of G105 breakout.
S201	I/P harness, behind left I/P about 4 cm. left of C100A.
S212	I/P harness, behind left I/P about 5.5 cm. left of driver information center (DIC) conn breakout.
S213	I/P harness, behind left I/P about 9.5 cm left of driver information center (DIC) conn breakout.
S214	I/P harness, behind center I/P about 19.5 cm from cigar lighter conn breakout.
S217	I/P harness, behind center I/P about 7.5 cm right of data link connector (DLC) breakout.
S220	I/P harness, behind center I/P in central control module (CCM) conn C1 branch, about 2 cm. from base of conn breakout.
S221	I/P harness, behind center I/P about 11.5 cm right of data link connector (DLC) breakout.
