Component Locations

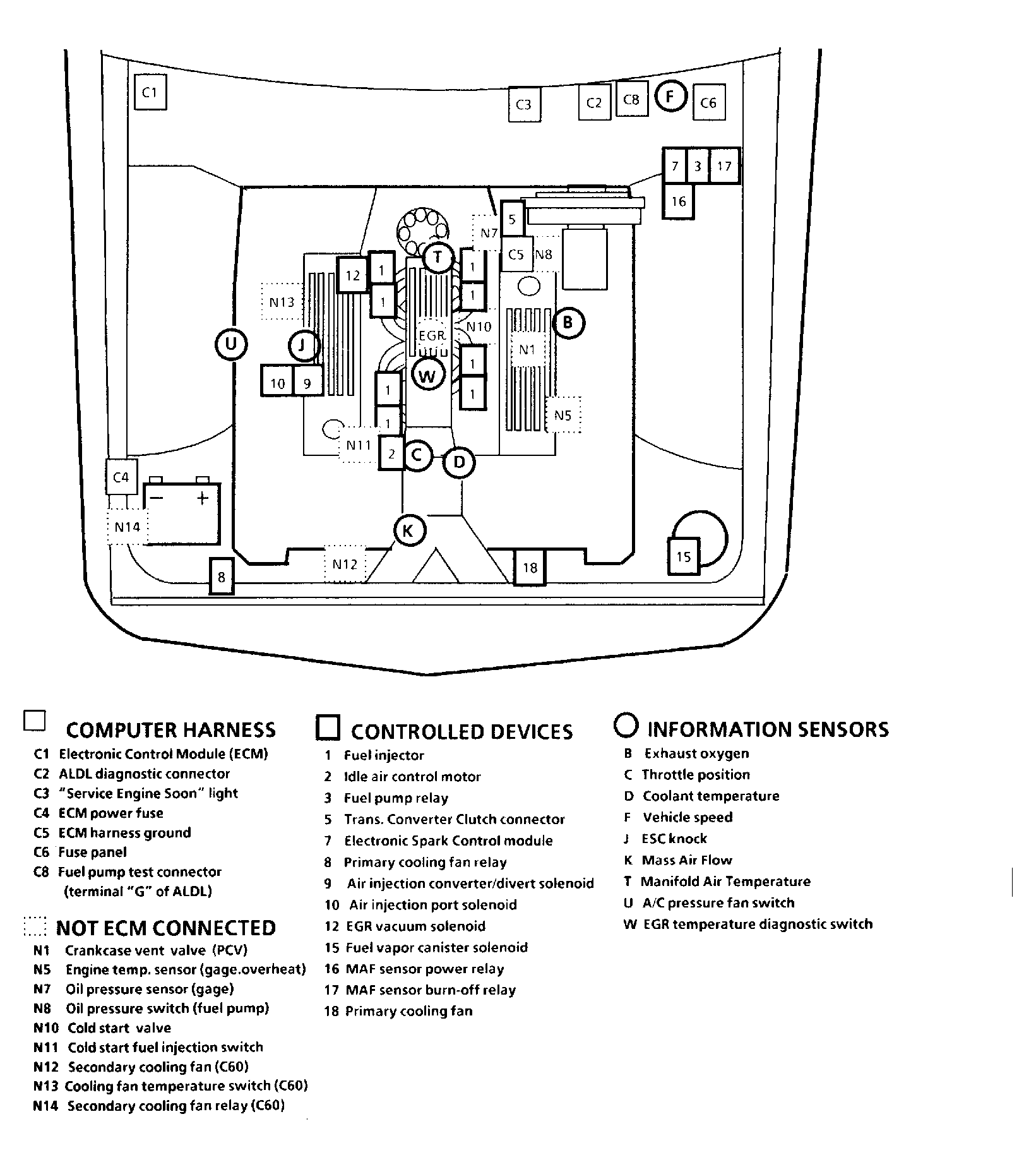

Fig 1: Component Locations (Camaro)

G56767

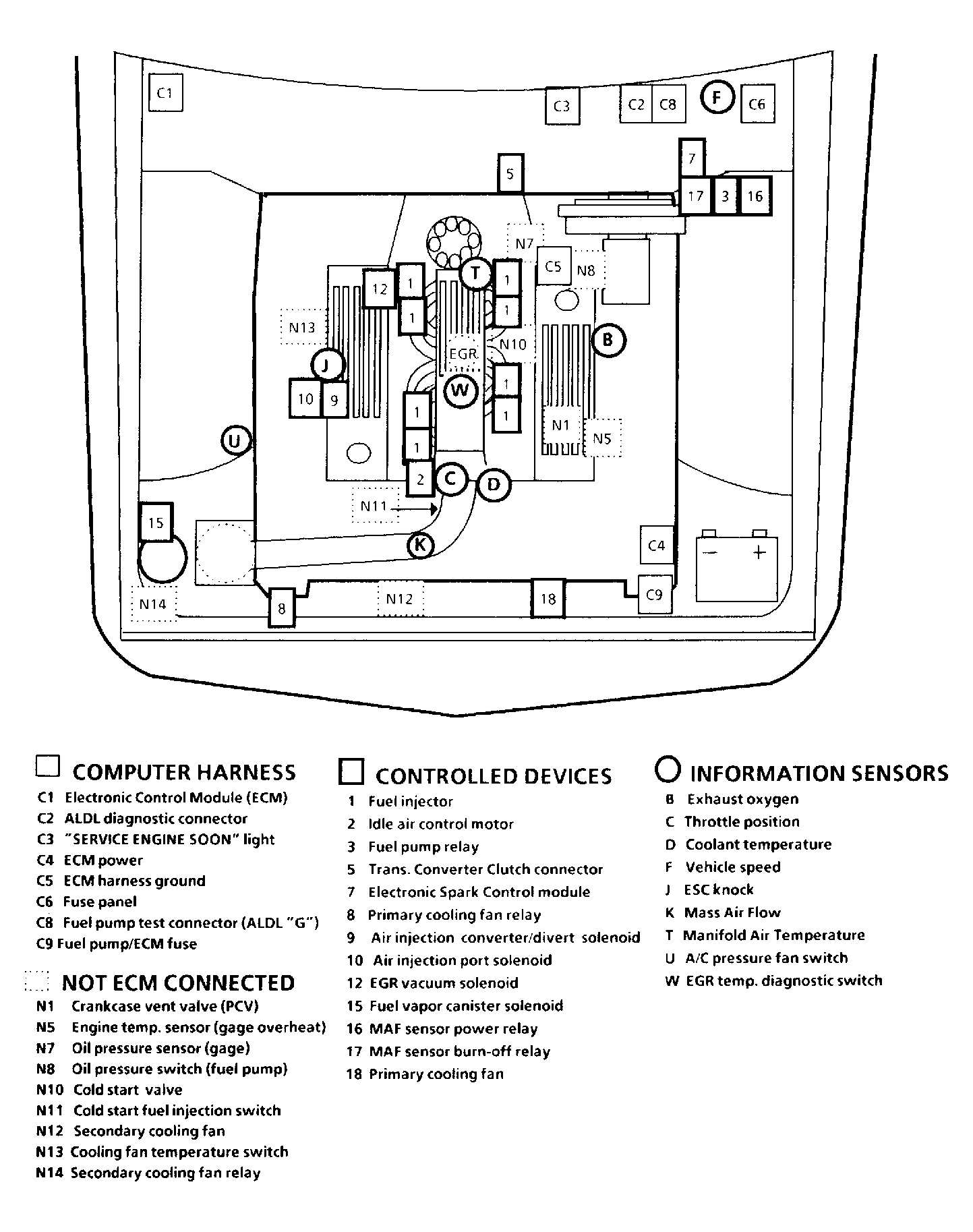

Fig 2: Component Locations (Firebird)

G57961
