Installation Procedure

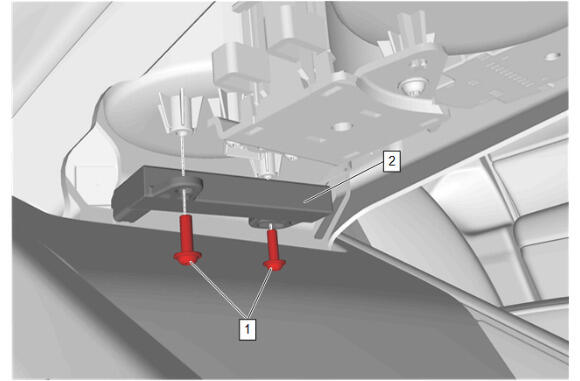

  1. GM5932532Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Antenna (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
  4. GM5990028Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel (1) - Install

  5. GM5989248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Front Floor Console Rear Trim Lower Panel (2) - Install
  7. Front Floor Console Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
  8. GM5989245Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  9. GM5989197Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique - Right Side (1) - Install

  10. GM5989195Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique - Left Side (1) - Install
