Fastener Specifications

Fig 1: Exploded View Of Front Floor Console Component Fasteners - Lower

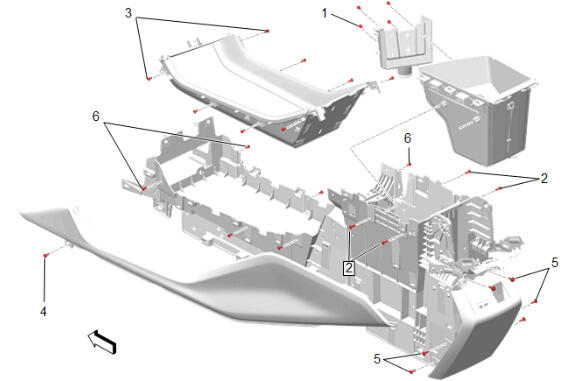

GM6002572Courtesy of GENERAL MOTORS COMPANY
Front Floor Console - Lower

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Auxiliary Armrest Bolt [4x] - - 0.9 N.m (8 lb in) Front Floor Console Accessory Bracket Replacement
2 Front Floor Console Compartment Bolt [4x] - - 0.9 N.m (8 lb in) Front Floor Console Compartment Replacement
3 Front Floor Console Cover Bolt [8x] - - 2.5 N.m (22 lb in) Front Floor Console Applique Replacement - Right Side
Front Floor Console Applique Replacement - Left Side
4 Front Floor Console Extension Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Upper Panel Replacement - Left Side
5 Front Floor Console Rear Cover Bolt [6x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Lower Panel Replacement
6 Front Floor Console Storage Tray Bolt [6x] - - 0.5 N.m (4 lb in) Front Floor Console Front Compartment Replacement

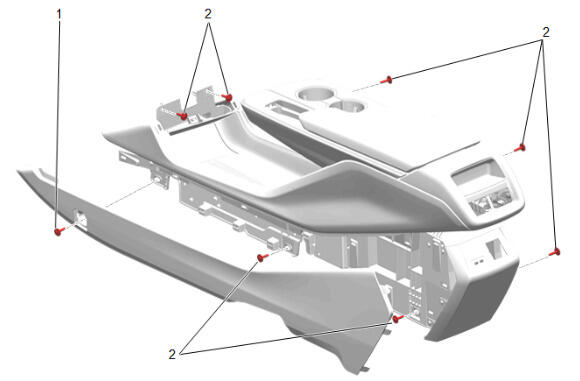

GM6002381Courtesy of GENERAL MOTORS COMPANY
Front Floor Console - Mounting

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Bolt - - 9 N.m (80 lb in) Front Floor Console Extension Panel Replacement - Left Side
2 Front Floor Console Retainer Bolt [7x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

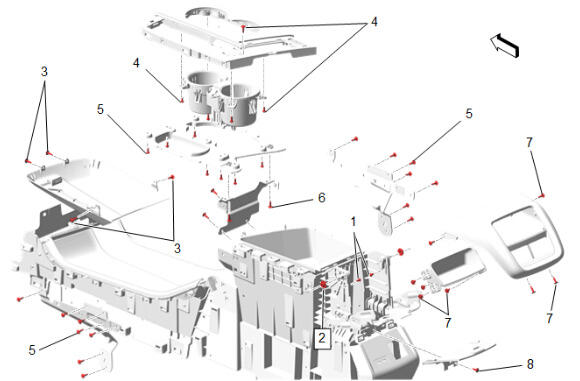

Fig 2: Exploded View Of Front Floor Console Component Fasteners - Upper
GM6002795Courtesy of GENERAL MOTORS COMPANY
Front Floor Console - Upper

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Bolt [2x] - - 1.5 N.m (13 lb in) Front Floor Console Armrest Replacement
Front Floor Console Armrest Dampener Replacement
2 Front Floor Console Armrest Nut [2x] - - 3 N.m (27 lb in) Front Floor Console Armrest Replacement
Front Floor Console Armrest Dampener Replacement
3 Front Floor Console Cover Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Upper Panel Replacement
4 Front Floor Console Cup Holder Bolt [5x] - - 1.5 N.m (13 lb in) Front Floor Console Cup Holder Replacement
5 Front Floor Console Front Bracket Bolt [21x] - - 1.5 N.m (13 lb in) Front Floor Console Bracket Replacement
Front Floor Console Intermediate Bracket Replacement - Left Side
Front Floor Console Intermediate Bracket Replacement - Right Side
6 Front Floor Console Intermediate Bracket Bolt [4x] - - 1.5 N.m (13 lb in) Front Floor Console Intermediate Bracket Replacement
7 Front Floor Console Rear Compartment Bolt [8x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement
Front Floor Console Rear Compartment Replacement
8 Front Floor Console Rear Cover Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Lower Panel Replacement

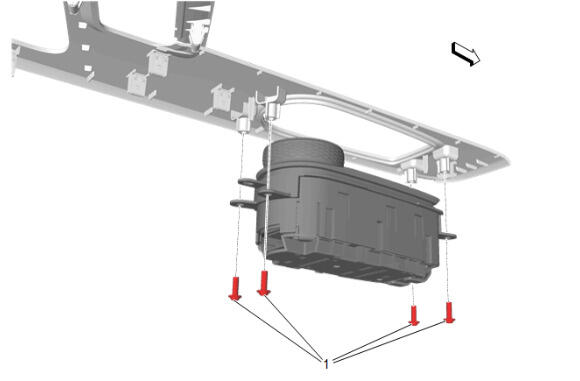

GM6002556Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Accessory Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Intermediate Bracket Bolt [4x] - - 1.5 N.m (13 lb in) Infotainment Control Switch Replacement

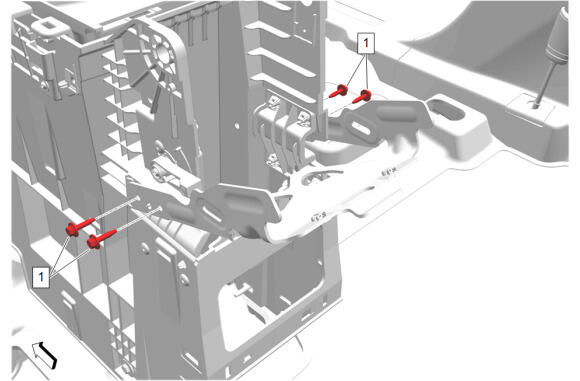

GM6183511Courtesy of GENERAL MOTORS COMPANY
Front Floor Panel Upper Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Rear Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Carrier Replacement

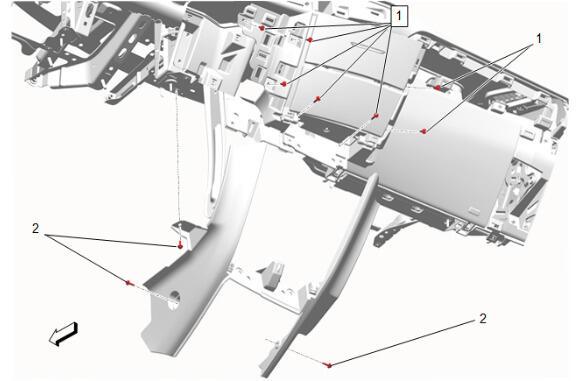

GM6002271Courtesy of GENERAL MOTORS COMPANY
Instrument Panel - Center

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Bolt [7x] - - 2.5 N.m (22 lb in) Instrument Panel Center Compartment Replacement
2 Instrument Panel Trim Pad Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Center Trim Panel Replacement

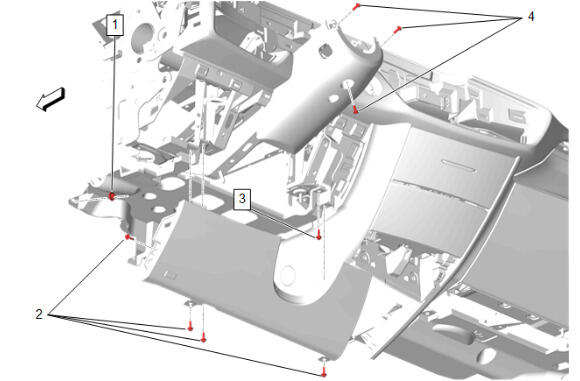

GM6002221Courtesy of GENERAL MOTORS COMPANY
Instrument Panel - Left Side Lower

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Insulator Nut - - 9 N.m (80 lb in) Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
2 Instrument Panel Knee Bolster Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
3 Instrument Panel Lower Trim Panel Insulator Bolt - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
4 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement

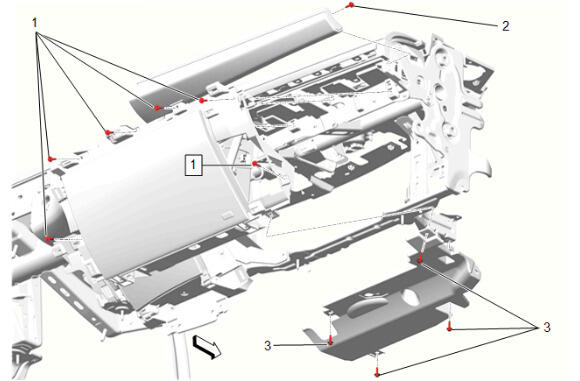

GM6002223Courtesy of GENERAL MOTORS COMPANY
Instrument Panel - Right Side Lower

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bolt [6x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement
2 Instrument Panel Lower Trim Panel Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Replacement
3 Instrument Panel Lower Trim Panel Insulator Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

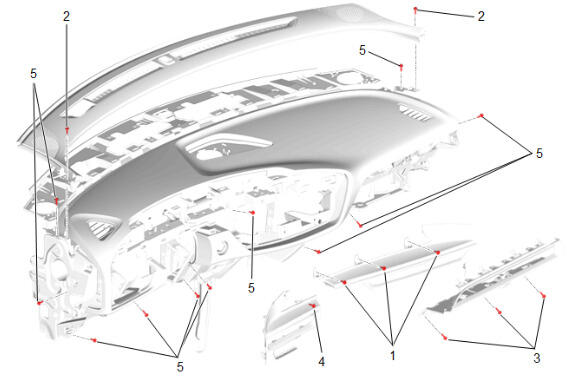

GM6002219Courtesy of GENERAL MOTORS COMPANY
Instrument Panel - Upper

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Accessory Bezel Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement - Right Side
2 Instrument Panel Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Extension Replacement (UIT) , or Instrument Panel Extension Replacement (UAS)
3 Instrument Panel Lower Trim Plate Applique Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Plate Applique Replacement
4 Instrument Panel Trim Plate Applique Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement - Left Side
5 Instrument Panel Upper Trim Panel Bolt [11x] - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement (UIT) , or Instrument Panel Assembly Replacement (UAS)

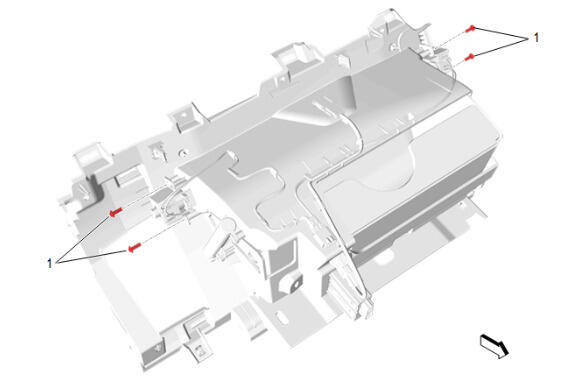

GM6002379Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bracket Bolt [4x] - - 1.5 N.m (13 lb in) Instrument Panel Compartment Door Latch Actuator Replacement

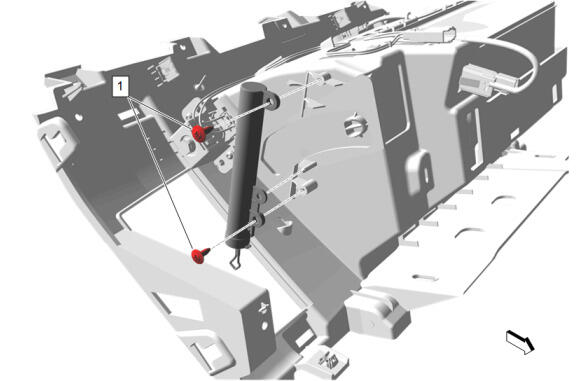

GM6562052Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Door Dampener

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Door Dampener Bolt [2x] - - 0.95 N.m (8 lb in) Instrument Panel Compartment Door Dampener Replacement

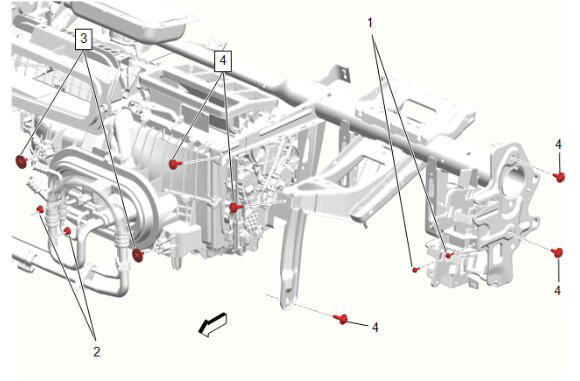

GM6000821Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar - Driver Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Control Module Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement (UIT) , or Instrument Panel Tie Bar Replacement (UAS)
2 Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut [2x] - - 22 N.m (16 lb ft) Instrument Panel Removal and Installation
3 Heater and Blower Module Bolt [2x] - - 5 N.m (44 lb in) Instrument Panel Removal and Installation
4 Instrument Panel Tie Bar Bolt [5x] - - 22 N.m (16 lb ft) Instrument Panel Removal and Installation

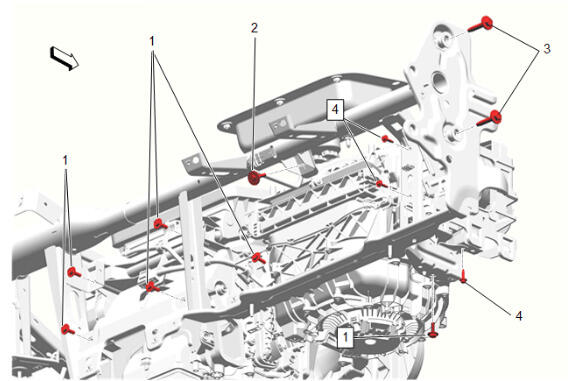

GM6000825Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar - Passenger Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [6x] - - 5 N.m (44 lb in) Instrument Panel Tie Bar Replacement (UIT) , or Instrument Panel Tie Bar Replacement (UAS)
2 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Assembly Replacement (UIT) , or Instrument Panel Assembly Replacement (UAS)
3 Instrument Panel Tie Bar Bolt [2x] - - 22 N.m (16 lb ft) Instrument Panel Removal and Installation
4 Radio and Infotainment Control Module Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement (UIT) , or Instrument Panel Tie Bar Replacement (UAS)

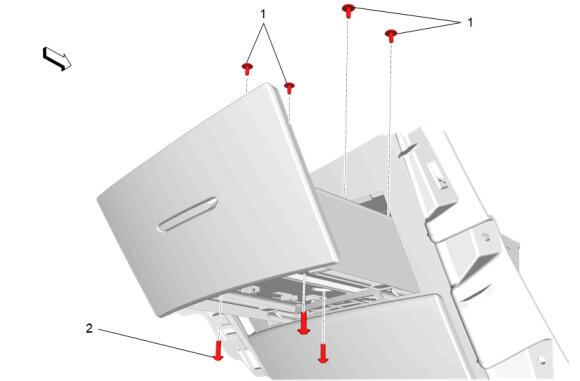

GM6444111Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bolt [4x] - Yes 1.5 N.m (13 lb in) Instrument Panel Upper Compartment Replacement
2 Instrument Panel Tray Bolt [3x] - - 1.5 N.m (13 lb in) Instrument Panel Upper Compartment Replacement
GM6000814Courtesy of GENERAL MOTORS COMPANY

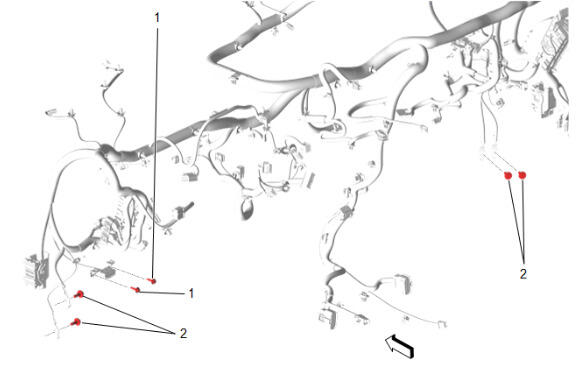

Instrument Panel Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement (UIT) , or Instrument Panel Tie Bar Replacement (UAS)
Instrument Panel Wiring Harness Replacement (UIT) , or Instrument Panel Wiring Harness Replacement (UAS)
2 Instrument Panel Wiring Harness Ground Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Removal and Installation
GM5948808Courtesy of GENERAL MOTORS COMPANY
Roof Console

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Support Bolt - - 2 N.m (18 lb in) Roof Console Replacement

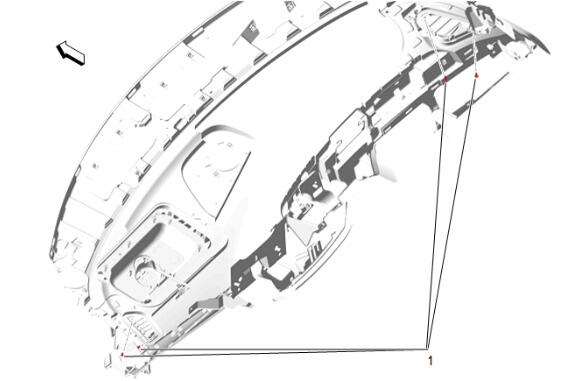

GM6002797Courtesy of GENERAL MOTORS COMPANY
Side Window Defogger Outlet Grille

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Side Window Defogger Outlet Bolt [4x] - - 2.5 N.m (22 lb in) Side Window Defogger Outlet Grille Replacement - Left Side (UIT) , or Side Window Defogger Outlet Grille Replacement - Left Side (UAS) , or Side Window Defogger Outlet Grille Replacement - Left Side (1SA / 1SB / 2SB)
Side Window Defogger Outlet Grille Replacement - Right Side (UIT) , or Side Window Defogger Outlet Grille Replacement - Right Side (UAS) , or Side Window Defogger Outlet Grille Replacement - Right Side (1SA / 1SB / 2SB)
