Installation Procedure

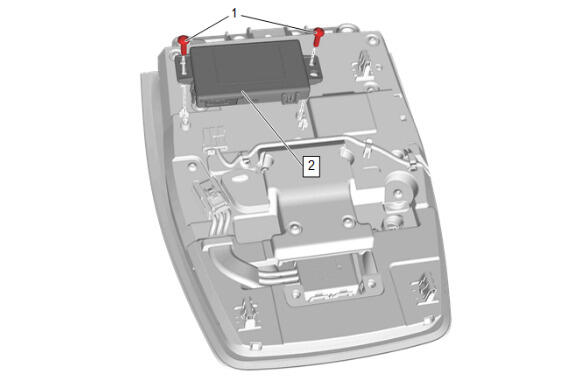

  1. GM5963683Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Garage Door Opener Transmitter (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Garage Door Opener Transmitter Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM5948807Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Roof Console (1) - Install
  6. GM5948808Courtesy of GENERAL MOTORS COMPANY

    Sunshade Support Bolt (1) - Install and tighten - Fastener Specifications

  7. GM5948810Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

  8. GM5948809Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  9. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
