Installation Procedure

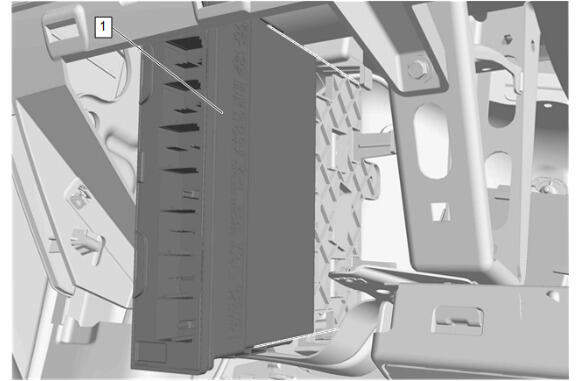

  1. GM5931960Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. GM5951136Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Left Side - Install

  5. Instrument Panel Wiring Harness (3) @ Instrument Panel Lower Trim Panel Insulator - Connect
    6. CAUTION:

    Refer to Fastener Caution .

  6. Instrument Panel Lower Trim Panel Insulator Bolt (2) - Install and hand tighten - Fastener Specifications
  7. {If equipped} Instrument Panel Insulator Nut (1) - Install and hand tighten - Fastener Specifications
  8. GM5931973Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Instrument Panel Knee Bolster (1) - Install

  9. GM5931971Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (1) - Install and tighten [4x] - Fastener Specifications

  10. GM5931076Courtesy of GENERAL MOTORS COMPANY

    Insert the tab at the top of the instrument panel outer trim cover (1) into the instrument panel before installing.

  11. Instrument Panel Outer Trim Cover (1) - Install
  12. Perform the necessary programming and setup procedure:Control Module References
