Installation Procedure

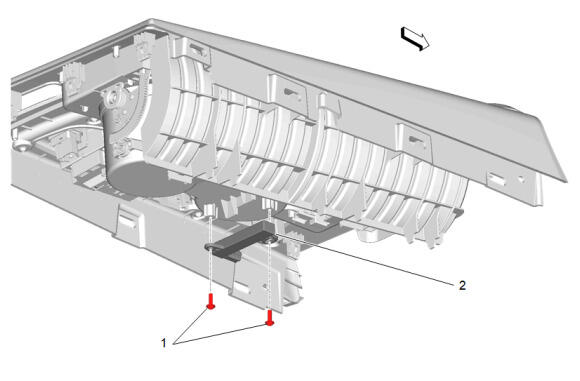

  1. GM5617606Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Antenna (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5617374Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install
  5. GM5617373Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications

  6. GM5619205Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
