Fastener Specifications

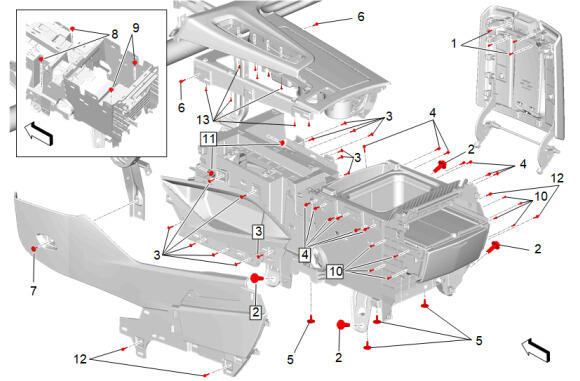

GM5618564Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Floor Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Bolt [4x] - - 1.6 N.m (14 lb in) Front Floor Console Armrest Latch Replacement
2 Front Floor Console Bolt@Front Floor Panel [4x] - - 45 N.m (33 lb ft) Front Floor Console Removal and Installation
3 Front Floor Console Bolt@Front Floor Console Pocket [14x] - - 2.5 N.m (22 lb in) Front Floor Console Pocket Replacement - Right Side
Front Floor Console Pocket Replacement - Left Side
4 Front Floor Console Compartment Bolt [13x] - - 2.5 N.m (22 lb in) Front Floor Console Compartment Replacement (DO7) , or Front Floor Console Compartment Replacement (DCK)
5 Front Floor Console Compartment Cooler Bolt [4x] - - 9 N.m (80 lb in) Front Floor Console Compartment Cooler Replacement
6 Front Floor Console Cup Holder Bolt [2x] - - 1.6 N.m (14 lb in) Front Floor Console Cup Holder Trim Plate Replacement
7 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side
8 Front Floor Console Front Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Floor Console Compartment Cooler Replacement
9 Front Floor Console Rear Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Floor Console Bracket Replacement (DCK) , or Front Floor Console Bracket Replacement (DO7)
10 Front Floor Console Rear Compartment Bolt [8x] - - 1.3 N.m (12 lb in) Front Floor Console Rear Compartment Replacement
11 Front Floor Console Retainer Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
12 Front Floor Console Side Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Rear Console Side Trim Panel Replacement - Left Side
Front Floor Rear Console Side Trim Panel Replacement - Right Side
13 Front Floor Console Trim Plate Bolt [9x] - - 1.6 N.m (14 lb in) Front Floor Console Trim Plate Replacement

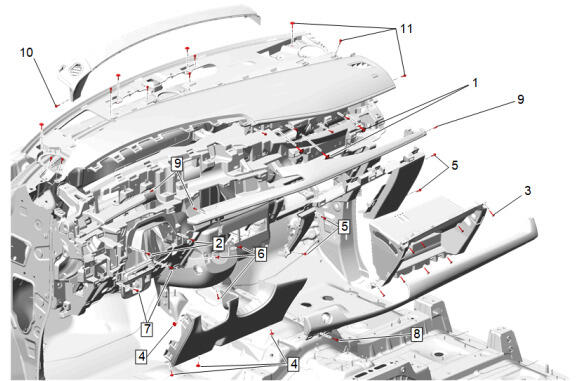

GM5614889Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt [3x] - - 9 N.m (80 lb in) Instrument Panel Upper Trim Panel Removal and Installation
Instrument Panel Upper Trim Panel Replacement
2 Instrument Panel Cluster Trim Plate Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement
3 Instrument Panel Compartment Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement
4 Instrument Panel Knee Bolster Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
5 Instrument Panel Lower Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Replacement
6 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement
7 Instrument Panel Switch Trim Plate Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Switch Trim Plate Replacement
8 Instrument Panel Trim Pad Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Replacement - Right Side
9 Instrument Panel Trim Plate Bolt [3x] - - 0.8 N.m (7 lb in) Instrument Panel Trim Plate Applique Replacement - Right Side
Instrument Panel Trim Plate Applique Replacement - Left Side
10 Instrument Panel Upper Trim Pad Bolt - - 2.5 N.m (22 lb in) Instrument Panel Instrument Cluster Hood Replacement
11 Instrument Panel Upper Trim Panel Bolt [16x] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Replacement
Instrument Panel Upper Trim Panel Removal and Installation
GM5628059Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Compartment Air Duct Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Air Duct Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (UV6) , or Instrument Panel Carrier Replacement (-UV6)

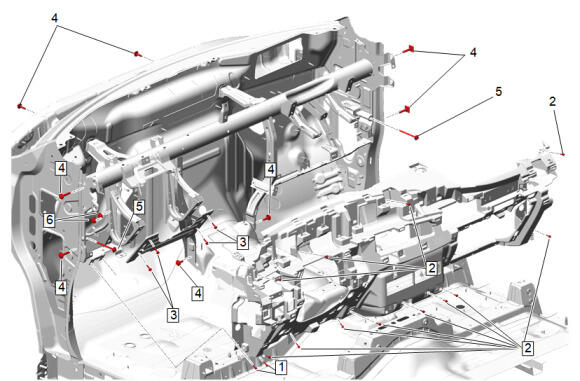

GM5615014Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
2 Instrument Panel Carrier Bolt [12x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (UV6) , or Instrument Panel Carrier Replacement (-UV6)
3 Instrument Panel Driver Knee Bolster Brace Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement
4 Instrument Panel Tie Bar Bolt [8x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
5 Instrument Panel Tie Bar Bolt@Body H/PLR Tie Bar Bracket [2x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
6 Instrument Panel Tie Bar Bracket Nut [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement

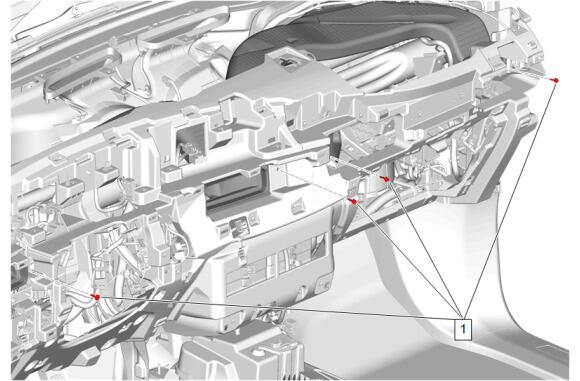

GM5042218Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Tie Bar-Inboard

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt@Heater and Air Conditioning Evaporator and Blower Module [5x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
GM5581901Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Roof Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Console Bolt [2x] - - 2.5 N.m (22 lb in) Roof Console Replacement
GM5779110Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Theft Intrusion Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Console Bracket Bolt [2x] - - 4.5 N.m (40 lb in) Roof Console Replacement
2 Roof Console Bracket Bolt [2x] - - 2.4 N.m (21 lb in) Roof Console Replacement
