Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Driver Seat Adjuster Memory Module (2) - Install
- Front Seat Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connectors.

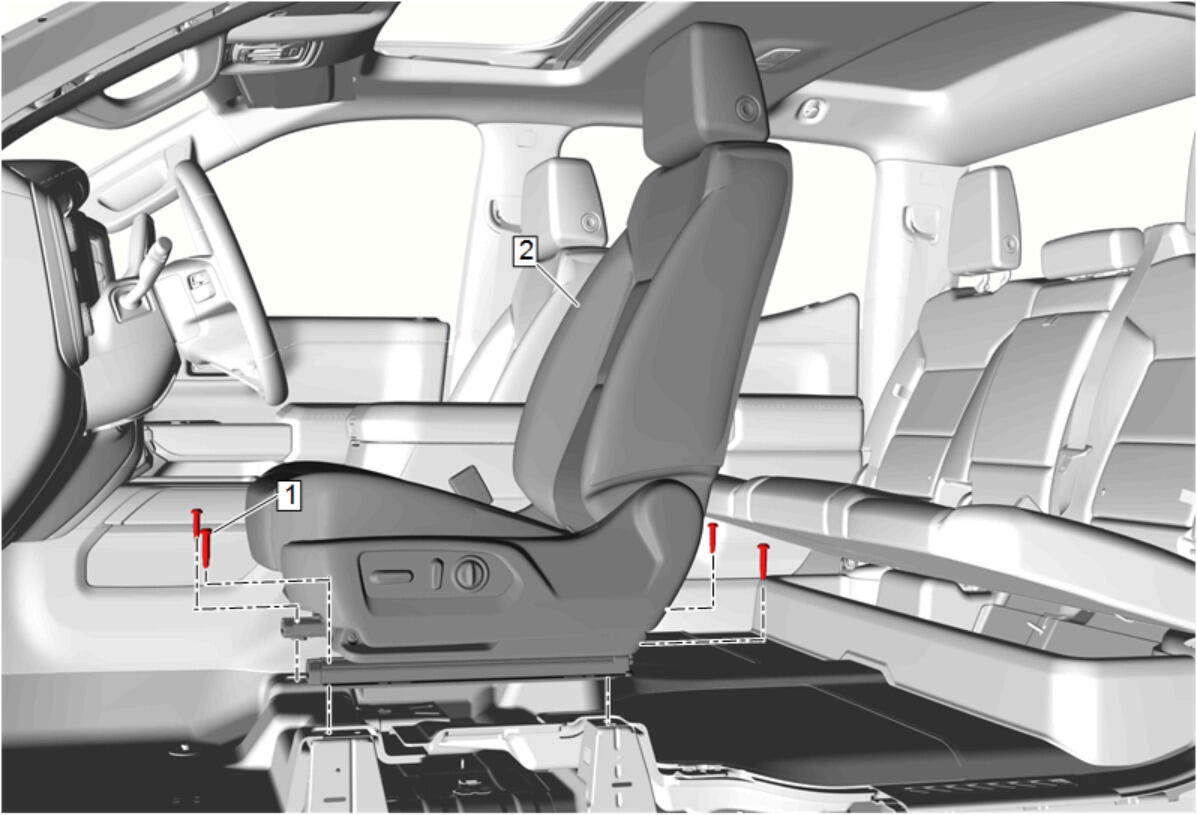

Front Seat (2) - Install
- Front Seat Bolt (1) - Install and tighten [4x] - Fastener Specifications

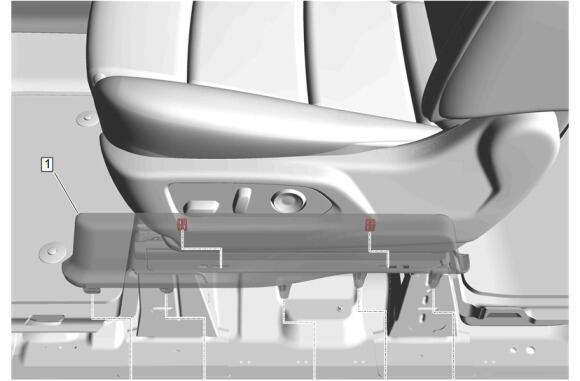

Front Seat Adjuster Track Finish Cover (1) - Install
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
