Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

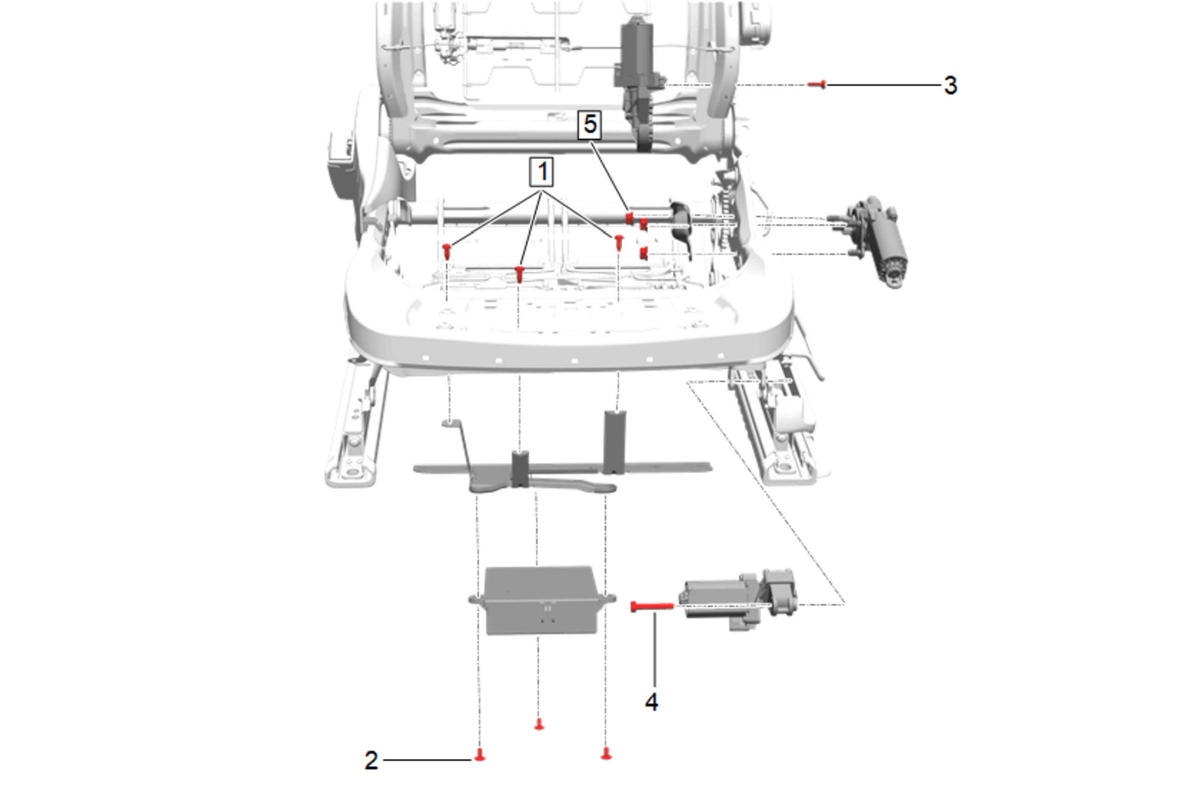

Callouts in the following chart represent components shown in graphic above.
Power Seats
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Adjuster Memory Module Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Front Seat Adjuster Memory Module Bracket Replacement |
| 2 | Front Seat Bolt [3x] | - | - | 1.1 N.m (10 lb in) | Driver Seat Adjuster Memory Module Replacement |
| 3 | Front Seat Recliner Actuator Motor Bolt | - | - | 6 N.m (53 lb in) | Front Seat Recliner Actuator Replacement |
| 4 | Front Seat Tilt Adjuster Actuator Bolt | - | - | 8 N.m (71 lb in) | Front Seat Tilt Adjuster Actuator Replacement |
| 5 | Front Seat Vertical Adjuster Actuator Nut [3x] | - | - | Front Seat Vertical Adjuster Actuator Nut Tightening Sequence | Front Seat Vertical Adjuster Actuator Replacement |
