Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Keyless Entry Control Module (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Body Control Module (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Body Control Module Bracket (2) - Install

CAUTION:

Refer to Fastener Caution .

Body Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

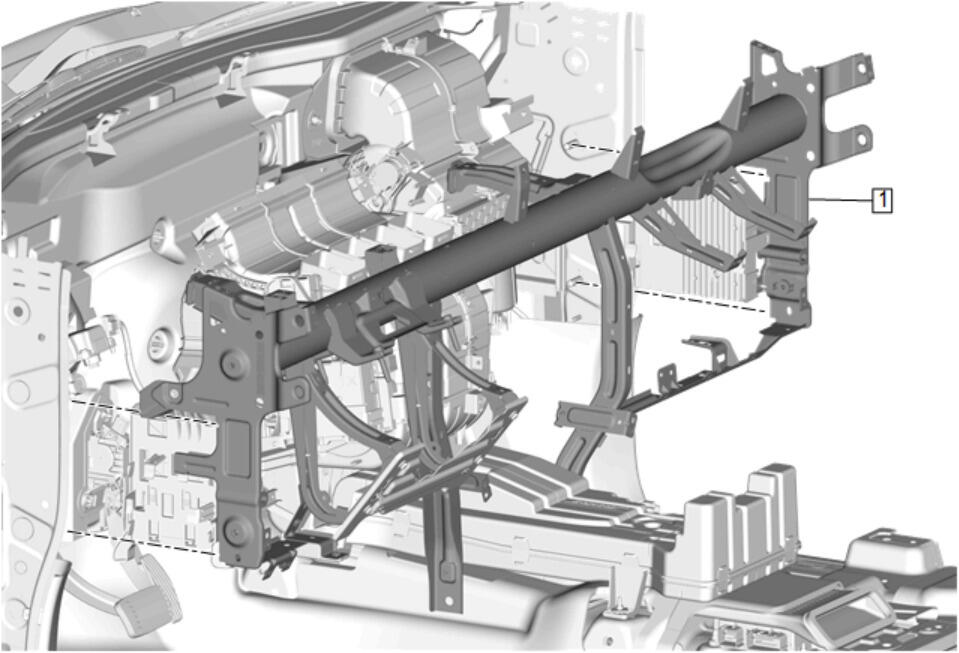

Instrument Panel Tie Bar (1) - Install
Attach the wiring harness and connect the electrical connectors as necessary.
Remove the support supporting the heater and air conditioning evaporator and blower module.
Courtesy of GENERAL MOTORS COMPANY

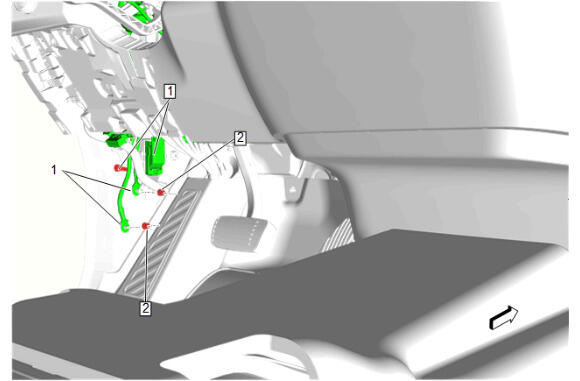

Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten [2x] - Fastener Specifications
Connect the instrument panel wiring harness (1) clip and connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Heater and Air Conditioning Evaporator and Blower Module Bolt (1) @Heater and Air Conditioning Evaporator and Blower Module - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

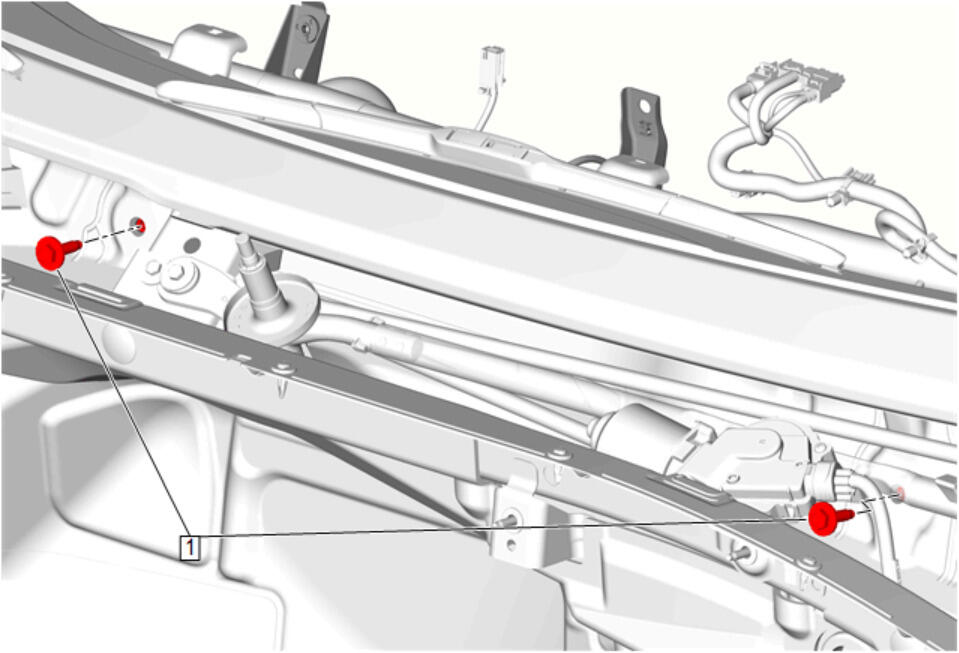

Instrument Panel Tie Bar Bolt (1) @Plenum Lower Panel - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

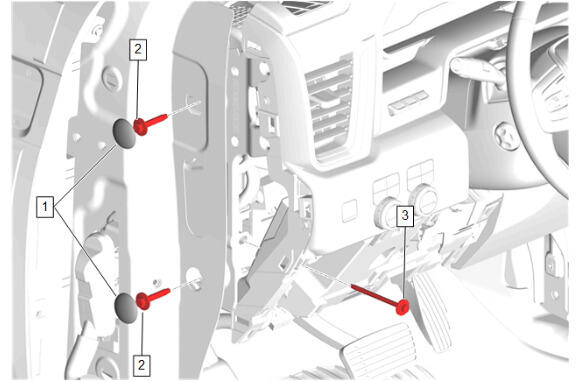

Instrument Panel Tie Bar Bolt (2) @Front Side Door - Install and tighten [2x] - Fastener Specifications
Body Hinge Pillar Outer Panel Hole Plug (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (2) @Front Side Door - Install and tighten [2x] - Fastener Specifications
Body Hinge Pillar Outer Panel Hole Plug (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

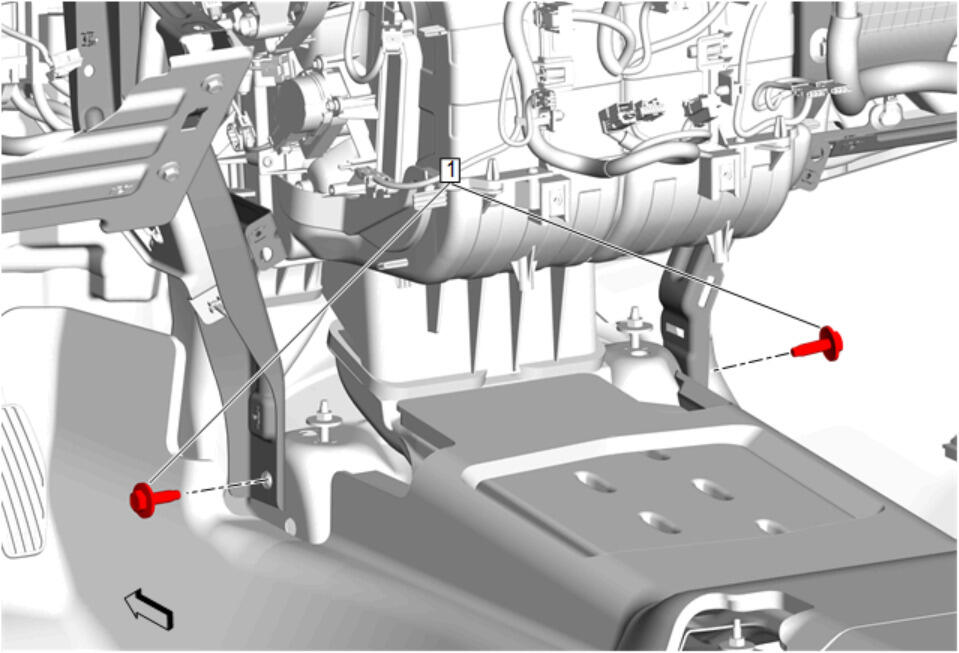

Instrument Panel Tie Bar Bolt (1) @Floor Panel Tunnel Panel - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

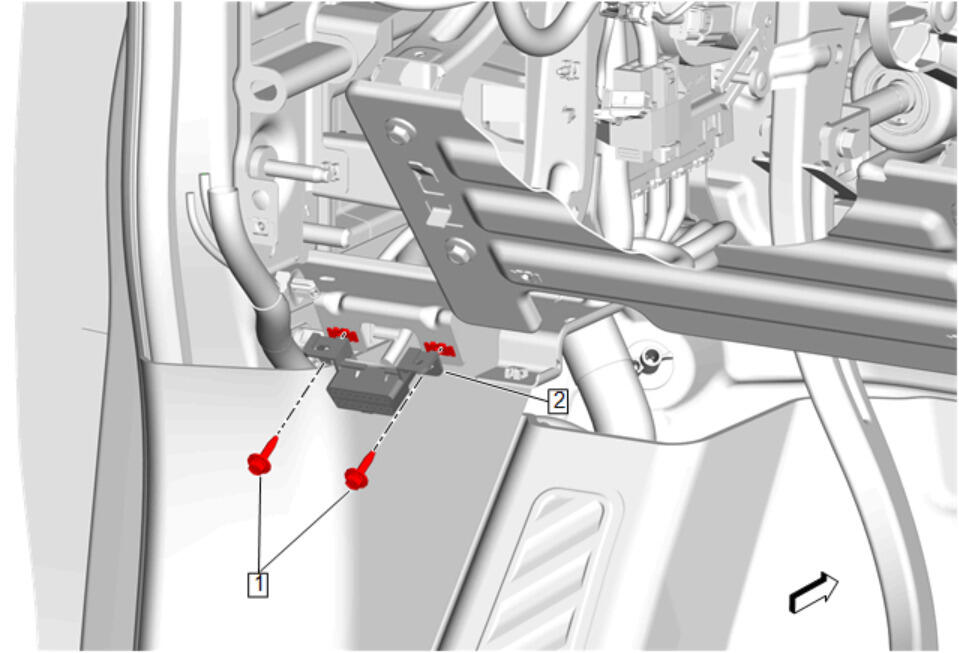

Data Link Connector (2) - Install
Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

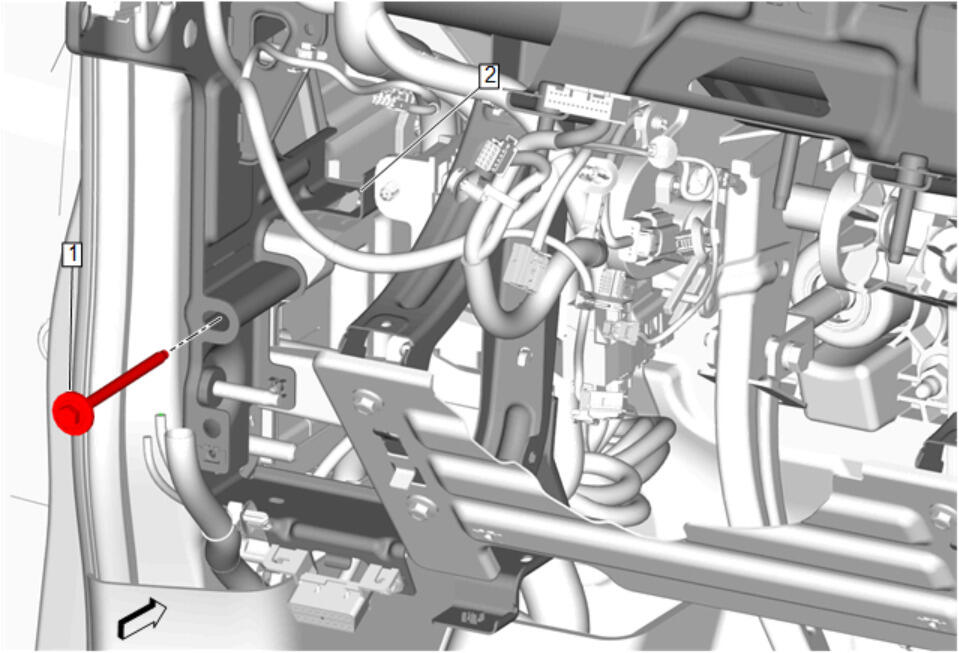

Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications
Use a suitable tool to push the tab (2) in the up position.
Courtesy of GENERAL MOTORS COMPANY

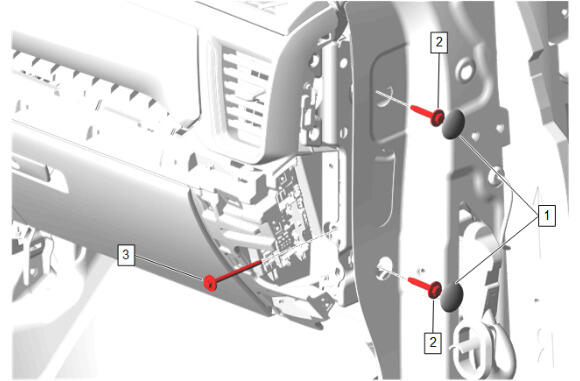

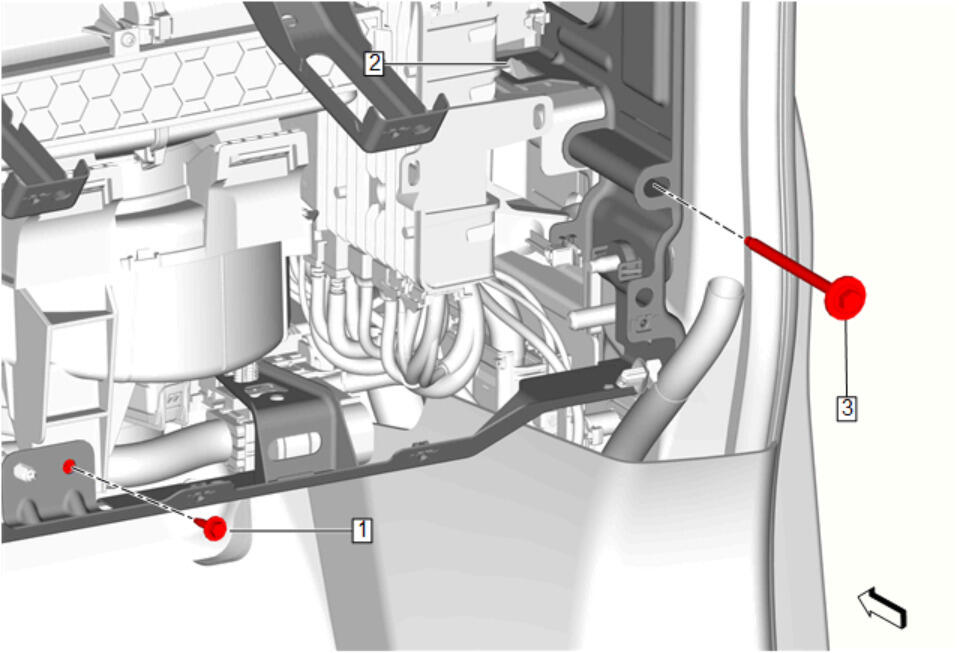

Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten - Fastener Specifications
Use a suitable tool to push the tab (2) in the up position.
Instrument Panel Tie Bar Bolt (3) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

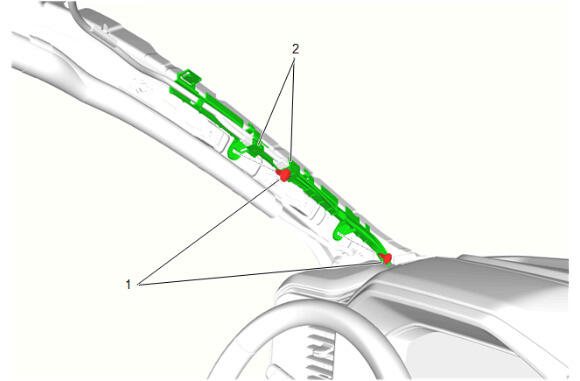

Connect the instrument panel wiring harness connectors (2) to the high frequency antenna harness.
Instrument Panel Wiring Harness Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

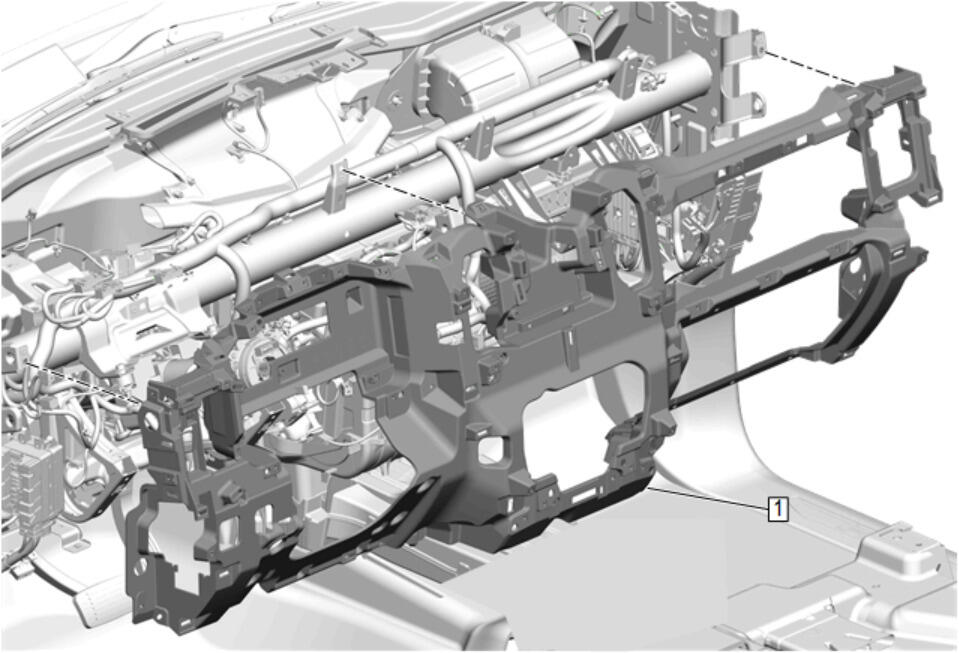

Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement (without Front Floor Console)Instrument Panel Carrier Replacement (with Front Floor Console, UV6)Instrument Panel Carrier Replacement (with Front Floor Console)
Courtesy of GENERAL MOTORS COMPANY

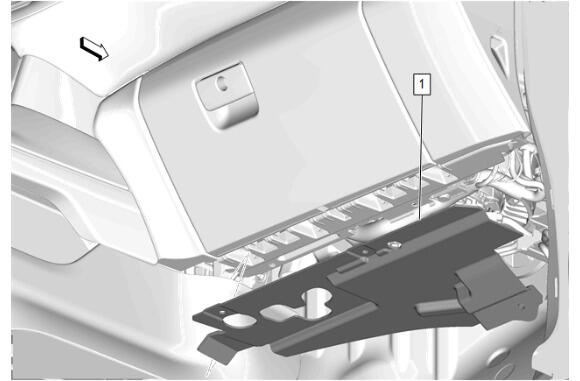

{If equipped} Instrument Panel Lower Trim Panel Insulator - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

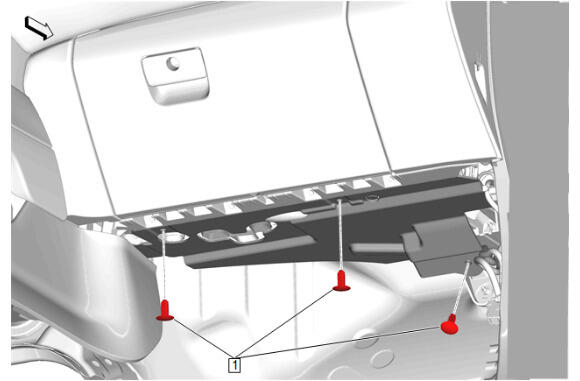

{If equipped} Instrument Panel Lower Insulator Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.
Work your way rearward engaging the front side door sill garnish molding retaining clips.
Front Side Door Sill Garnish Molding- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper System Module Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

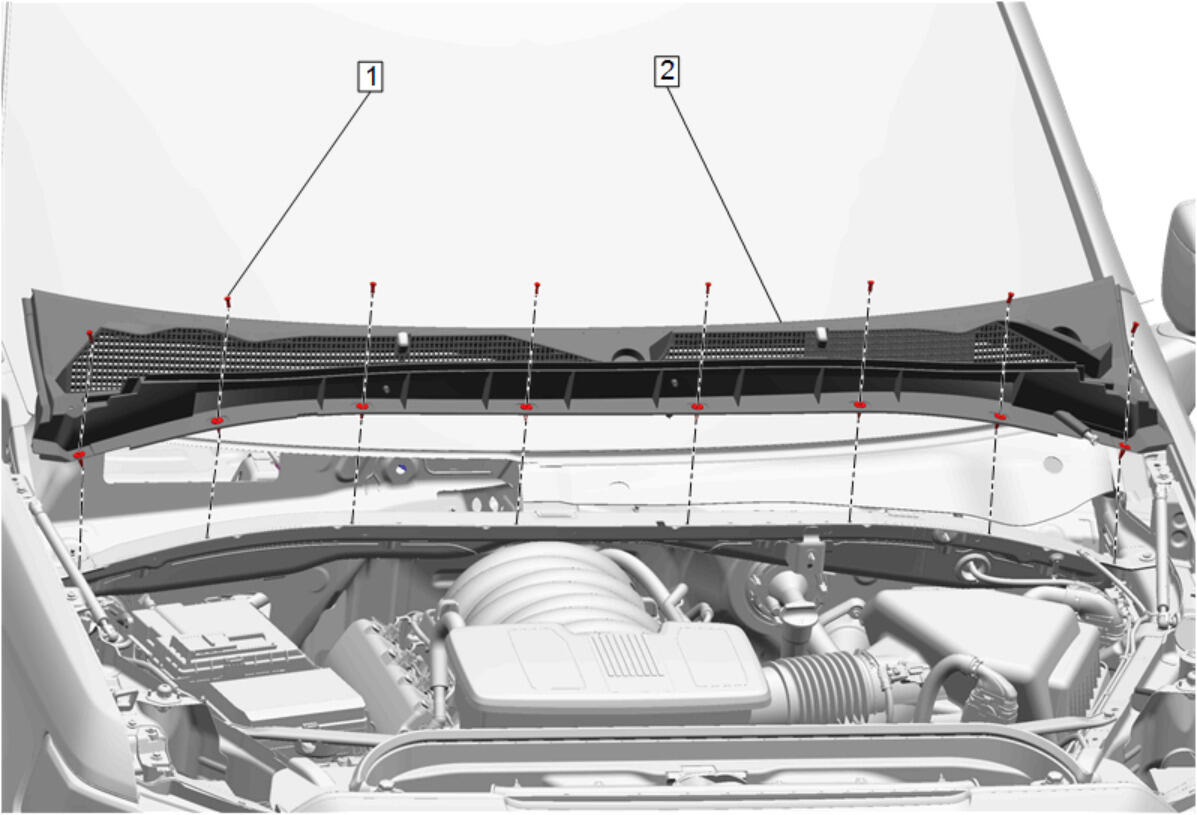

Air Inlet Grille Panel (2) - Install
Connect the windshield washer nozzle hose to the windshield washer pump hose.
Air Inlet Grille Panel Retainer (1) - Install [8x]
Courtesy of GENERAL MOTORS COMPANY

Hood Rear Outer Air Inlet Seal (2) - Install [2x]
Air Inlet Grille Panel Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

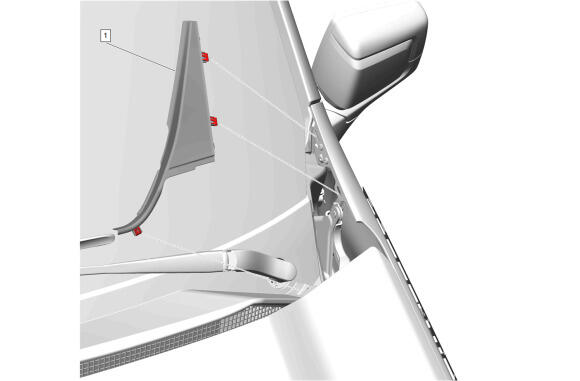

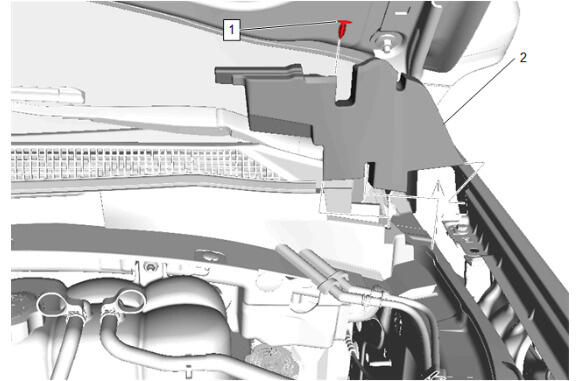

Air Inlet Grille Panel Extension- Left Side (1) - Install
Remove the double layer of masking tape around the perimeter of the painted surfaces.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

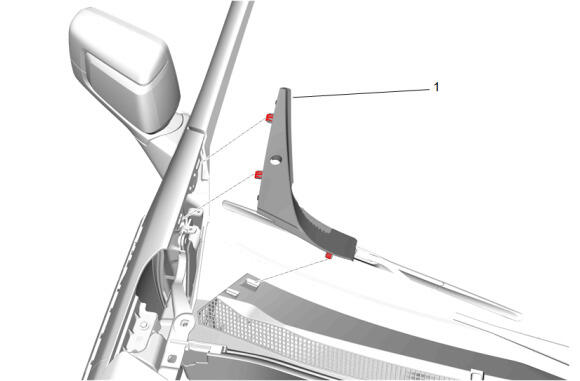

Air Inlet Grille Panel Extension- Right Side (1) - Install
Remove the double layer of masking tape around the perimeter of the painted surfaces.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Courtesy of GENERAL MOTORS COMPANY

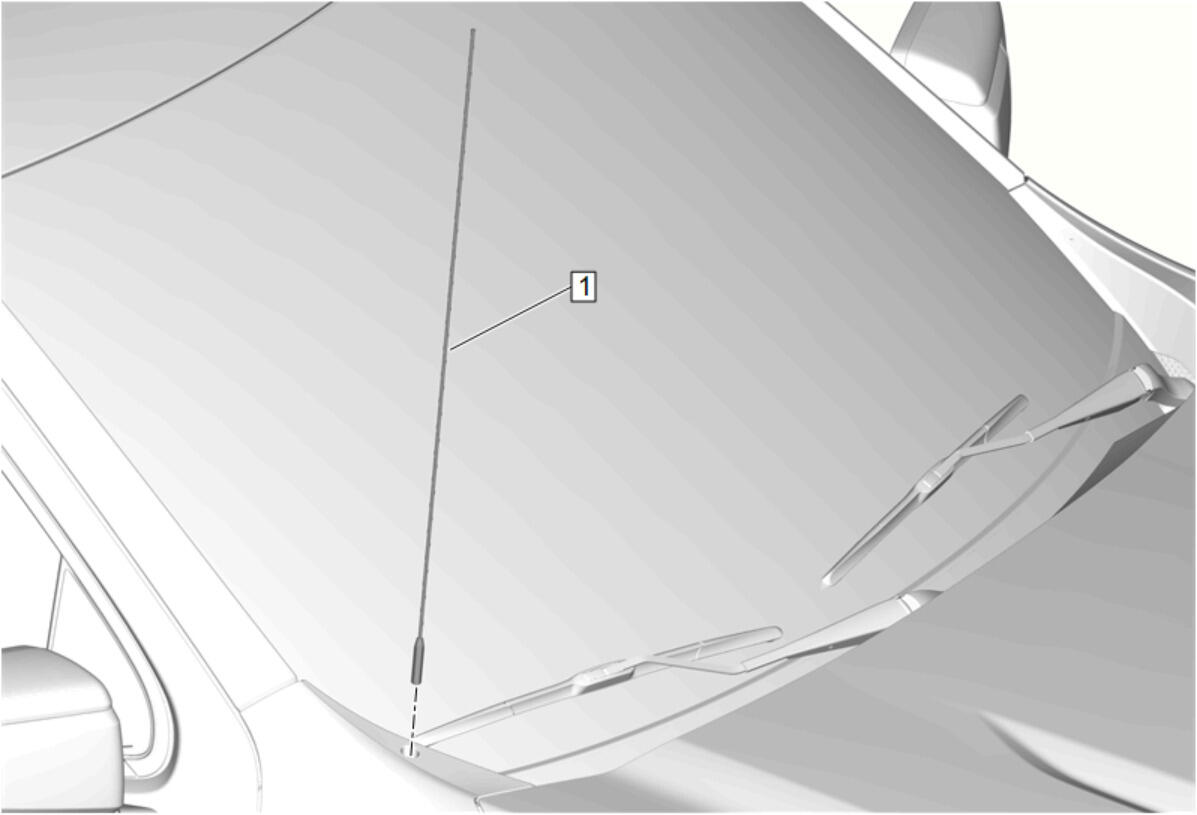

Radio Antenna (1) - Install
Rotate the antenna clockwise to secure the radio antenna to the antenna base.
Courtesy of GENERAL MOTORS COMPANY

Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
Windshield Wiper Arm Finish Cap (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.
Lubricate the windshield with clean washer fluid.
Run the windshield wipers for two complete cycles then turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
