Fastener Specifications

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

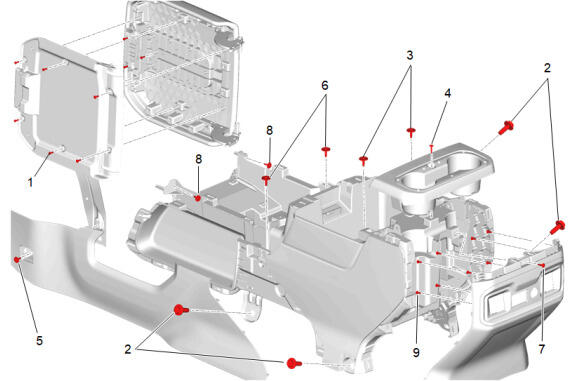

GM5629548Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Floor Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Bolt [9x] - - 0.7 N.m (6 lb in) Front Floor Console Armrest Latch Replacement
2 Front Floor Console Bolt [4x] - - 45 N.m (33 lb ft) Front Floor Console Removal and Installation
3 Front Floor Console Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Floor Lower Console Replacement
4 Front Floor Console Cup Holder Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement
Front Floor Lower Console Replacement
Front Floor Rear Console Trim Plate Replacement
5 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Removal and Installation
6 Front Floor Console Intermediate Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Floor Lower Console Replacement
7 Front Floor Console Rear Cover Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement
Front Floor Lower Console Replacement
Front Floor Rear Console Trim Plate Replacement
8 Front Floor Console Retainer Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
9 Front Floor Rear Console Trim Plate Bolt [8x] - - 1.6 N.m (14 lb in) Front Floor Rear Console Trim Plate Replacement

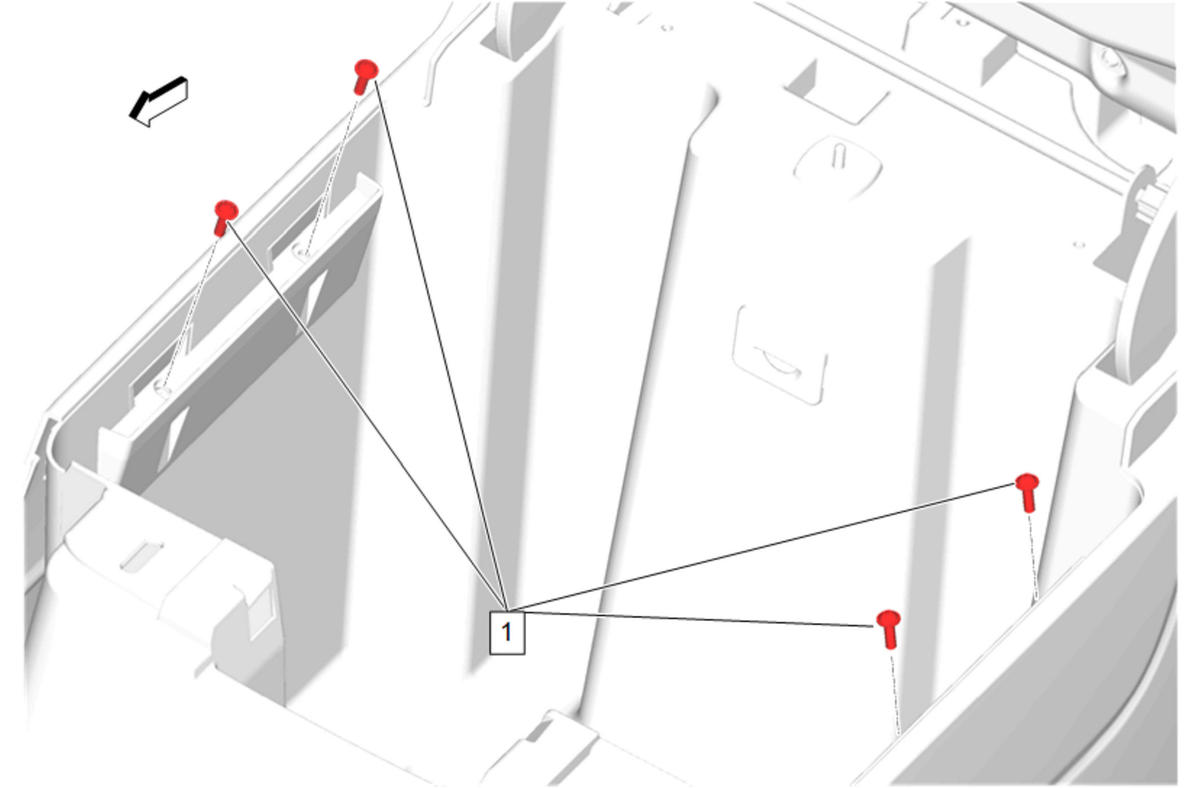

GM5655049Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Floor Console Rail

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Compartment Bolt [4x] - - 1.6 N.m (14 lb in) Front Floor Lower Console Replacement

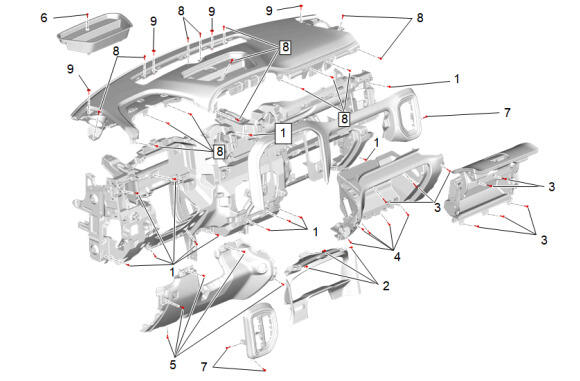

GM5629545Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt [12x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Replacement (without Front Floor Console) , or Instrument Panel Carrier Replacement (with Front Floor Console, UV6) , or Instrument Panel Carrier Replacement (with Front Floor Console)
2 Instrument Panel Cluster Trim Plate Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement (without UV6) , or Instrument Panel Cluster Trim Plate Replacement (with UV6)
3 Instrument Panel Compartment Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement (with Front Floor Console) , or Instrument Panel Compartment Replacement (without Front Floor Console)
Instrument Panel Upper Compartment Replacement (without Front Floor Console) , or Instrument Panel Upper Compartment Replacement (with Front Floor Console)
Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
4 Instrument Panel Compartment Door Opening Frame Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement (with Front Floor Console) , or Instrument Panel Compartment Replacement (without Front Floor Console)
Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
5 Instrument Panel Knee Bolster Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement (with Front Floor Console) , or Instrument Panel Knee Bolster Replacement (without Front Floor Console)
Instrument Panel Carrier Replacement (without Front Floor Console) , or Instrument Panel Carrier Replacement (with Front Floor Console, UV6) , or Instrument Panel Carrier Replacement (with Front Floor Console)
6 Instrument Panel Tray Bolt - - 2.5 N.m (22 lb in) Instrument Panel Stowage Tray Replacement (with GFD)
Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
7 Instrument Panel Trim Pad Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Trim Pad Replacement - Left Side
Instrument Panel Trim Pad Replacement - Right Side (with Front Floor Console) , or Instrument Panel Trim Pad Replacement - Right Side (without Front Floor Console)
Instrument Panel Cluster Trim Plate Replacement (without UV6) , or Instrument Panel Cluster Trim Plate Replacement (with UV6)
Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
8 Instrument Panel Upper Bolt - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
9 Instrument Panel Upper Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
GM5022868Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Lower Center Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Bolt - - 2.5 N.m (22 lb in) Instrument Panel Lower Center Trim Panel Replacement
Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)

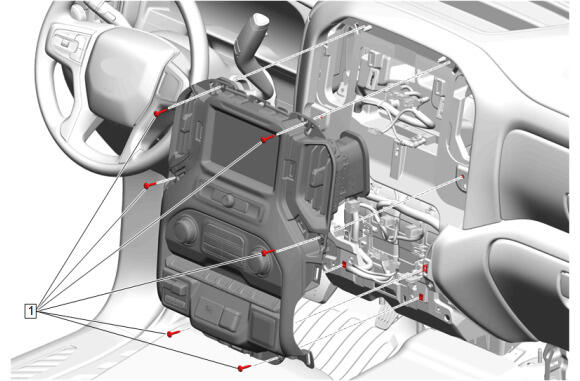

GM5629617Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Radio Front Trim Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Accessory Center Trim Plate Bolt [6x] - - 2.5 N.m (22 lb in) Instrument Panel Radio Front Trim Plate Replacement (without Front Floor Console) , or Instrument Panel Radio Front Trim Plate Replacement (with Front Floor Console)

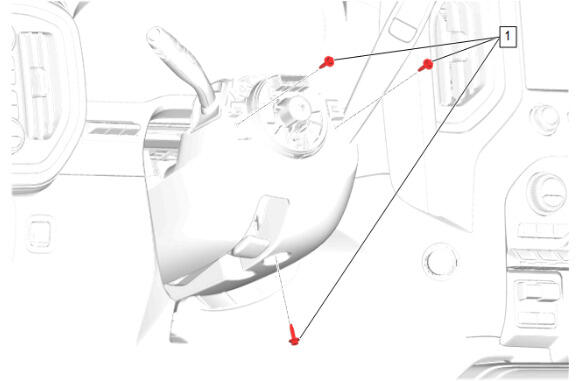

GM5661217Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement
Instrument Panel Carrier Replacement (without Front Floor Console) , or Instrument Panel Carrier Replacement (with Front Floor Console, UV6) , or Instrument Panel Carrier Replacement (with Front Floor Console)

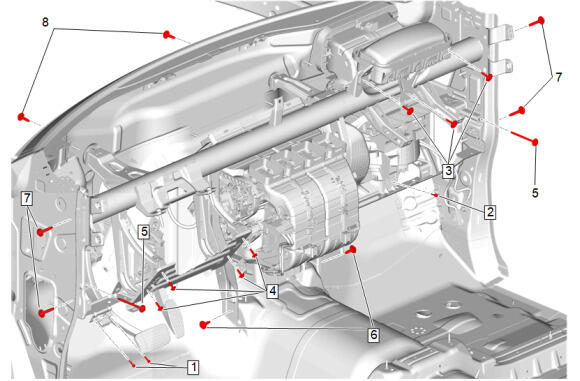

GM5629547Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
2 Heater and Air Conditioning Evaporator and Blower Module Bolt@Air Conditioning Evaporator Case - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement
3 Instrument Panel Airbag Bolt [3x] - - 9 N.m (80 lb in) Instrument Panel Assembly Replacement (with Front Floor Console) , or Instrument Panel Assembly Replacement (without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU without Front Floor Console) , or Instrument Panel Assembly Replacement (UEU with Front Floor Console)
Instrument Panel Removal and Installation (with Front Floor Console) , or Instrument Panel Removal and Installation (without Front Floor Console) , or Instrument Panel Removal and Installation (UEU with Front Floor Console) , or Instrument Panel Removal and Installation (UEU without Front Floor Console)
4 Instrument Panel Driver Knee Bolster Brace Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement
5 Instrument Panel Tie Bar Bolt [2x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
6 Instrument Panel Tie Bar Bolt@Floor Panel Tunnel Panel [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
7 Instrument Panel Tie Bar Bolt@Front Side Door [4x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
8 Instrument Panel Tie Bar Bolt@Plenum Lower Panel [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
GM5042218Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Tie Bar-Inboard

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt@Heater and Air Conditioning Evaporator and Blower Module [5x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

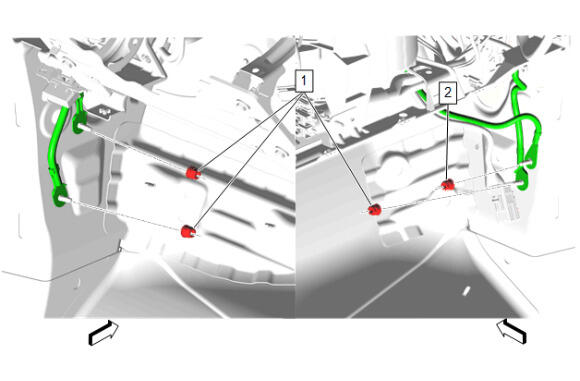

GM5910639Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Instrument Panel Wiring Harness Ground Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Ground Nut [3x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
2 Air Heater Wiring Harness Ground Nut - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

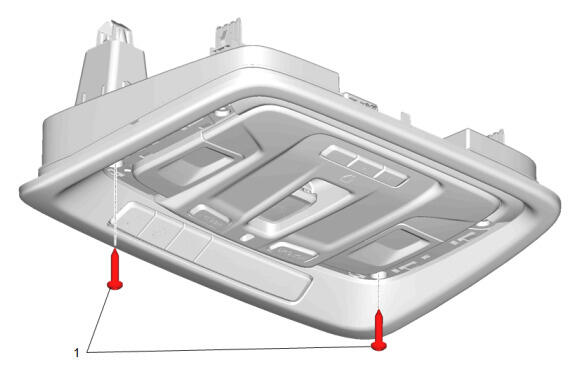

GM5629549Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Roof Console

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Console Bolt [2x] - - 8.1 N.m (72 lb in) Roof Console Replacement
