Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

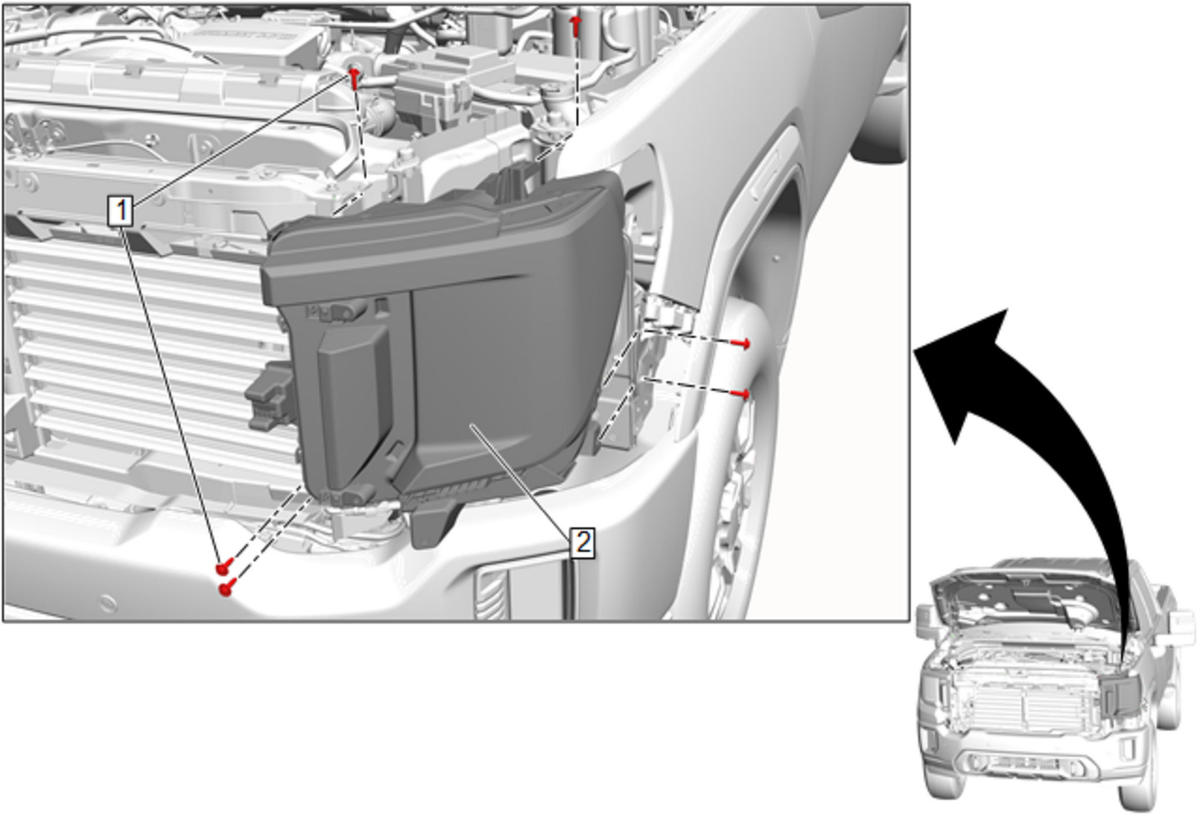

  1. GM5241221Courtesy of GENERAL MOTORS COMPANY

    Connect the wiring harness retainers.

  2. Connect the electrical connectors.
  3. Front Headlamp (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Headlamp Bolt (1) - Install and tighten [6x] - Fastener Specifications

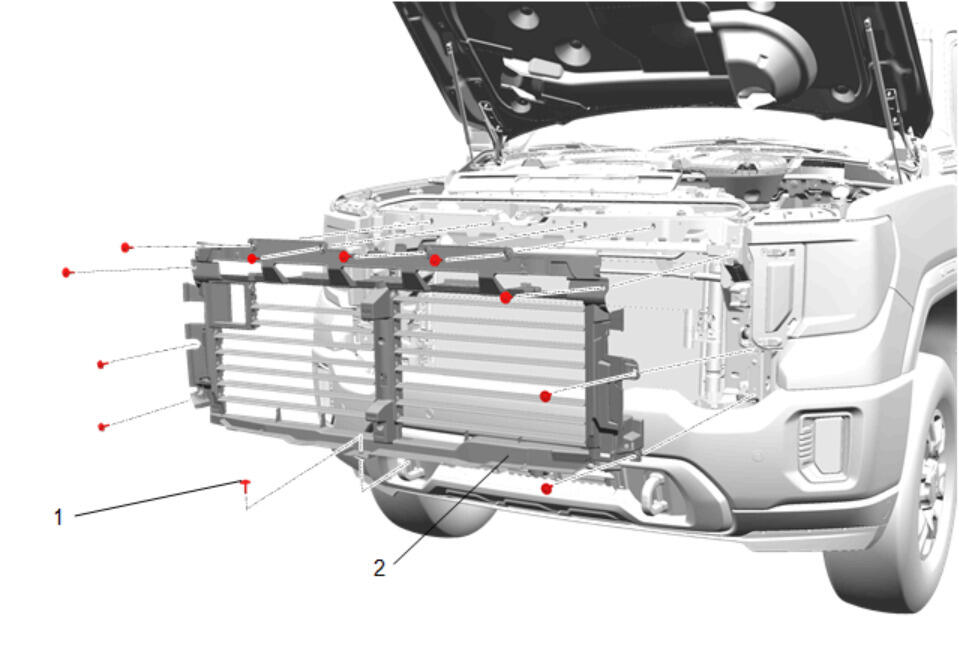

  5. GM5254425Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter (2) - Install

  6. Connect the wiring harness retainers.
  7. Connect the electrical connectors.
  8. Front Bumper Shutter Bolt (1) - Install and tighten [11x] - Fastener Specifications

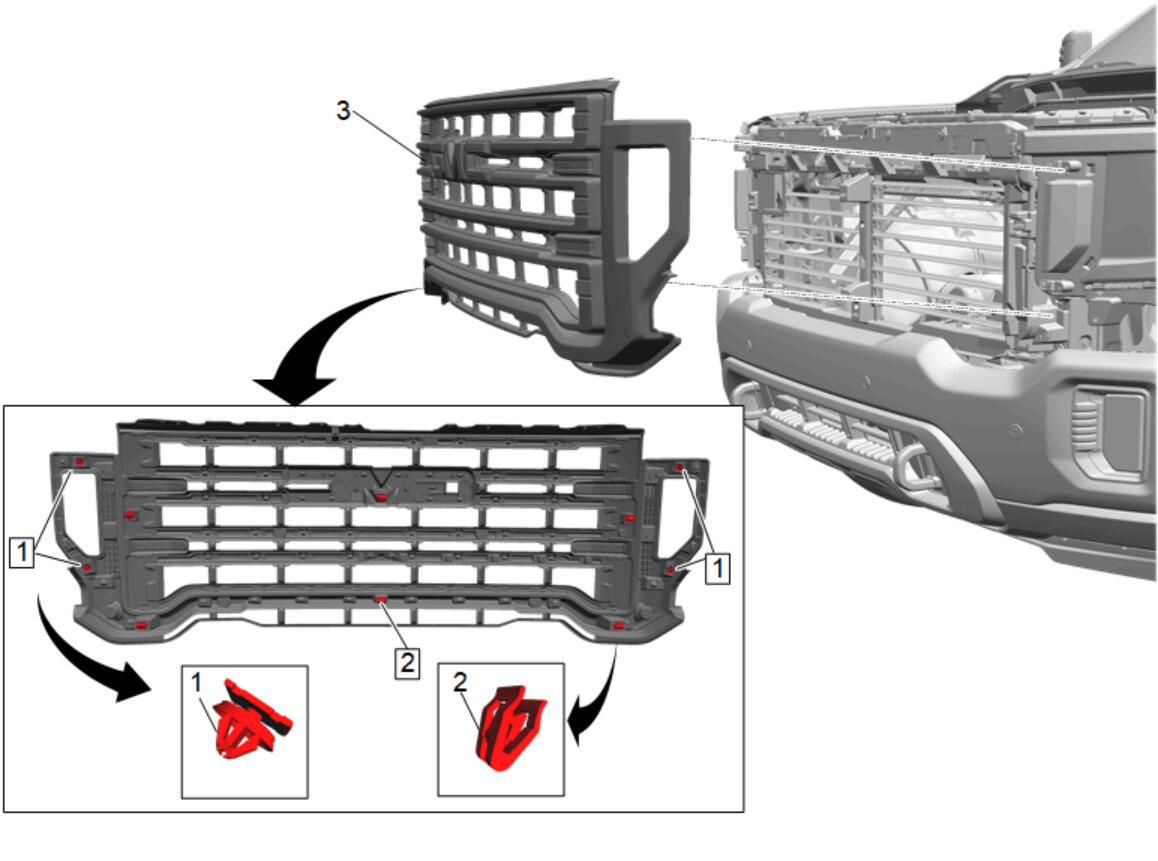

  9. GM5256732Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  10. Front Grille (3) - Install
  11. GM5256731Courtesy of GENERAL MOTORS COMPANY

    Front Grille Bolt (1) - Install and tighten [4x] - Fastener Specifications

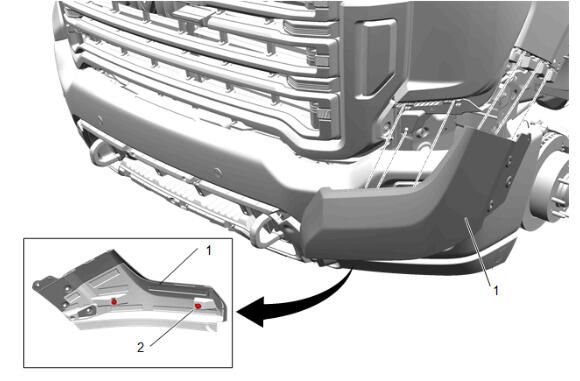

  12. GM5776106Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Outer Filler- Left Side and Right Side (1) - Install [2x]

  13. Front Bumper Outer Filler Retainer (2) - Install [2x]

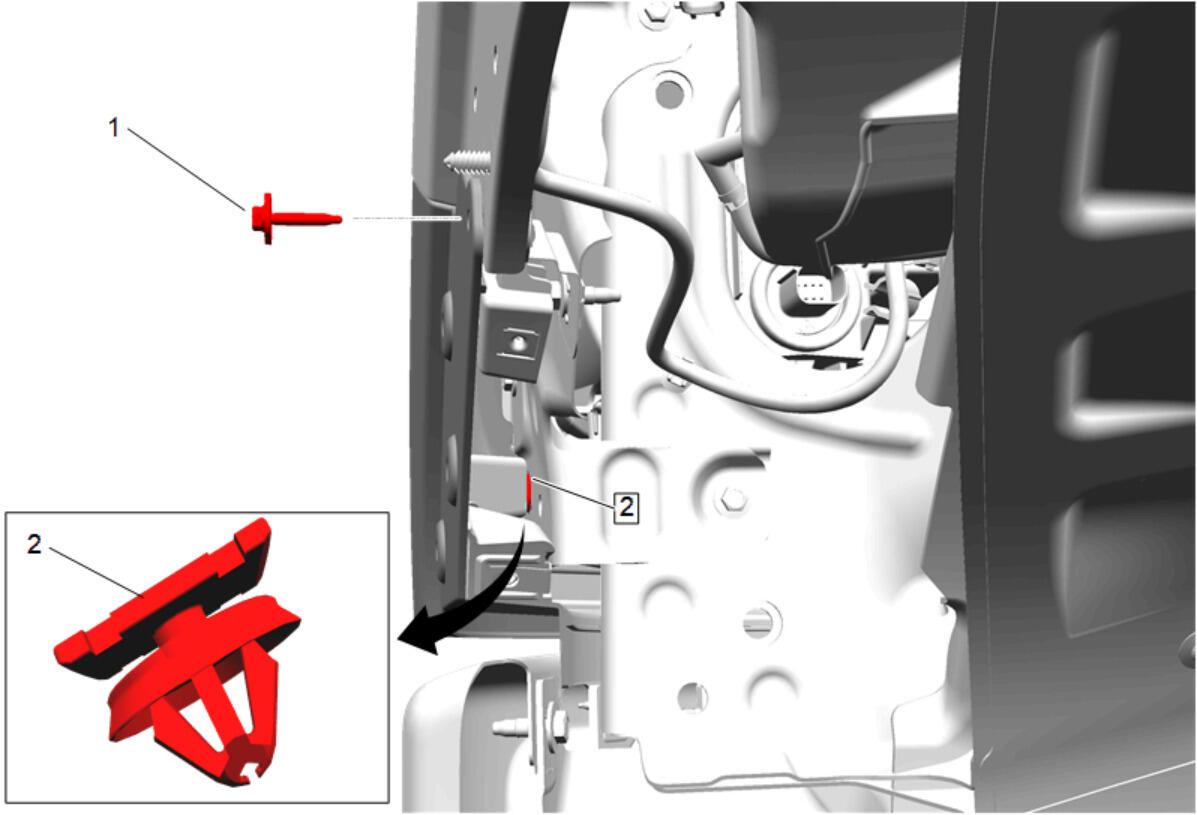

  14. GM5253483Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Retainer- Left Side and Right Side (2) - Install [2x]

  15. Front Bumper Fascia Bolt- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

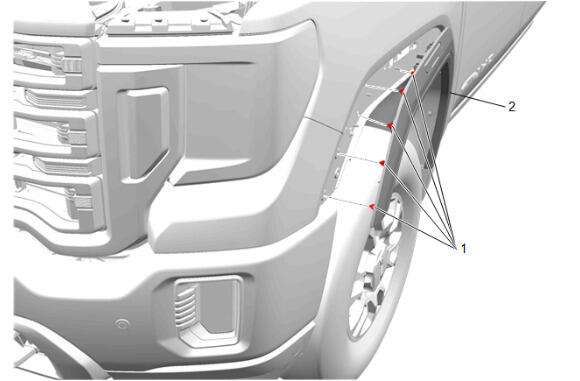

  16. GM5753652Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Opening Molding- Left Side and Right Side (2) - Install [2x]

  17. Front Wheel Opening Molding Retainer- Left Side and Right Side (1) - Install [10x]

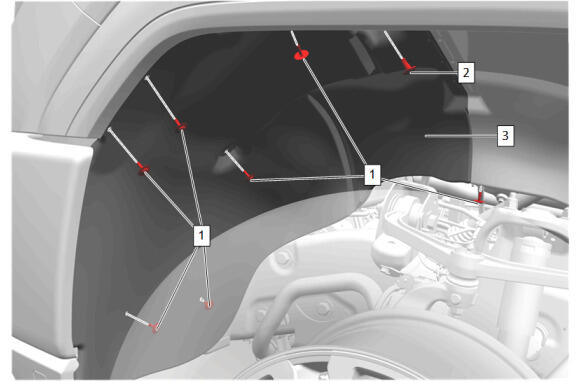

  18. GM5753680Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner- Left Side and Right Side (3) - Install [2x]

  19. Front Wheelhouse Liner Retainer- Left Side and Right Side (2) - Install [2x]
  20. Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Install and tighten [14x] - Fastener Specifications
  21. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  22. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape

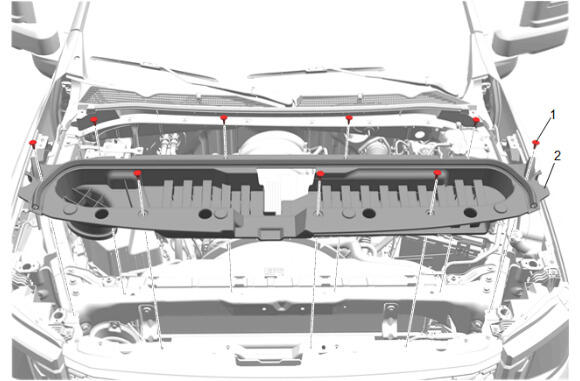

  23. GM5750763Courtesy of GENERAL MOTORS COMPANY

    Intake Air Baffle (2) - Install

  24. Intake Air Baffle Retainer (1) - Install [9x]
  25. GM5541781Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Handle (1) - Install

  26. Hood Latch Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
  27. After installation, aim the front headlamps. Front Headlamp Aiming
