Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

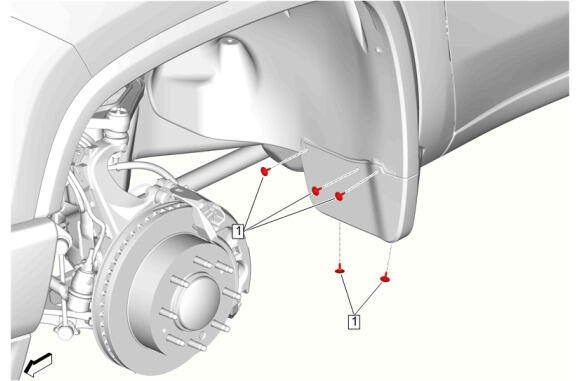

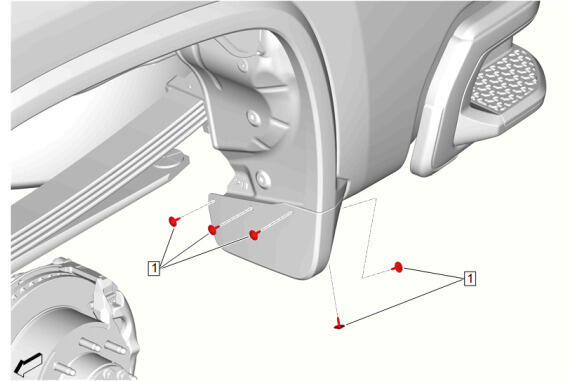

Front Fender Paint Protector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Fender Paint Protector Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Fender Paint Protector Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

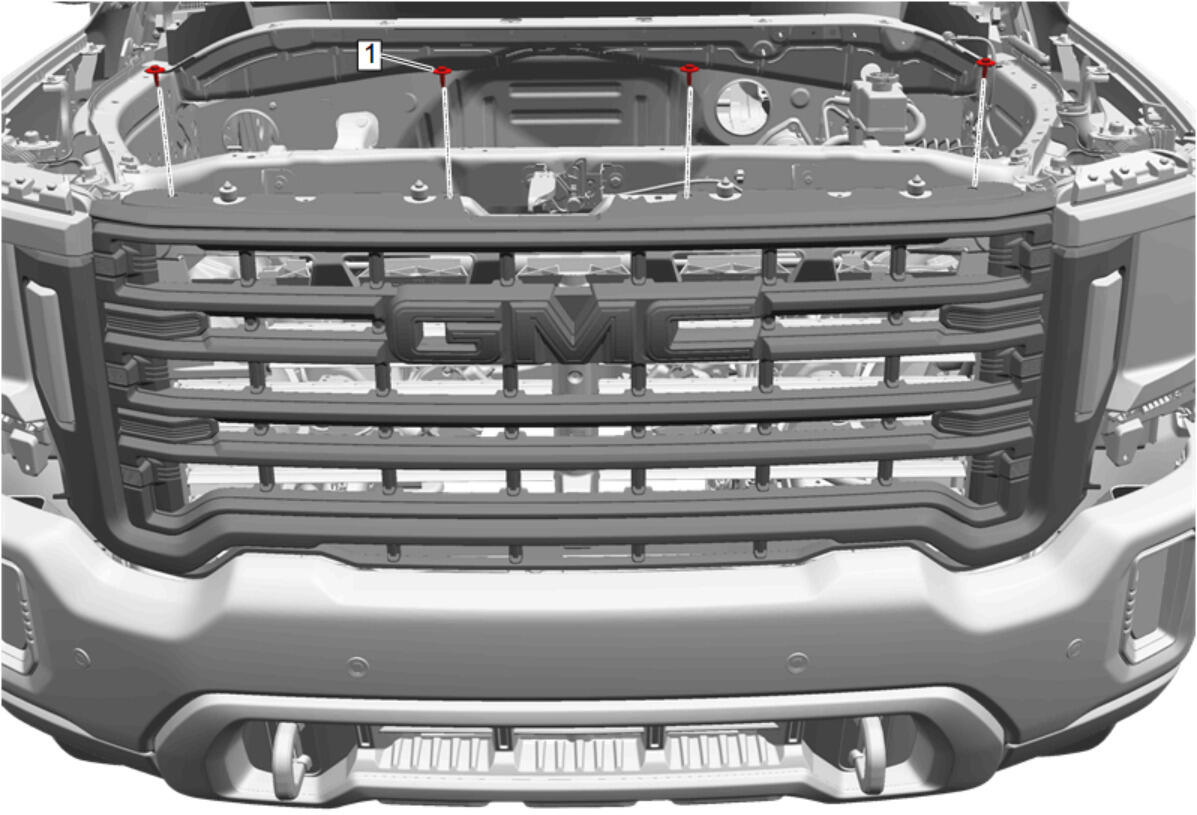

Front Grille
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt [4x] | - | - | 6 N.m (53 lb in) | Front Grille Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

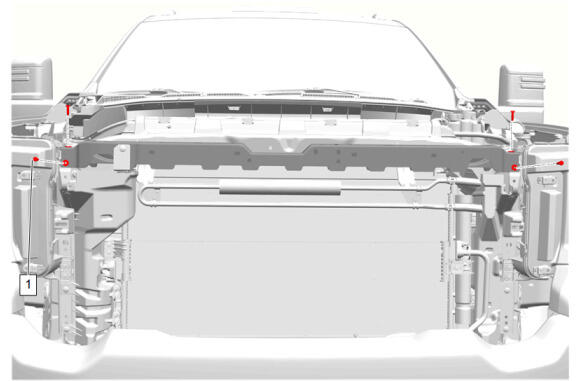

Front Grille Support Reinforcement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Support Reinforcement Bolt [4x] | - | - | 9 N.m (80 lb in) | Front Grille Support Reinforcement Replacement (L5P) Front Grille Support Reinforcement Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

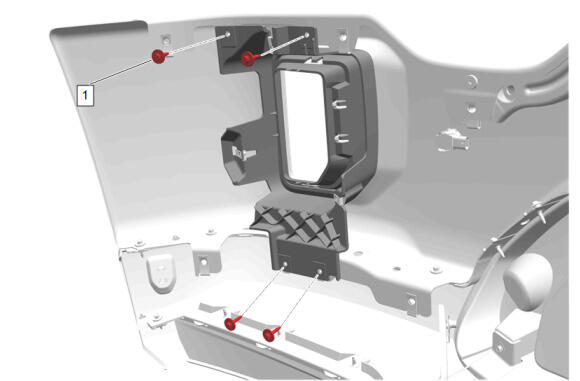

Front Fog Lamp Bezel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Lower Impact Bar Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Fog Lamp Opening Insert Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

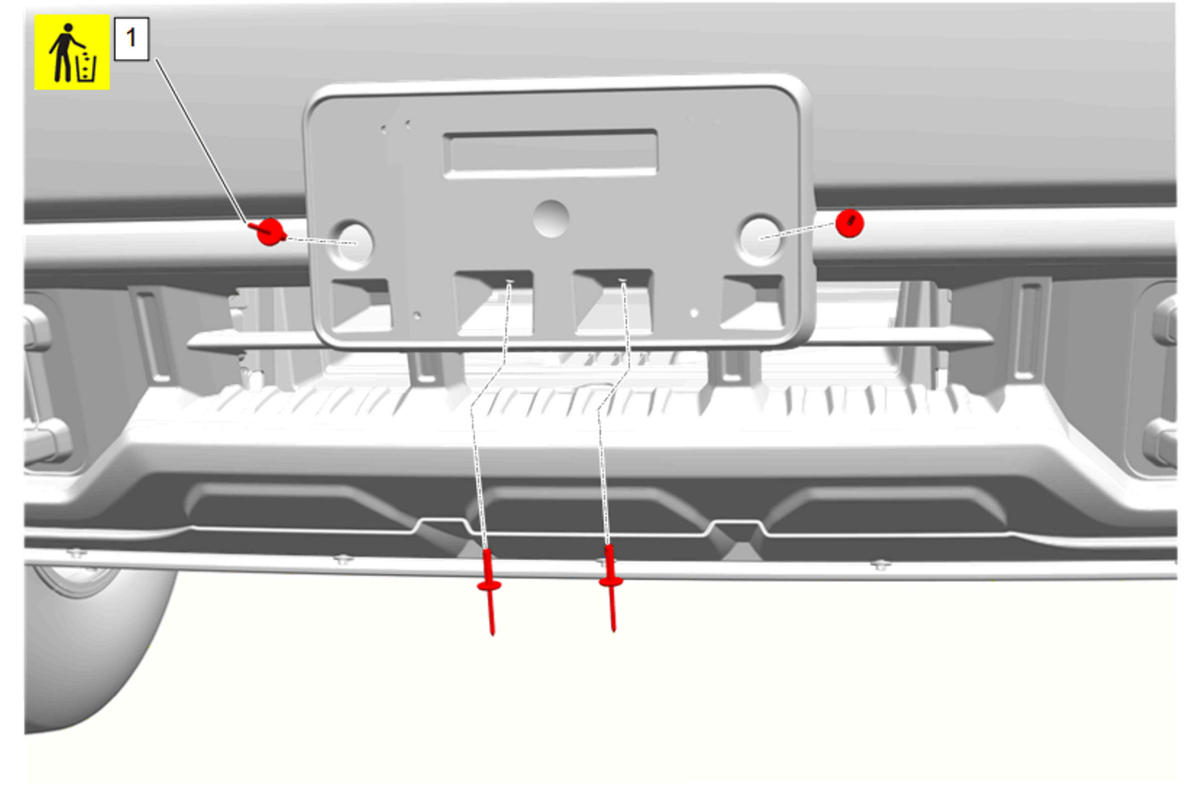

Front License Plate Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front License Plate Bracket Rivet [4x] | Yes | - | - | Front License Plate Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

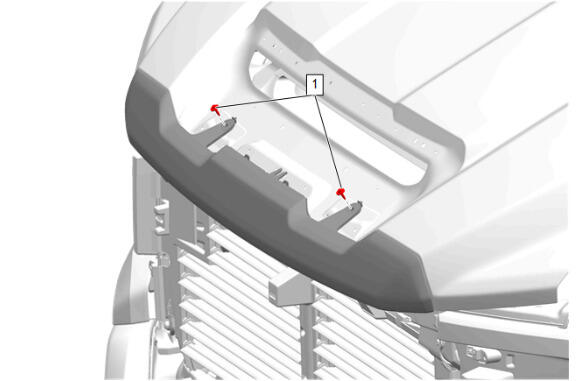

Hood Front Molding (L5P)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Front Molding Bolt [2x] | - | - | 4.7 N.m (22 lb in) | Hood Front Molding Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Hood Front Molding (L8T)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Front Molding Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Hood Front Molding Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

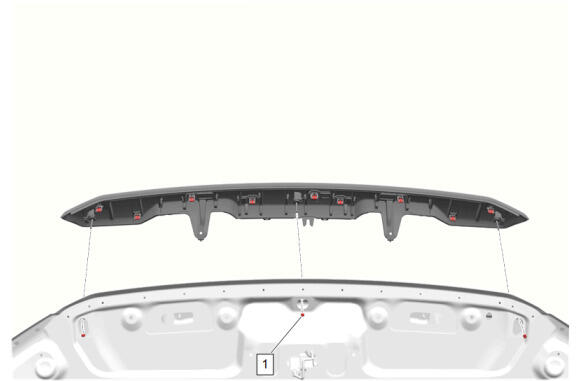

Hood Front Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Front Molding Nut [3x] | - | - | 4.7 N.m (42 lb in) | Hood Front Molding Replacement (L8T) Hood Front Molding Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

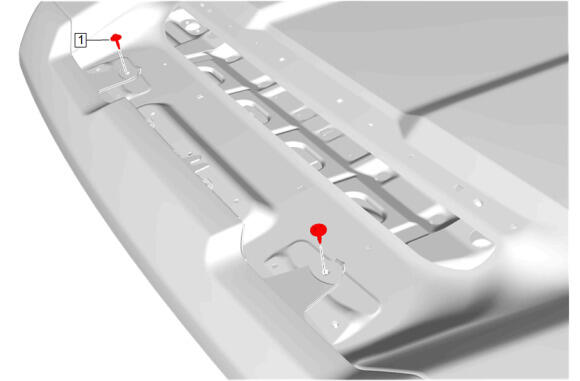

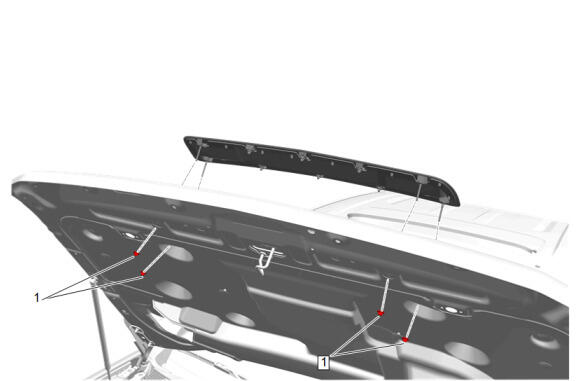

Hood Ornamentation Vent
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Center Molding Nut [4x] | - | - | 4.7 N.m (42 lb in) | Hood Ornamentation Vent Replacement (L8T) Hood Ornamentation Vent Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

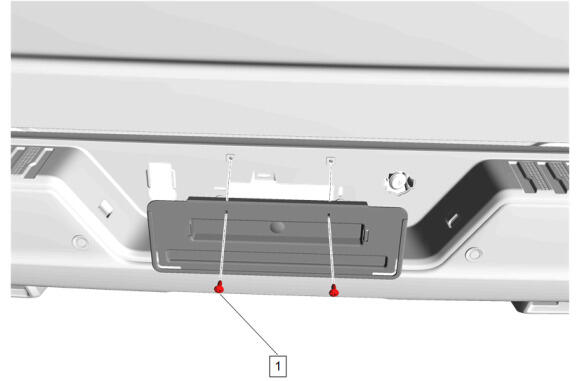

Rear License Plate
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear License Plate Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear License Plate Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Pickup Box Paint Protector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Pickup Box Paint Protector Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Rear Pickup Box Paint Protector Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

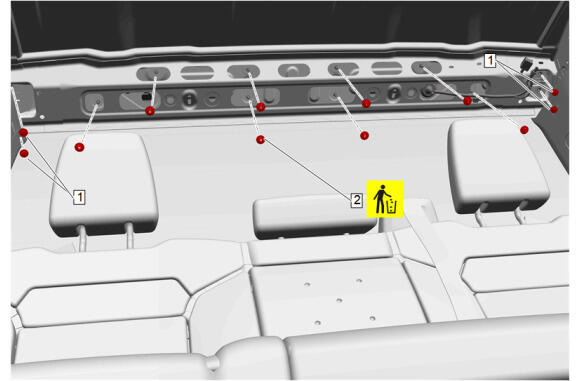

Roof Rear Spoiler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rear Spoiler Bolt [4x] | - | - | 6 N.m (53 lb in) | Roof Rear Spoiler Replacement (with CF5) |
| 2 | Roof Rear Spoiler Nut [8x] | Yes | - | 6 N.m (53 lb in) | Roof Rear Spoiler Replacement (with CF5) |
