Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

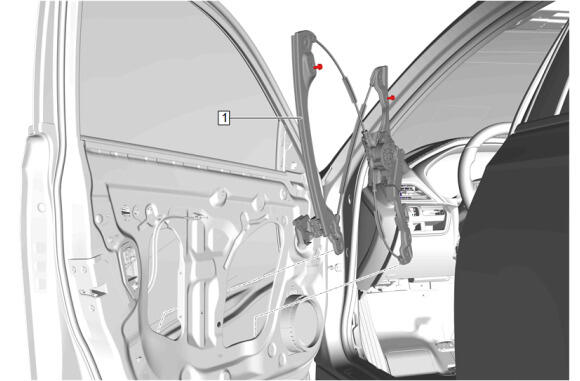

Front Side Door Regulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

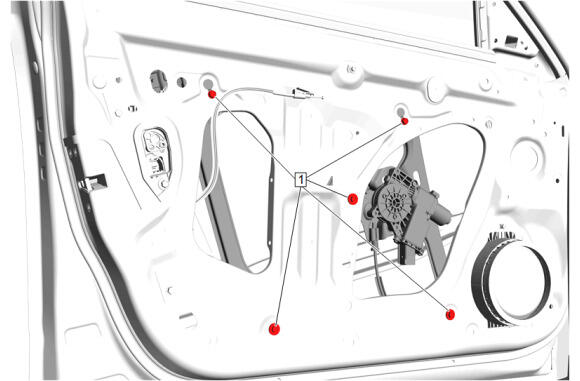

CAUTION:
Refer to Fastener Caution .

Front Side Door Window Regulator Bolt (1) - Tighten [5x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

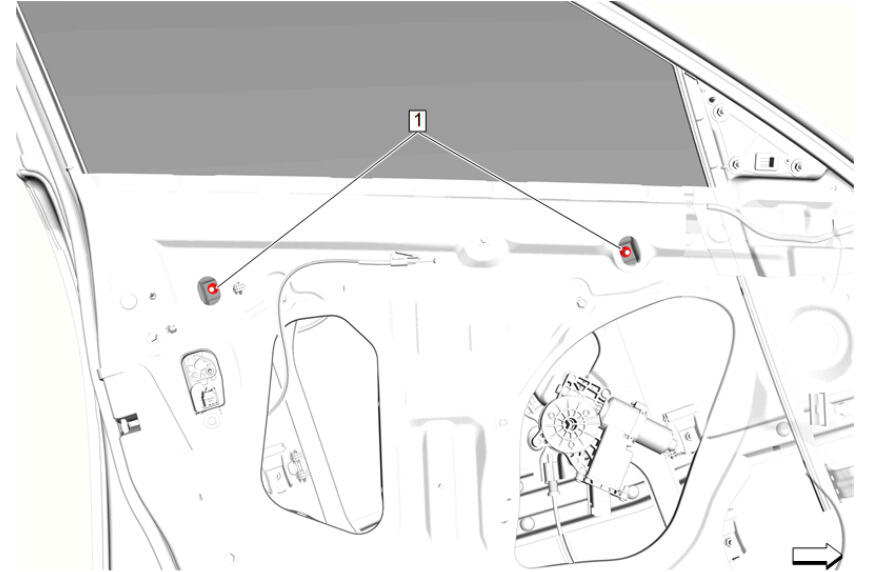

Place the window regulator in the full up position until window is seated into the front side door window regulator sash clamp.
Front Side Door Window Regulator Sash Clamp Nut (1) - Tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

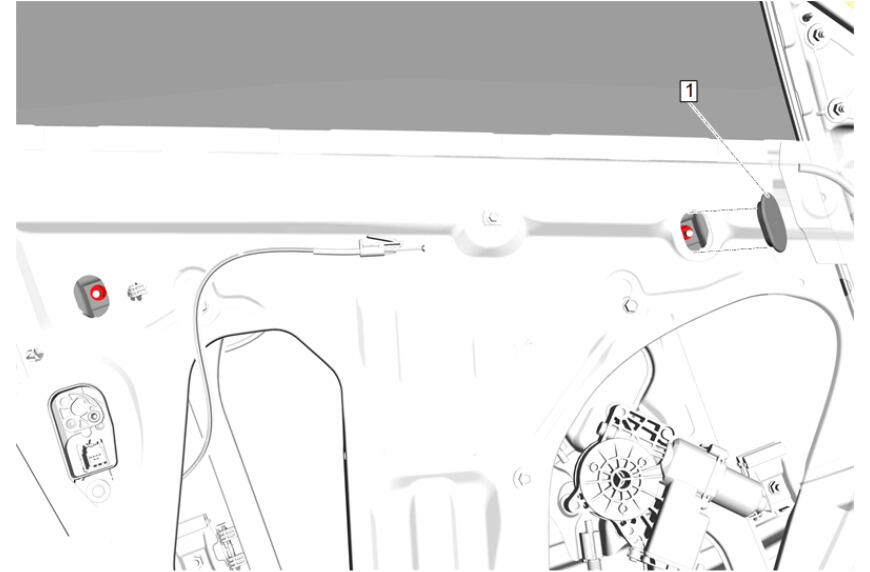

Front Side Door Access Hole Plug (1) - Install
Remove the tape.
Inspect the door window for proper operation before installing the door trim panel.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
Supplemental Inflatable Restraint System Description and Operation
Perform the necessary programming and setup procedure: Window Motor Programming - Express Function
