Fastener Specifications

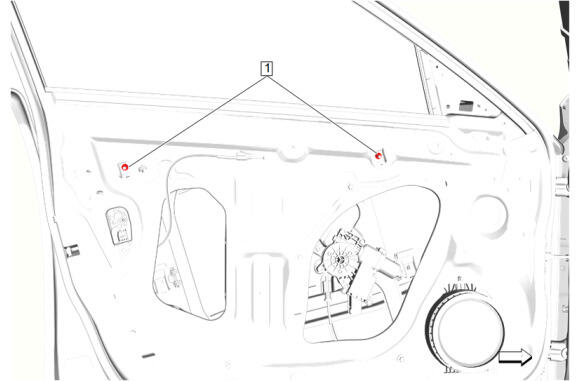

GM5509242Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Sash Clamp Nut [2x] - - 11 N.m (97 lb in) Front Side Door Window Replacement

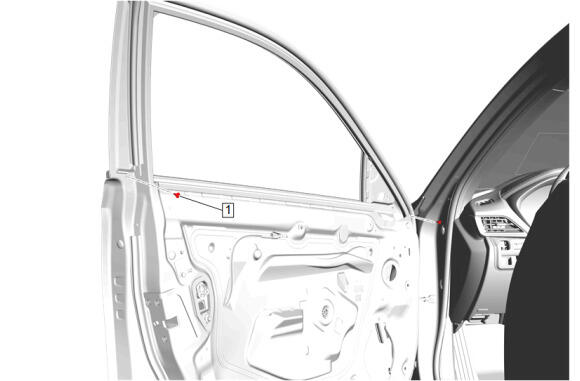

GM5507755Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

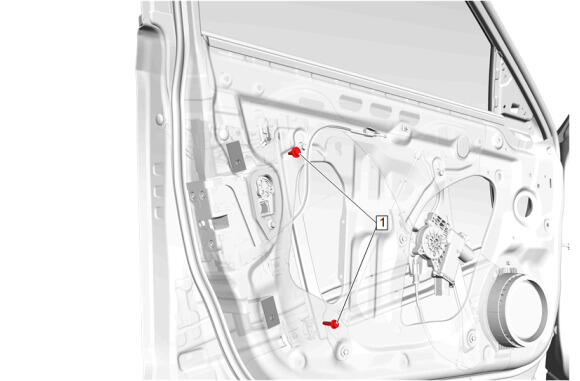

GM5500893Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - - 9 N.m (80 lb in) Front Side Door Window Channel Retainer Replacement

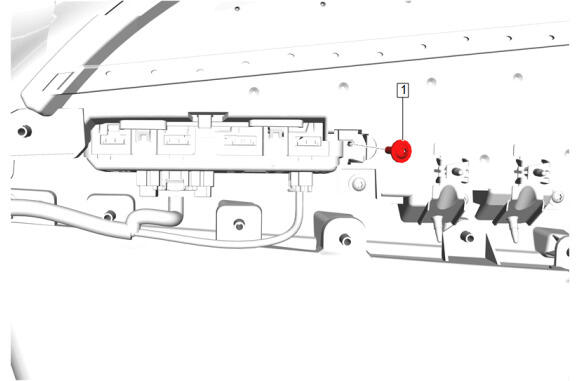

GM5507733Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Control Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Window Control Switch Replacement

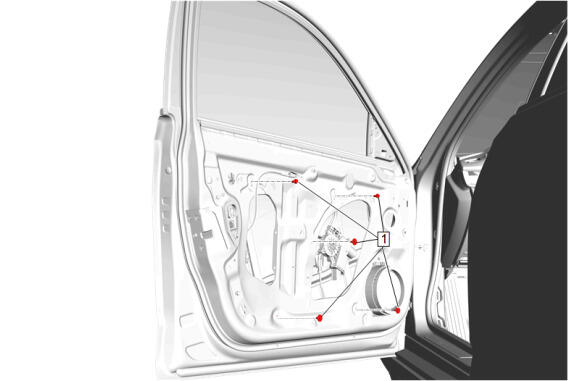

GM5509067Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Bolt [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

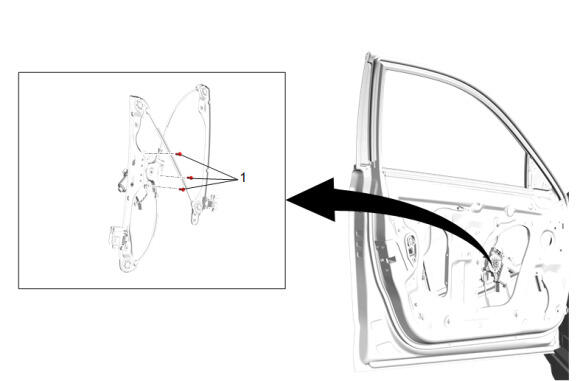

GM5508291Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 32 N.m (24 lb ft) Front Side Door Window Regulator Motor Replacement

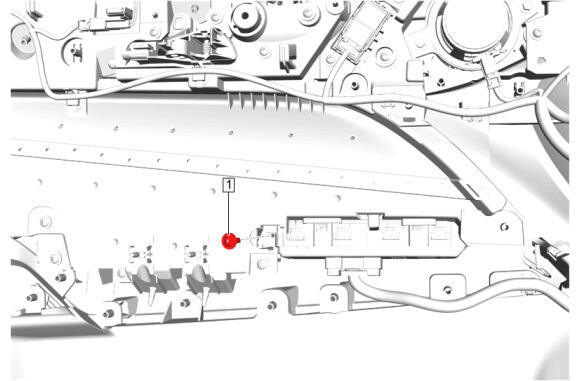

GM5507738Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Window Switch Replacement - Right Side

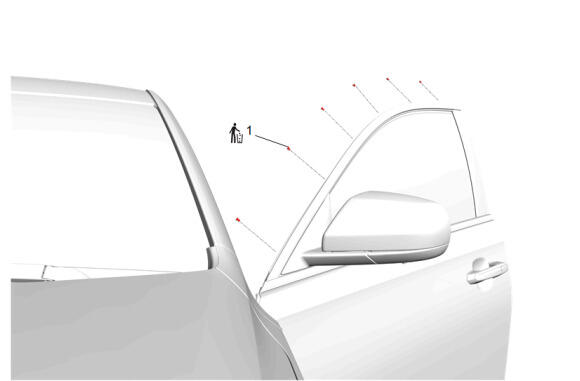

GM5509295Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [6x] Yes - - Front Side Door Window Upper Reveal Molding Replacement

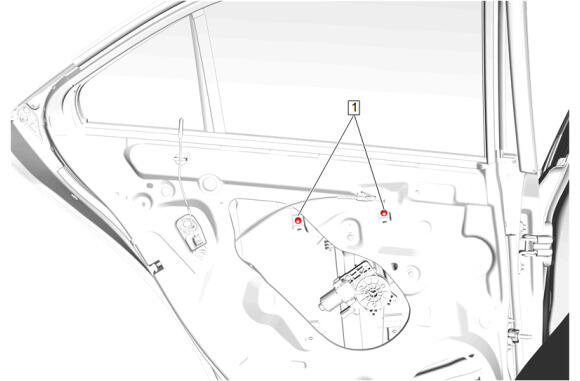

GM5509219Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Sash Clamp Nut [2x] - - 11 N.m (97 lb in) Rear Side Door Window Replacement

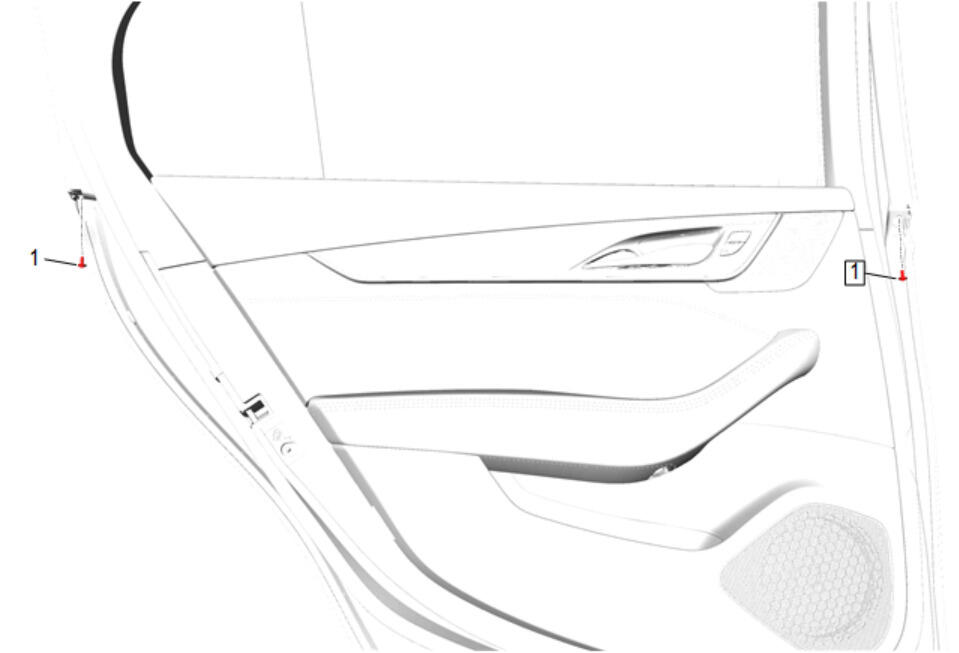

GM5318442Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

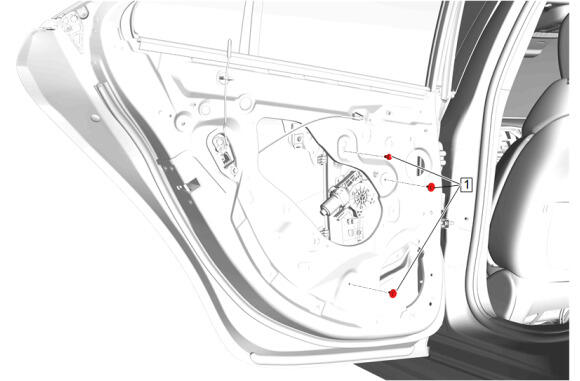

GM5509091Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Bolt [3x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement

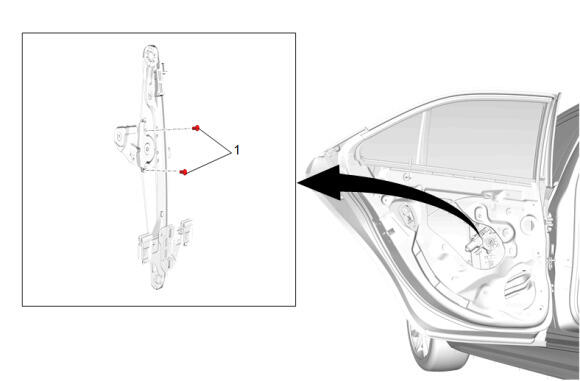

GM5508893Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Motor Replacement

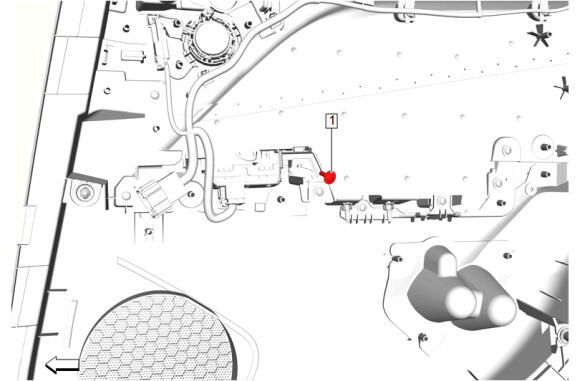

GM5509055Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Switch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Switch Bolt - - 2.5 N.m (22 lb in) Rear Side Door Window Switch Replacement

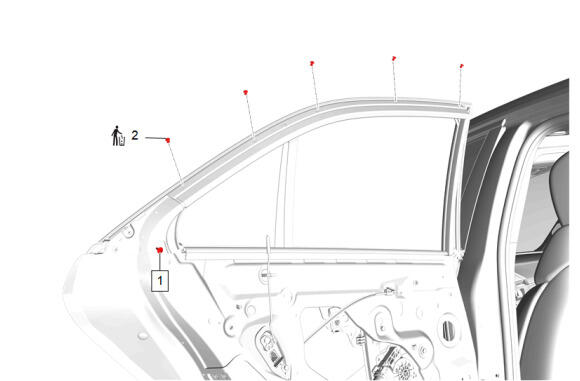

GM5509150Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Upper Reveal Molding Replacement
2 Rear Side Door Window Upper Reveal Molding Rivet
[5x]		 Yes - - Rear Side Door Window Upper Reveal Molding Replacement

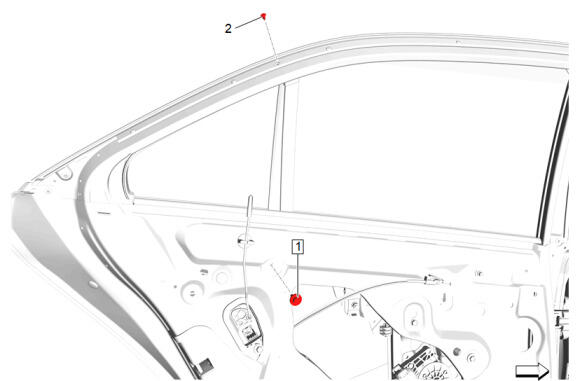

GM5509102Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Rear Channel Bolt - - 11 N.m (97 lb in) Rear Side Door Window Weatherstrip Replacement
2 Rear Side Door Window Weatherstrip Bolt - - 2.5 N.m (22 lb in) Rear Side Door Window Weatherstrip Replacement
