Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

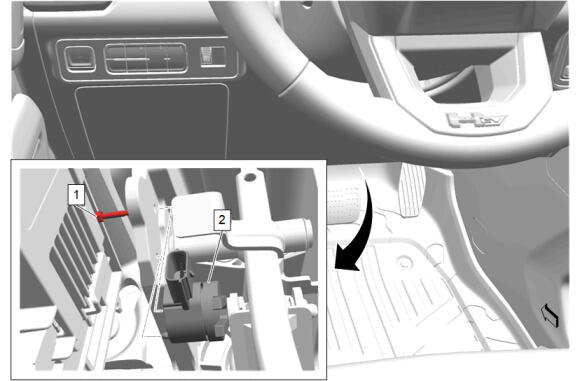

Brake Pedal Position Sensor (2) - Install
- Brake Pedal Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
CAUTION:
Refer to Fastener Caution .
