Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

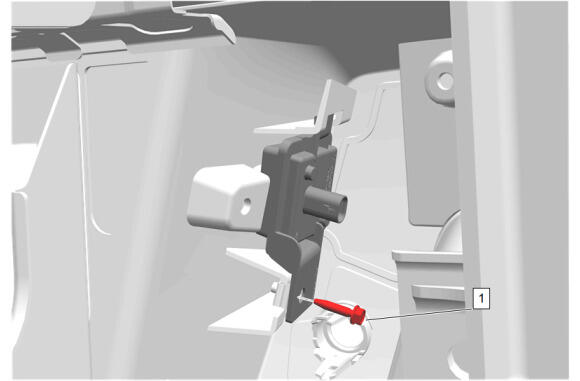

Brake Pedal Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 3 N.m (27 lb in) | Brake Pedal Position Sensor Replacement |

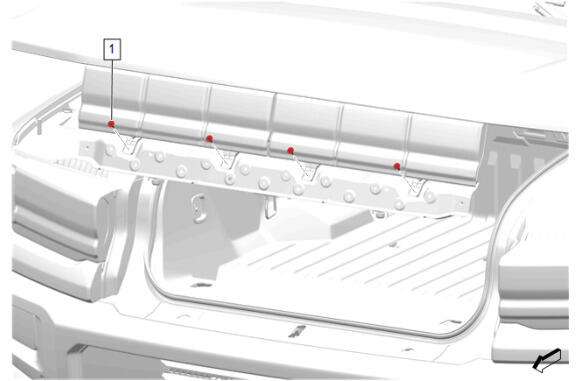

Front Decorative Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Decorative Lamp Nut [8x] | - | - | 4.7 N.m (42 lb in) | Front Decorative Lamp Replacement |
Front Decorative Lamp Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Decorative Lamp Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Decorative Lamp Replacement |

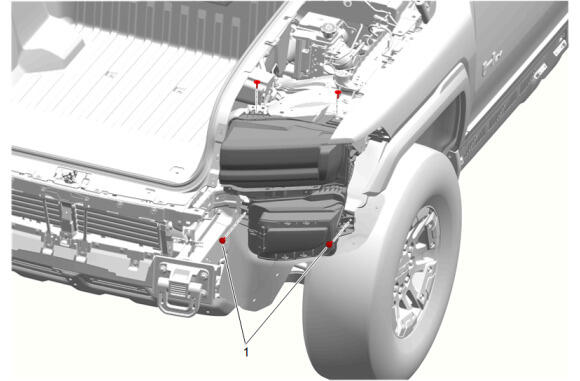

Front Headlamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [4x] | - | - | 9 N.m (80 lb in) | Front Headlamp Replacement |
Front Identification Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Identification Lamp Bolt | - | - | 9 N.m (80 lb in) | Front Identification Lamp Replacement |

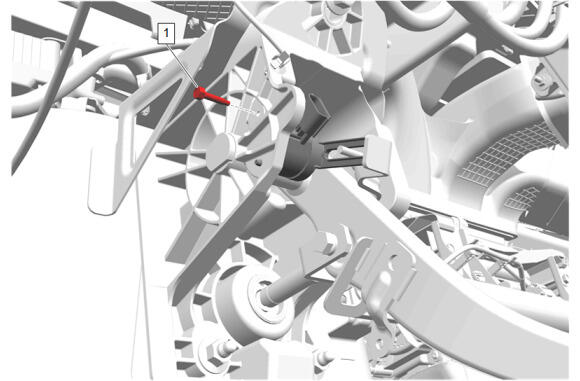

Front Suspension Automatic Forward Lighting Position Sensor Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Suspension Automatic Forward Lighting Position Sensor Nut | - | - | 9 N.m (80 lb in) | Front Suspension Automatic Forward Lighting Position Sensor Replacement |

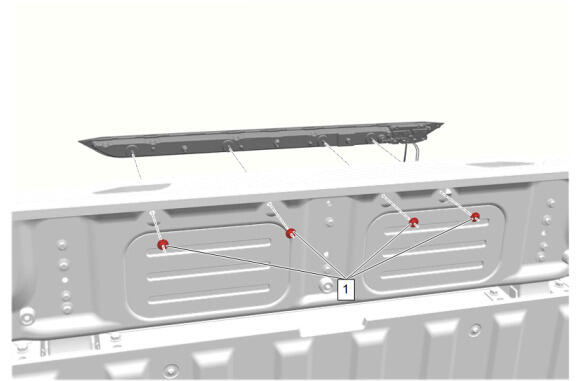

High Mount Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Signal Lamp Nut [4x] | - | - | 1.2 N.m (11 lb in) | High Mount Stop Lamp Replacement |

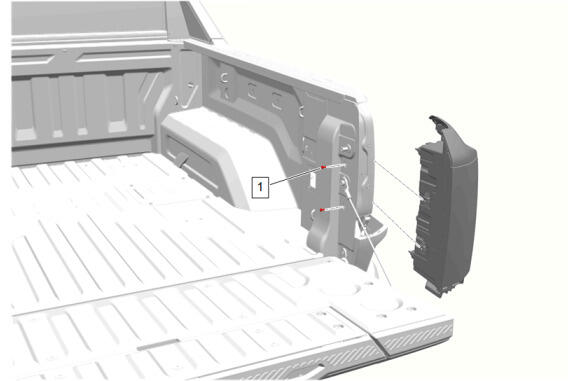

Rear Body Structure Stop Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement |

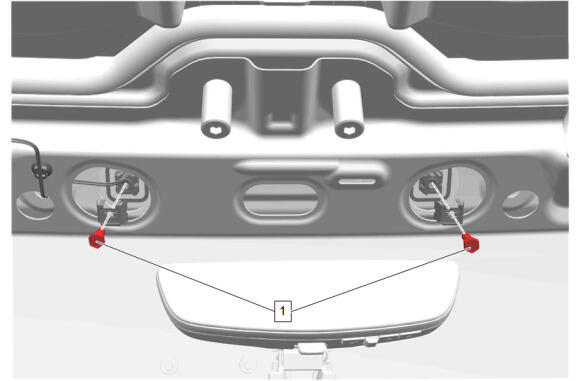

Rear License plate Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear License Plate Lamp Bolt | - | - | 2.5 N.m (22 lb in) | Rear License Plate Lamp Replacement |

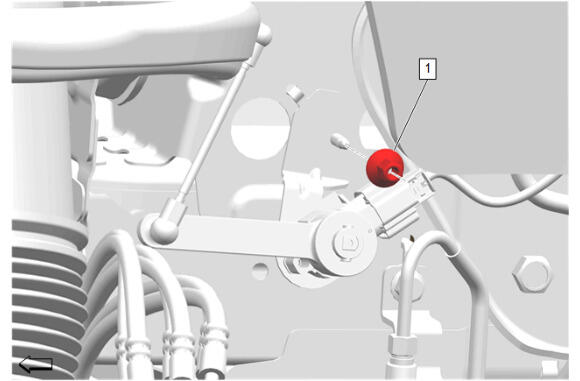

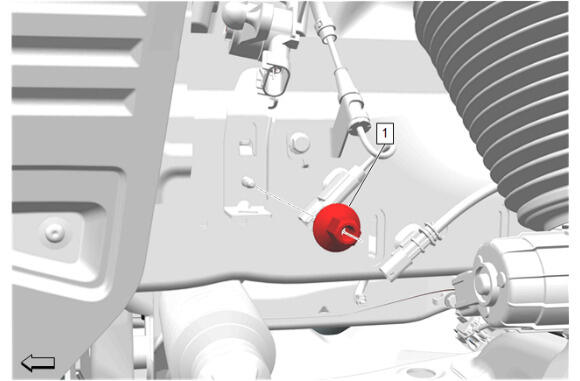

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut | - | - | 12 N.m (106 lb in) | Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement |
