Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

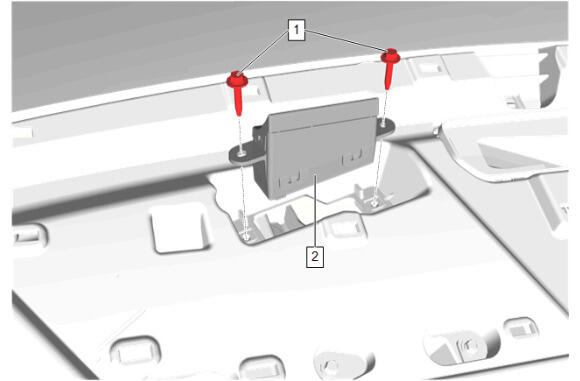

Forward Collision Alert Display (2) - Install

CAUTION:

Refer to Fastener Caution .

Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Connect the electrical connector.
Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Windshield Pillar Assist Handle Bolt- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
Windshield Pillar Assist Handle Cover- Left Side and Right Side (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Body Hinge Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]
Install the weatherstrip as necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Instrument Panel Outer Trim Cover- Left Side and Right Side (1) - Install [2x]
