Fastener Specifications

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

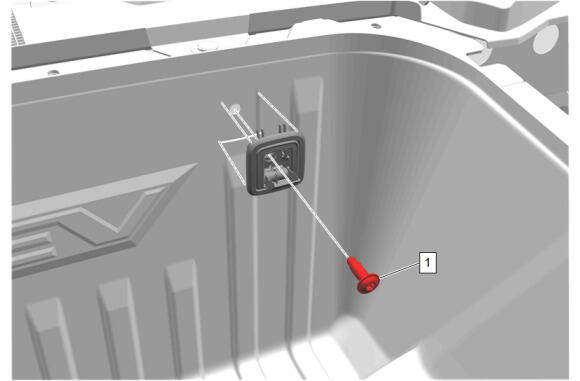

GM6126907Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt [4x] - - 15 N.m (11 lb ft) Cargo Tie Down Loop Replacement

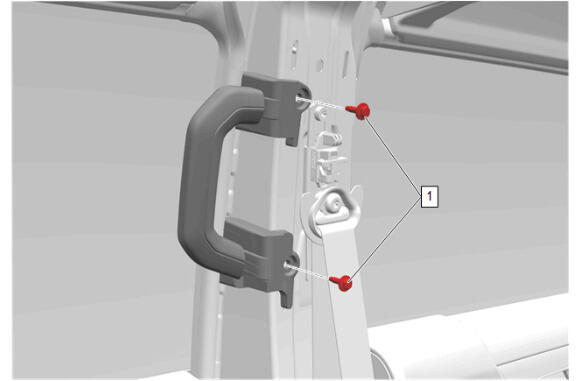

GM5807616Courtesy of GENERAL MOTORS COMPANY
Center Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Center Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Center Pillar Assist Handle Replacement
GM5787369Courtesy of GENERAL MOTORS COMPANY
Front Compartment Housing

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Trim Finish Compartment Support Nut [2x] - - 9 N.m (80 lb in) Front Trim Finish Compartment Replacement
GM5774935Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Front Side Door Armrest Bracket Replacement

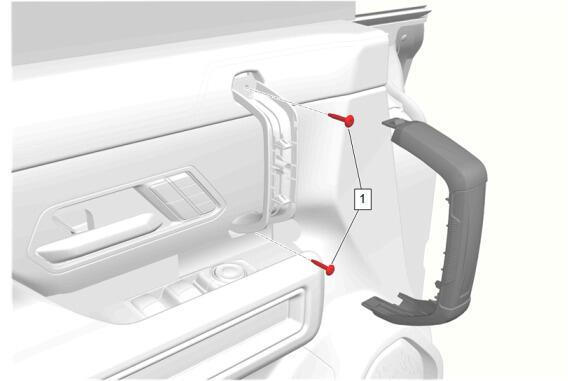

GM6051400Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Pull Handle Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement

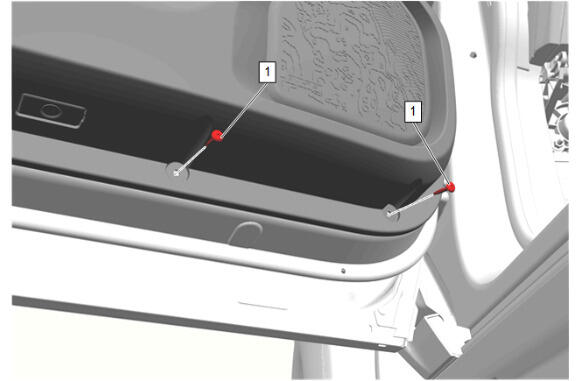

GM5766448Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement

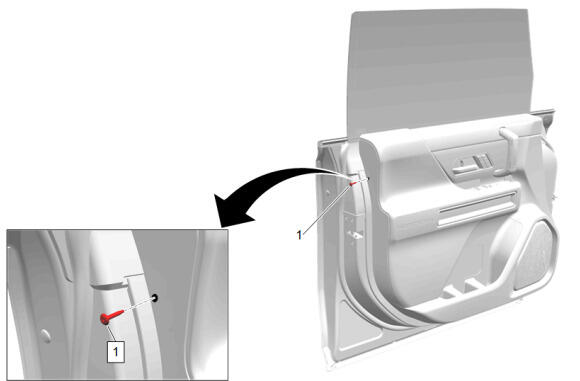

GM5983201Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim (Without Front Side Door Trim Bolt Cap)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Panel Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement

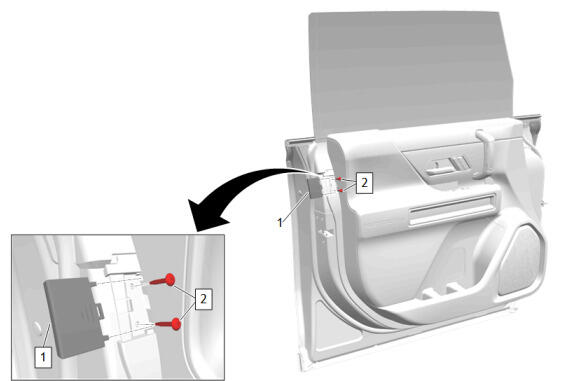

GM5983285Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim (With Front Side Door Trim Bolt Cap)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Replacement

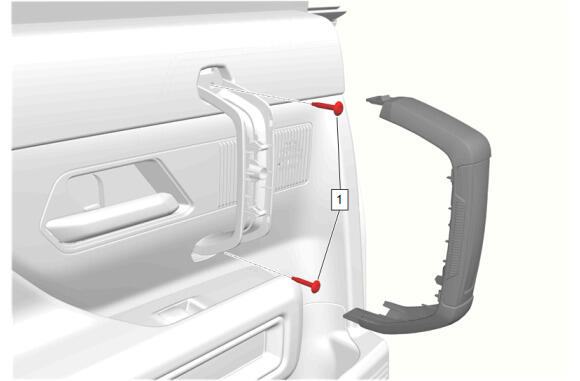

GM6051401Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bolt Cap

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement

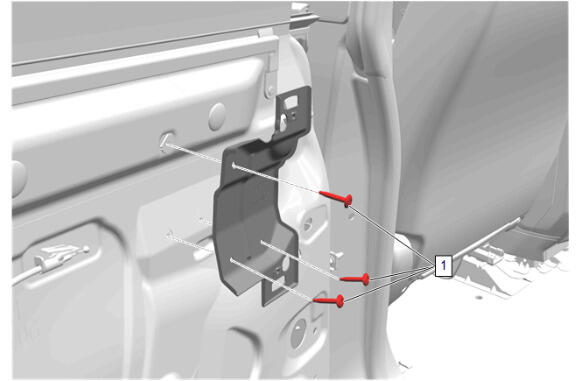

GM5795285Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Pull Cup Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Side Door Armrest Pull Cup Bracket Replacement

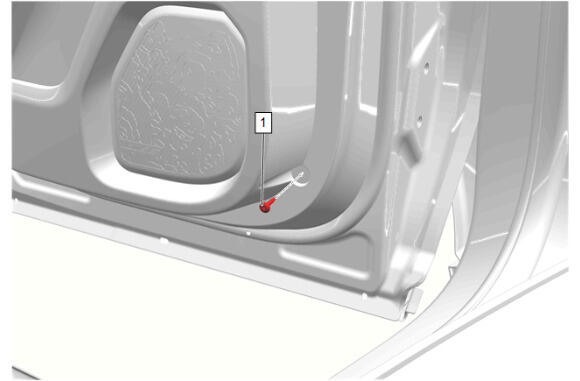

GM5775432Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Replacement

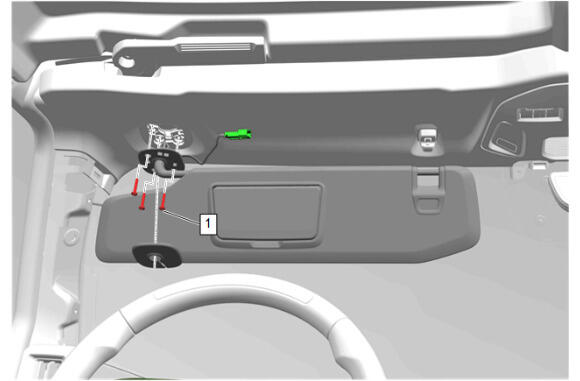

GM5795275Courtesy of GENERAL MOTORS COMPANY
Sunshade

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [3x] - - 2.5 N.m (22 lb in) Sunshade Replacement

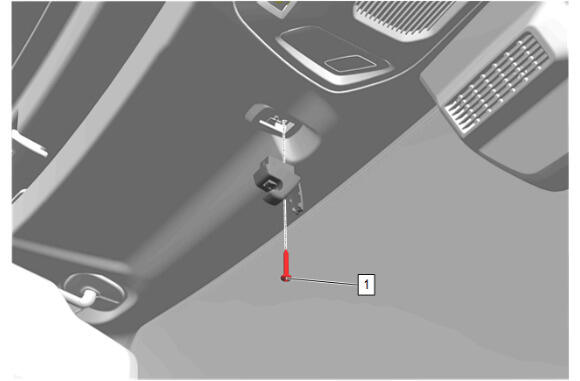

GM5795266Courtesy of GENERAL MOTORS COMPANY
Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement

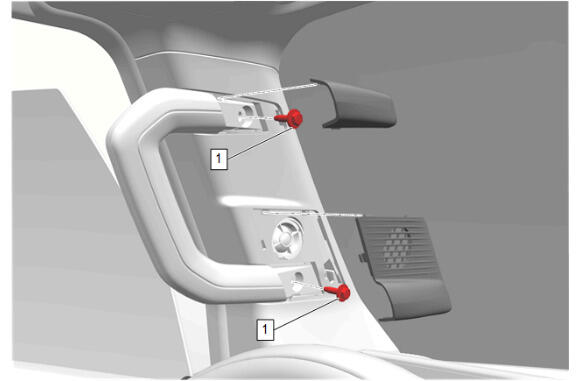

GM5833031Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Garnish Molding Replacement

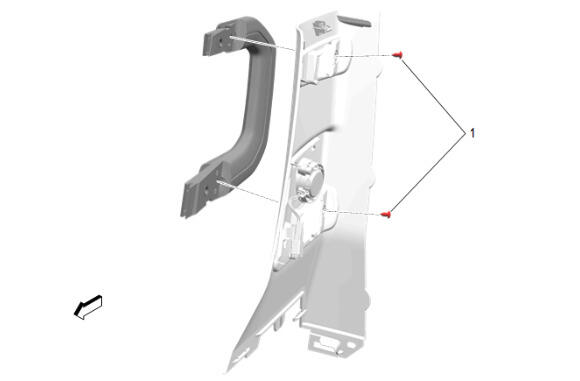

GM5794616Courtesy of GENERAL MOTORS COMPANY
Windshield Pillar Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Pillar Assist Handle Bolt [2x] - - 9 N.m (80 lb in) Windshield Pillar Assist Handle Replacement
