Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

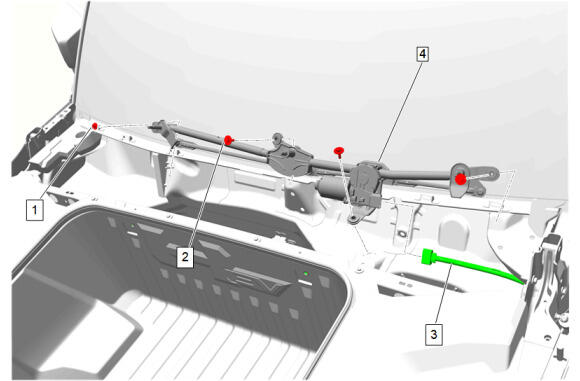

  1. GM5815509Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Wiper System Module (4) - Install

  2. Electrical Connector (3) - Connect
    3. CAUTION:

    Refer to Fastener Caution .

  3. Windshield Wiper System Module Bolt (2) - Install and tighten [3x] - Fastener Specifications
  4. Windshield Wiper System Module Nut (1) - Install and tighten - Fastener Specifications
  5. GM5814931Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Windshield Wiper System Module Shield (1) - Install

  6. GM5814927Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Install air inlet grille panel (2) in plane of windshield wiper transmission pivot shafts.

  7. Ensure all air inlet grille panel retaining clips are fully seated and verify there is no gap between the panel and windshield.
  8. Windshield Washer Nozzle Hose - Install
  9. Air Inlet Grille Panel Retainer (1) - Install [4x]
  10. GM5810476Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.

  11. Windshield Wiper Arm Nut (2) - Install and tighten [3x] - Fastener Specifications
  12. Windshield Wiper Arm Finish Cap (1) - Install [3x]
  13. GM5810483Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  14. Lubricate the windshield with clean washer fluid.
  15. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  16. Ensure the windshield wipers are in the full park position.
  17. GM5810472Courtesy of GENERAL MOTORS COMPANY

    Front Fender Ornamentation Vent- Left Side and Right Side (1) - Install [2x]

  18. Front Fender Ornamentation Vent Bolt- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  19. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield- Left Side and Right Side (1) - Install [2x]

  20. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Turn the 6 front compartment sight shield retainers (1) a quarter turn clockwise to install the shield on both sides.
