Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

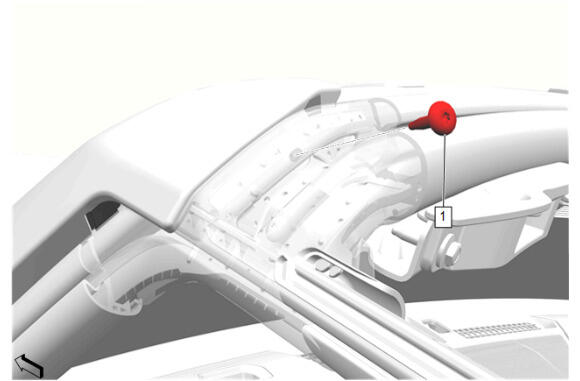

Body Side Upper Front Applique
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Side Upper Front Applique Bolt | - | - | 9 N.m (80 lb in) | Body Side Upper Front Applique Replacement |
Front Bumper Fascia Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front License Plate Bracket Replacement |
Front Fender Ornamentation Vent
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Fender Ornamentation Vent Bolt | - | - | 2.5 N.m (22 lb in) | Front Fender Ornamentation Vent Replacement |
Front Fender Paint Protector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Fender Paint Protector Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Front Fender Paint Protector Replacement |
Front Grille
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Grille Replacement |
Hood Center Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Center Molding Nut [14x] | - | - | 4.7 N.m (42 lb in) | Hood Center Molding Replacement |
Hood Front Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Front Molding Nut [2x] | - | - | 4.7 N.m (42 lb in) | Hood Front Molding Replacement |
Roof Rear Spoiler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rear Spoiler Bolt [4x] | - | - | 9 N.m (80 lb in) | Roof Rear Spoiler Replacement |
| 2 | Roof Rear Spoiler Nut [14x] | - | - | 9 N.m (80 lb in) | Roof Rear Spoiler Replacement |
Rear Tire Front Air Deflector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Tire Front Air Deflector Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Rear Tire Front Air Deflector Replacement |
Windshield Frame Weatherstrip Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Frame Weatherstrip Bolt | - | - | 2.5 N.m (22 lb in) | Body Side Upper Front Applique Replacement |
