Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Windshield Washer Solvent Container (1) - Install
Courtesy of GENERAL MOTORS COMPANY

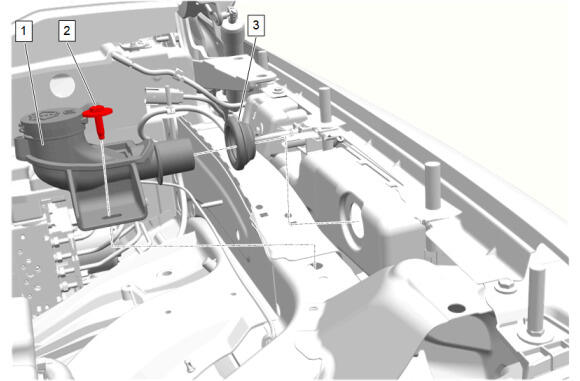

Windshield Washer Solvent Container Filler Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

CAUTION:
Refer to Fastener Caution .

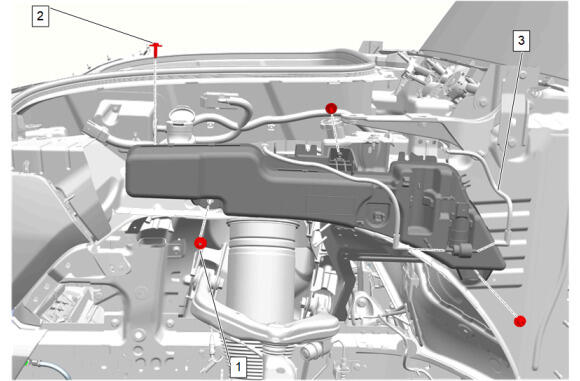

Windshield Washer Solvent Container Nut (1) - Install and tighten [2x] - Fastener Specifications
Windshield Washer Solvent Container Bolt (2) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Refill the windshield washer solvent container.
Check for leaks.
Courtesy of GENERAL MOTORS COMPANY

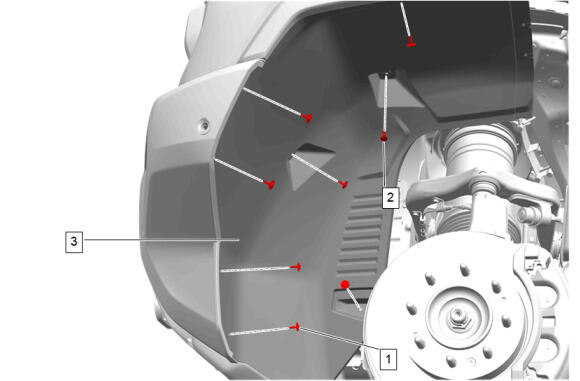

Front Wheelhouse Liner (3) - Install
Front Wheelhouse Liner Retainer (2) - Install
Front Wheelhouse Liner Bolt (1) - Install and tighten [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Rear Liner (3) - Install
Front Wheelhouse Liner Bolt (1) - Install and tighten [6x] - Fastener Specifications
Front Wheelhouse Liner Retainer (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Fender Paint Protector (2) - Install
Front Fender Paint Protector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

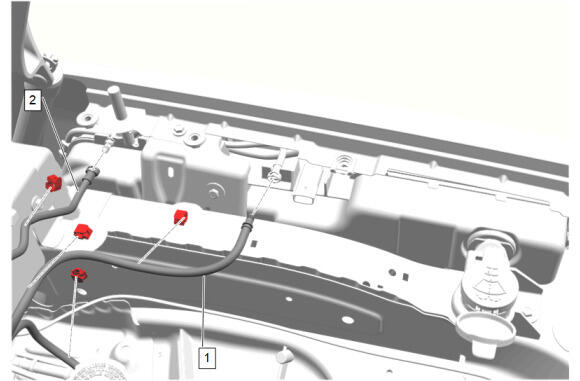

Underbody Camera Nozzle Extension Hose (1) - Install
Windshield Washer Nozzle Hose (2) - Install
Install the retainers.
Remove the drain pan from under the windshield washer solvent container.

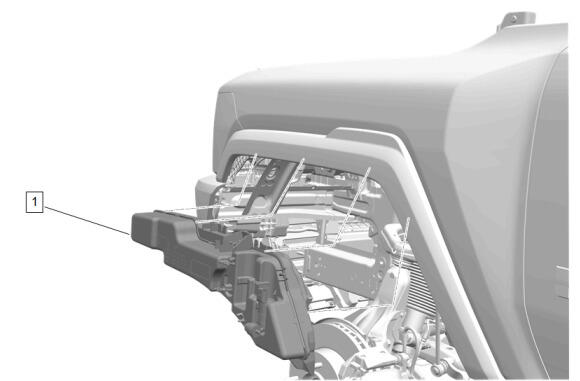

Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Turn the 3 front compartment sight shield retainers (1) a quarter turn clockwise to install.
