Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Some components not shown for graphic clarity.

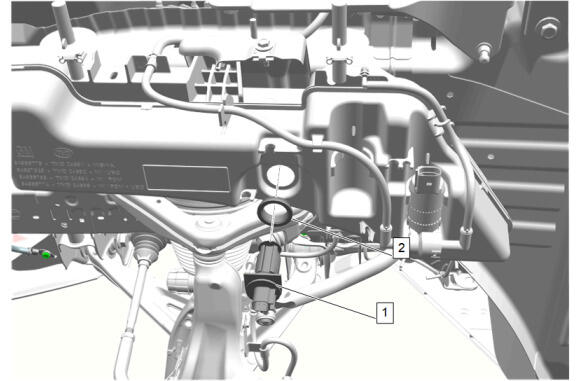

When installing the windshield washer solvent container level sensor grommet (2), use full strength windshield washer fluid as a lubricant on the grommet.
- Windshield Washer Solvent Container Level Sensor Grommet (2) - Install
- Windshield Washer Solvent Container Level Sensor (1) - Install
- Connect the electrical connector.
- Refill the windshield washer solvent container.
- Check for leaks.
- Remove the drain pan.

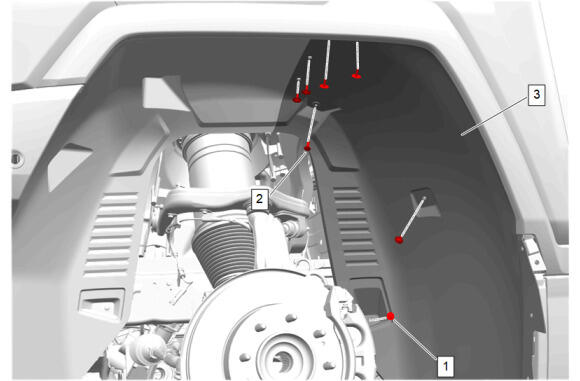

Front Wheelhouse Rear Liner (3) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Front Wheelhouse Liner Retainer (2) - Install

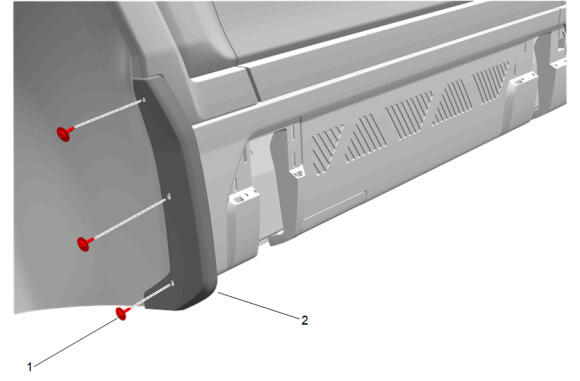

Front Fender Paint Protector (2) - Install
- Front Fender Paint Protector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution
