Front Side Door Window Regulator Motor Replacement

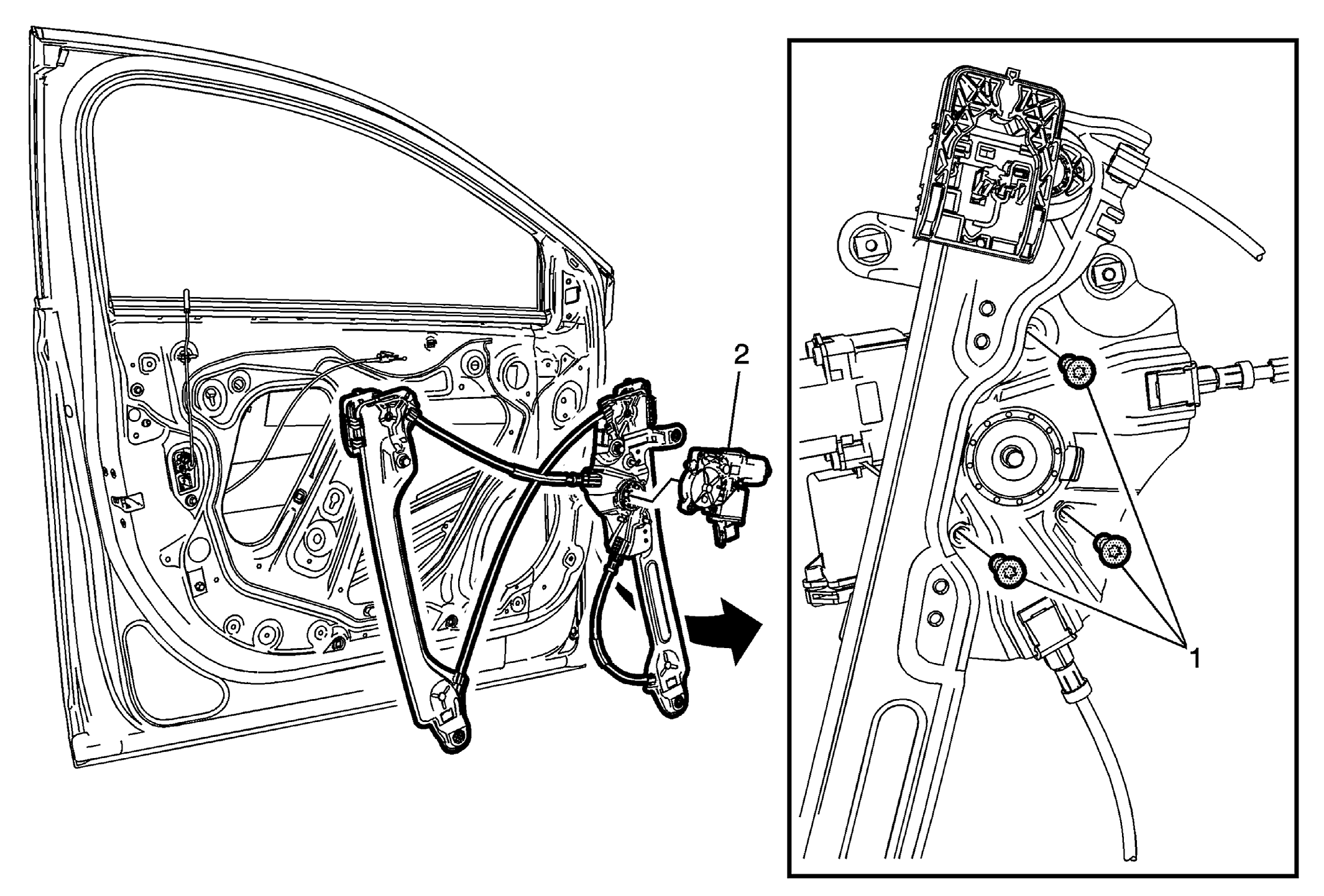

Fig 1: Front Side Door Window Regulator Motor & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Front Side Door Window Regulator Motor NOTE: Inspect the door window for proper operation before installing the door trim panel.
