Front Side Door Window Regulator Replacement

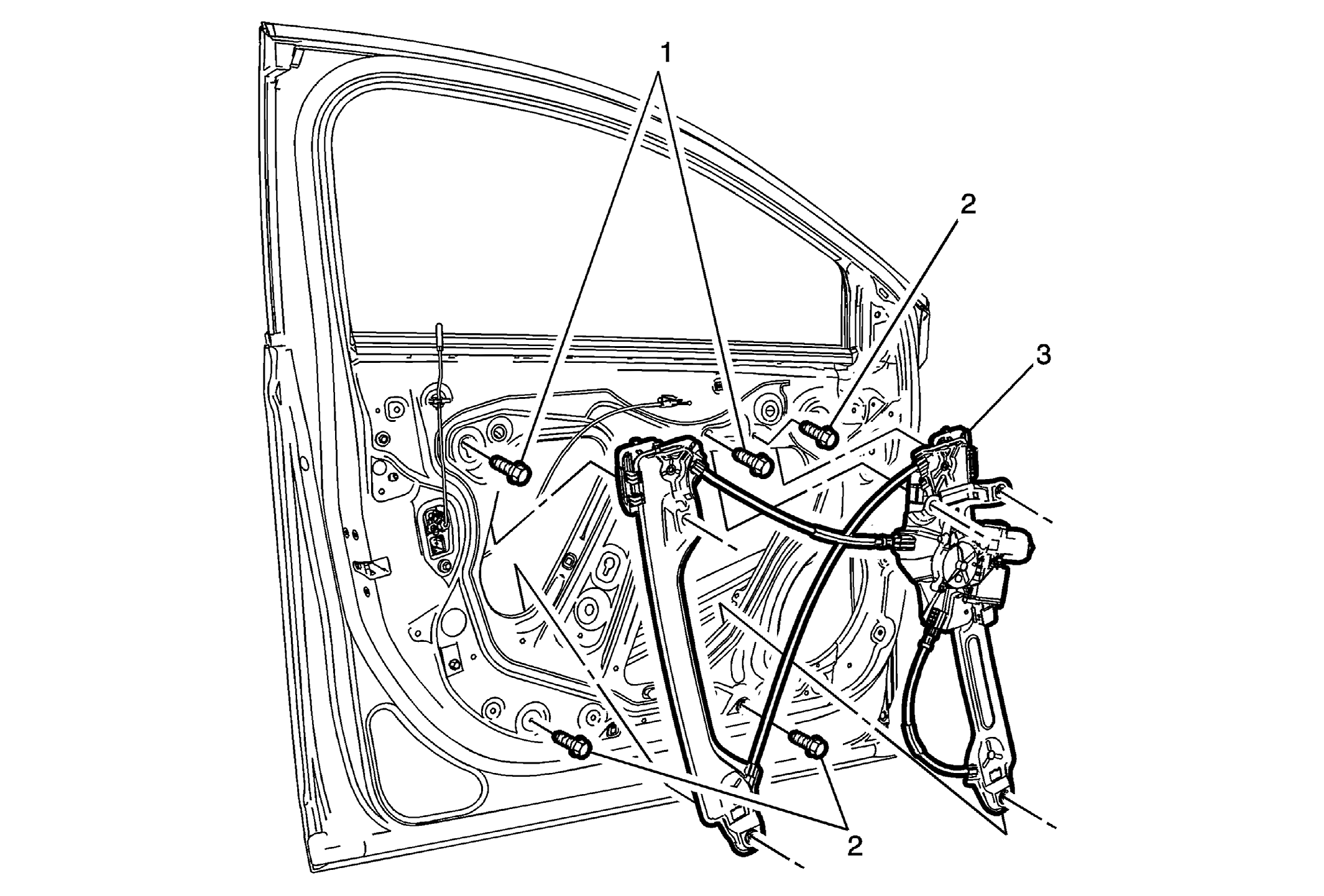

Fig 1: Front Side Door Window Regulator & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Window Regulator Fastener (Qty: 2) WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Position the window to access the 2 window guide retainers. Refer to Front Side Door Window Replacement . Push the window to the full up position and tape in place. NOTE: Leave the two upper bolts in the window regulator for alignment when installing. It maybe necessary to transfer the bolts if replacing the window regulator. Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Bolt (Qty: 3) Procedure Disconnect the front side door window regulator electrical connector. Tighten 10 N.m (89 lb in)
3	Front Side Door Window Regulator Procedure Transfer the power window motor and program after installing in the vehicle. Refer to Window Motor Programming - Express Function . NOTE: Inspect the door window for proper operation before installing the door trim panel.
