Installation Procedure

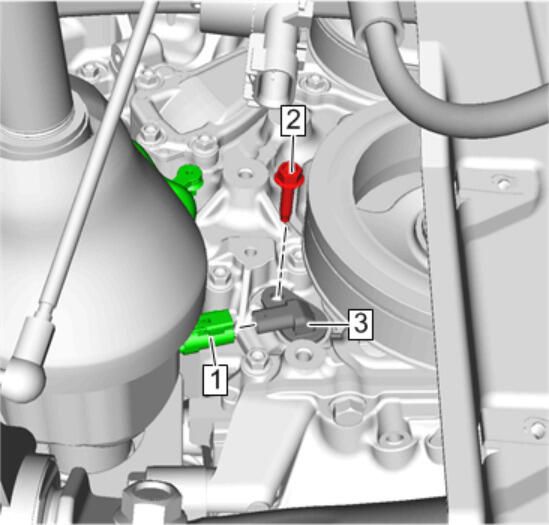

    Fig 1: Engine Wiring Harness, Oil Pump Flow Control Solenoid Valve Harness And Bolt
    GM4321331Courtesy of GENERAL MOTORS COMPANY
  1. Using the mechanics wire, guide the oil pump flow control solenoid valve harness (3) into place, then remove the wire.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Oil Pump Flow Control Solenoid Valve Harness Bolt (2) to 15 N.m (11 lb ft)
  3. Connect Engine Wiring Harness (1)
  4. Install Front Compartment Splash Shield - Right Side. Refer to Front Compartment Splash Shield Replacement

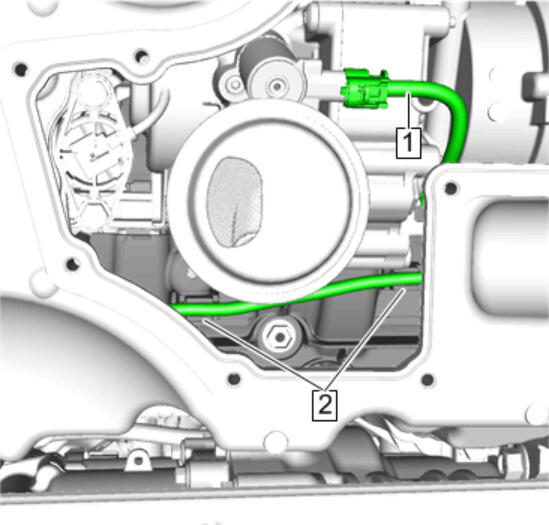

    5. Fig 2: Oil Pump Flow Control Solenoid Valve Harness And Crankshaft Oil Deflector
    GM4321321Courtesy of GENERAL MOTORS COMPANY
  5. Install Oil Pump Flow Control Solenoid Valve Harness (1) @ Crankshaft Oil Deflector (2)

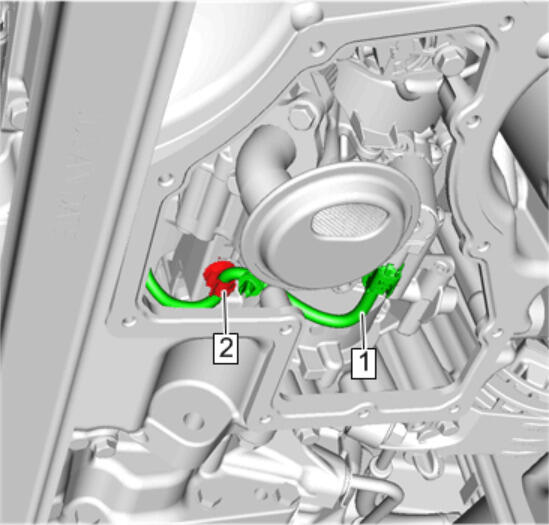

    6. Fig 3: Oil Pump Flow Control Solenoid Valve Harness And Retainer
    GM4321311Courtesy of GENERAL MOTORS COMPANY
  6. Install Oil Pump Flow Control Solenoid Valve Harness (1) @ Retainer (2)

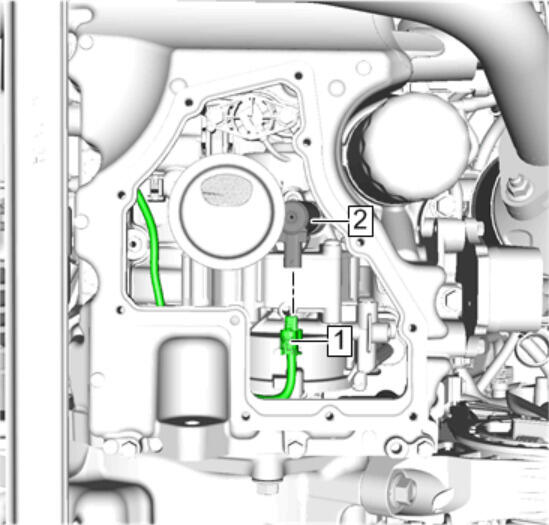

    7. Fig 4: Oil Pump Flow Control Solenoid Valve And Harness Connector
    GM4321302Courtesy of GENERAL MOTORS COMPANY
  7. Connect Oil Pump Flow Control Solenoid Valve Harness (1) @ Oil Pump Flow Control Solenoid Valve (2)
  8. Install Lower Oil Pan. Refer to Lower Oil Pan Replacement
