Front Compartment Splash Shield Replacement

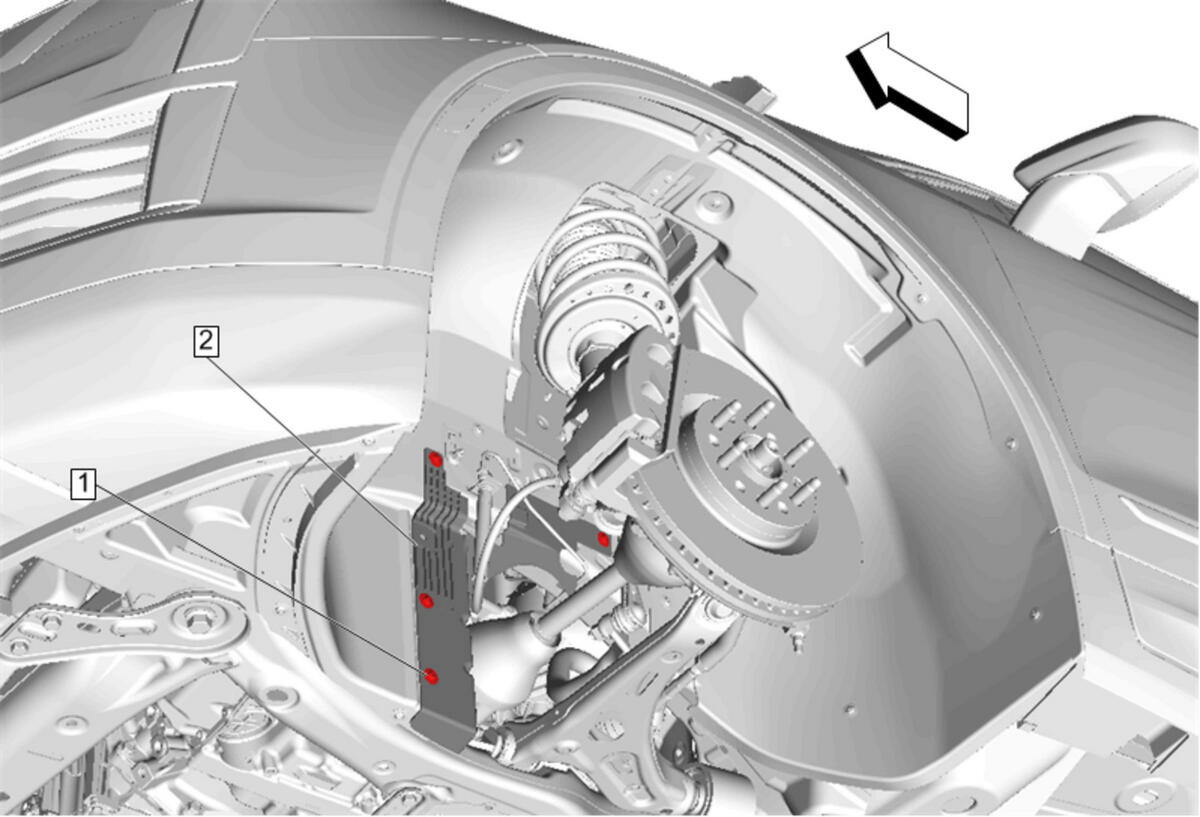

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Front Compartment Splash Shield Bolt (Qty: 24)
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Splash Shield
NOTE:
Detach the level sensor wiring harness retainer from the front compartment splash shield. |
