Sunroof Sunshade Switch Replacement

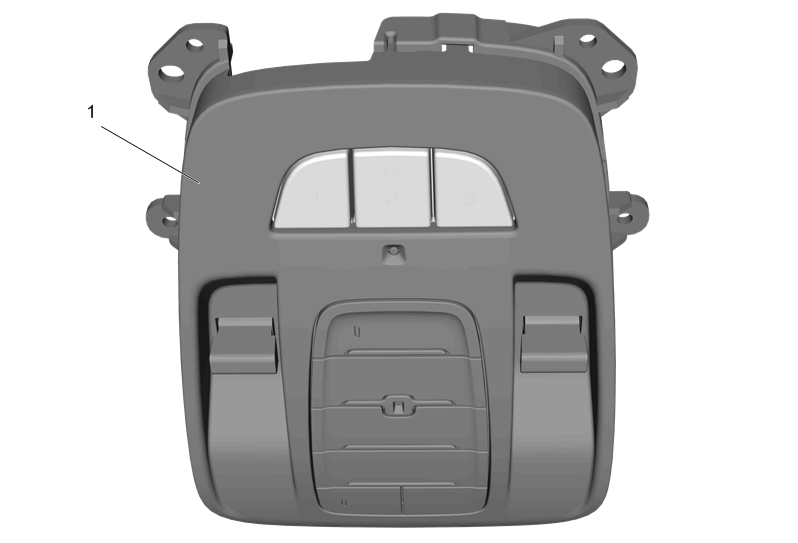

Fig 1: Sunroof Sunshade Switch
GM4589156Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Sunroof Sunshade Switch

Procedure

  1. Release the tabs and remove the switch.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
