Roof Console Replacement

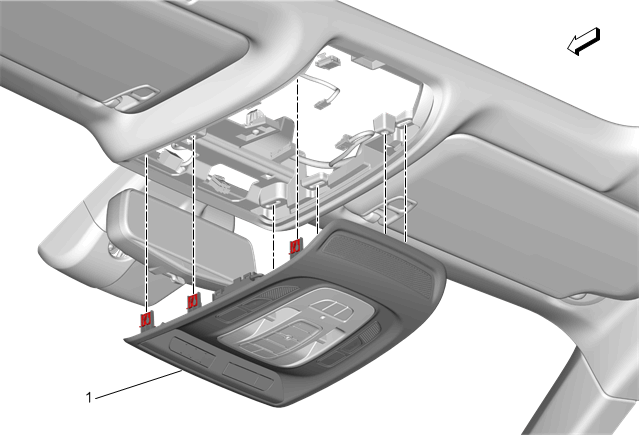

Fig 1: Roof Console
GM4252572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Roof Console

Procedure

  1. Grasp the roof console on both sides and pull down to disengage the clips.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
