Communication Center Call Switch Replacement

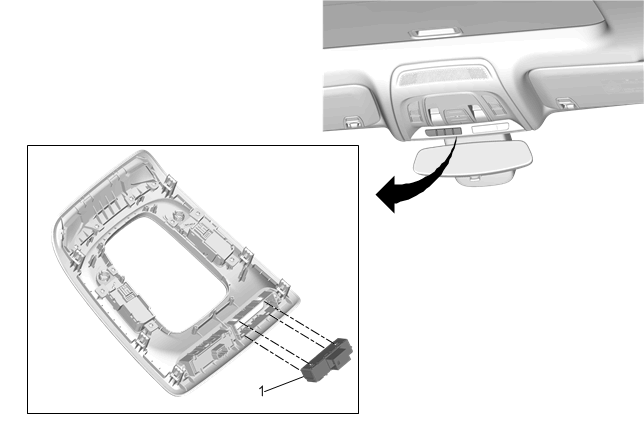

Fig 1: Communication Center Call Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Communication Center Call Switch Procedure  Release the 4 tabs on the switch to remove from the roof console.
