Front Side Door Window Regulator Motor Replacement

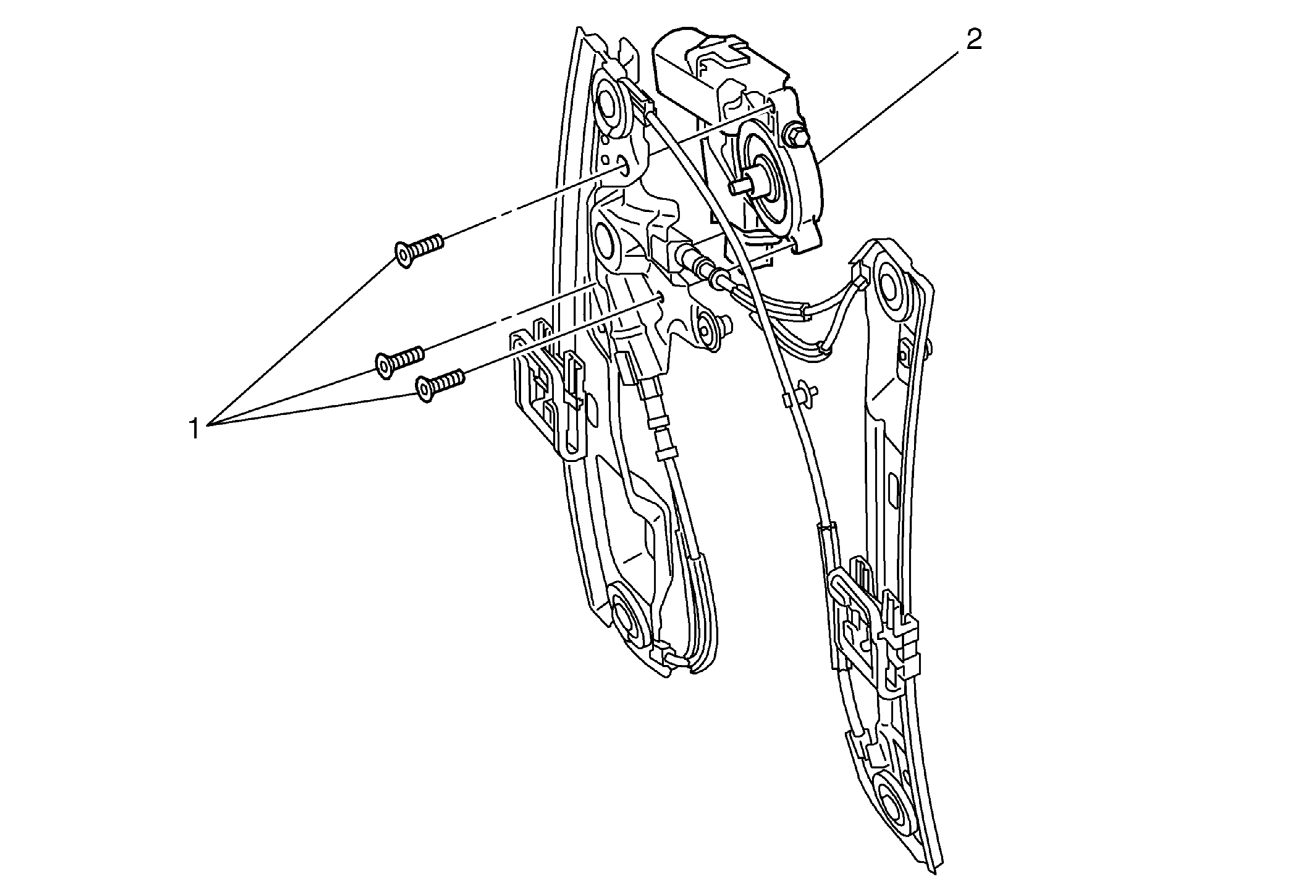

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the front side door trim panel. Refer to Front Side Door Trim Replacement Release the door window from the guide retaining clips. Refer to Front Side Door Window Replacement Remove the front side door window regulator. Front Side Door Window Regulator Replacement
1	Front Side Door Window Regulator Motor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure After releasing the window guide retainers, tape the window to the upper door frame before removing the regulator bolts. Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Motor Procedures Disconnect the electrical connector. Transfer all parts as necessary.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Remove the front side door trim panel. Refer to Front Side Door Trim Replacement
Release the door window from the guide retaining clips. Refer to Front Side Door Window Replacement
Remove the front side door window regulator. Front Side Door Window Regulator Replacement

Front Side Door Window Regulator Motor Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure
After releasing the window guide retainers, tape the window to the upper door frame before removing the regulator bolts.
Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator Motor

Procedures

Disconnect the electrical connector.
Transfer all parts as necessary.
