Installation Procedure

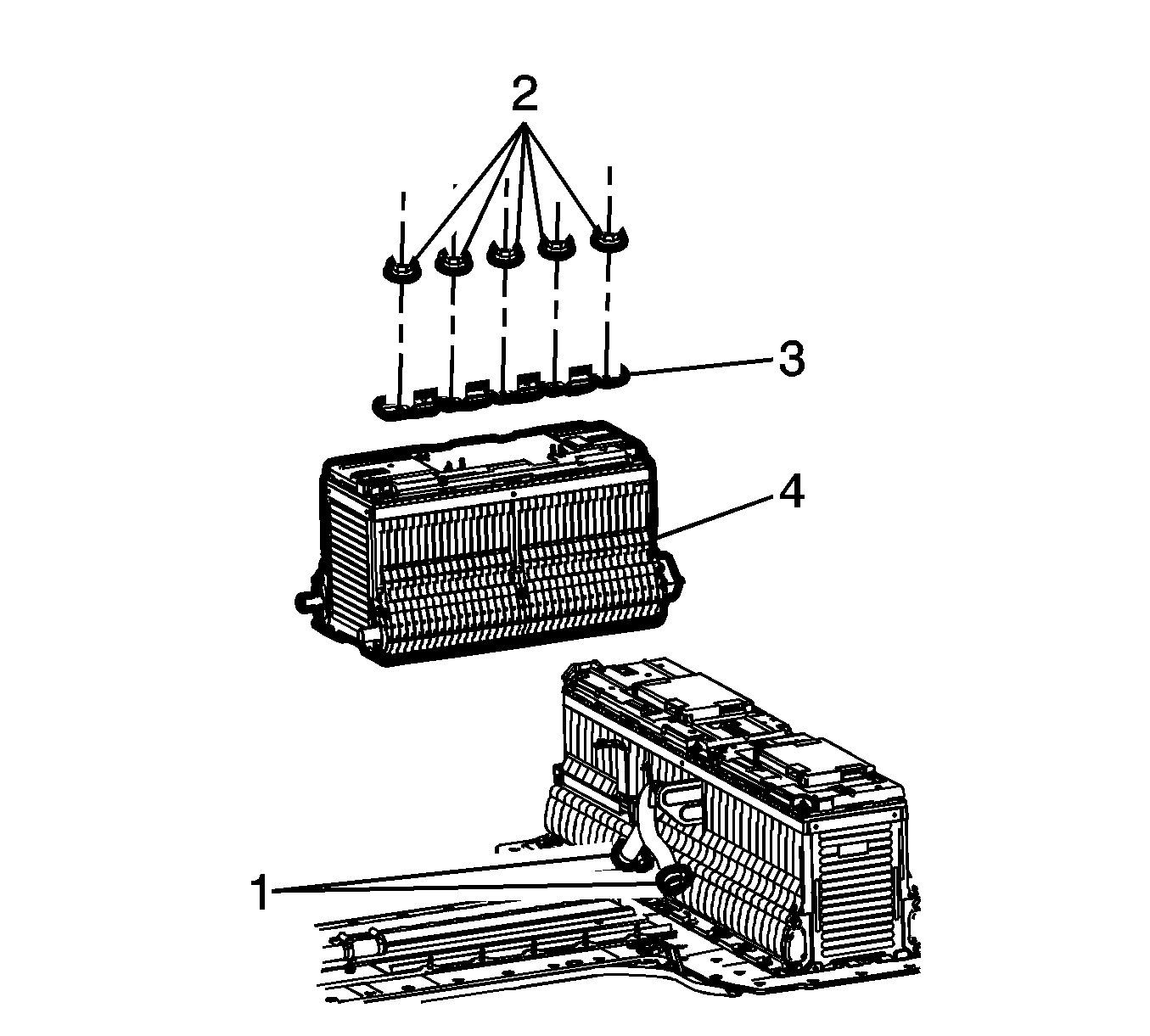

    Fig 1: Battery Hold Down And Battery Section
    GM2443601Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery cell (4) on the trace markings inscribed from the battery cell removal step.
  2. CAUTION:

    Refer to Fastener Caution .

  3. Install the battery hold down (3) and tighten the hold down fasteners (2) to 9 N.m (80 lb in).
  4. Connect the battery cell 2 to battery cell 3 hoses to battery cell 2 (4) and tighten the hose clamps (1) to 2 N.m (18 lb in).
  5. Fig 2: Clamps
    GM3766007Courtesy of GENERAL MOTORS COMPANY
  6. On both hoses joining cell battery 1 to cell battery 2, slide the hoses (3) onto battery cell 2 tubes tighten the clamps (1) to 2 N.m (18 lb in).
  7. Remove the EL 50325  High Voltage Battery Terminal Cover.

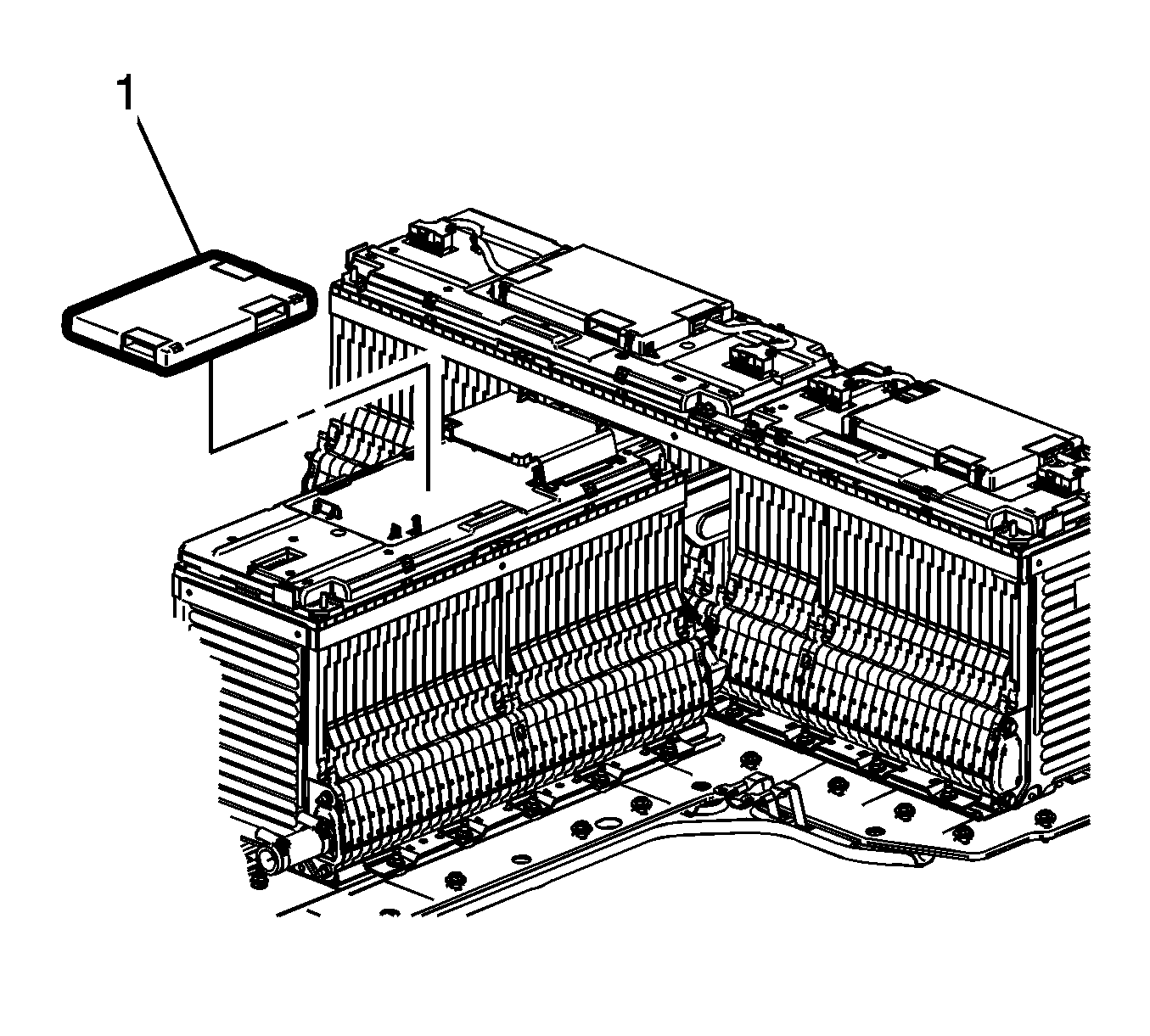

  8. Fig 3: Battery Interface Control Module
    GM2443594Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery interface control module (1).

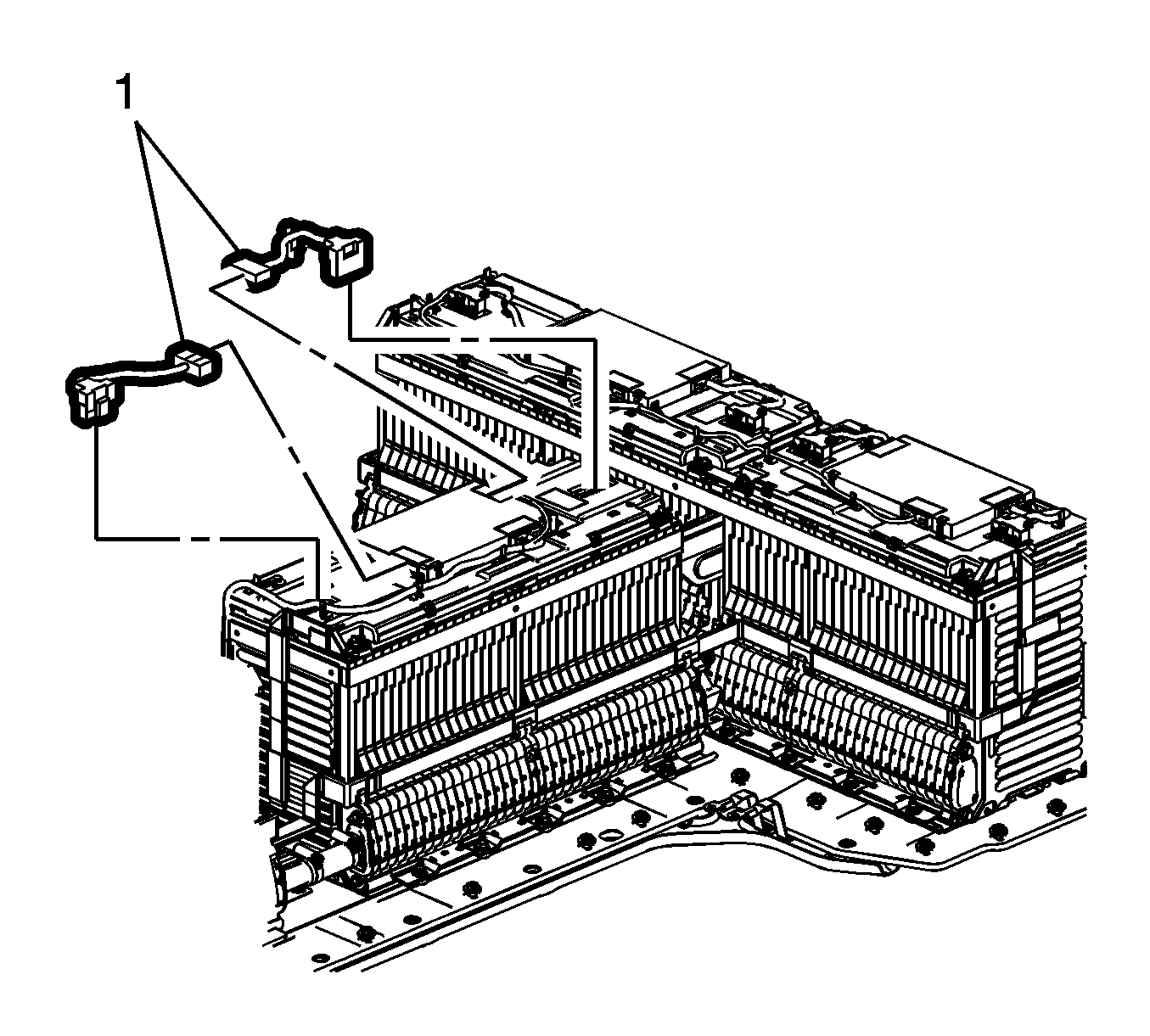

  10. Fig 4: Auxiliary Battery Wiring Harness
    GM2443582Courtesy of GENERAL MOTORS COMPANY
  11. Install the auxiliary battery wiring harness (1).

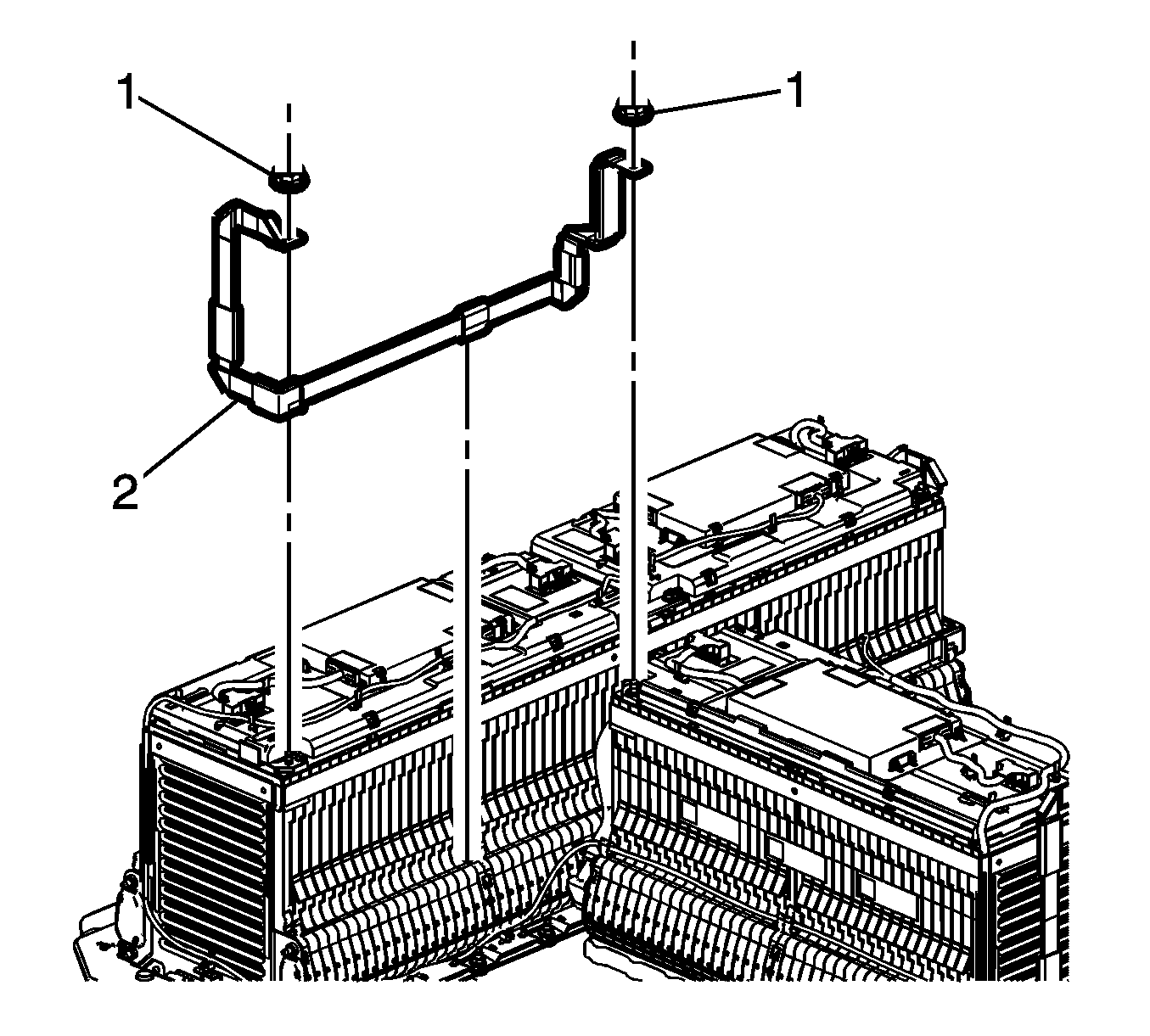

  12. Fig 5: Bus Bar And Battery Cable
    GM2443622Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Critical high voltage fastener. Perform second torque verification check following re-assembly.

  13. Install the battery cable (2).

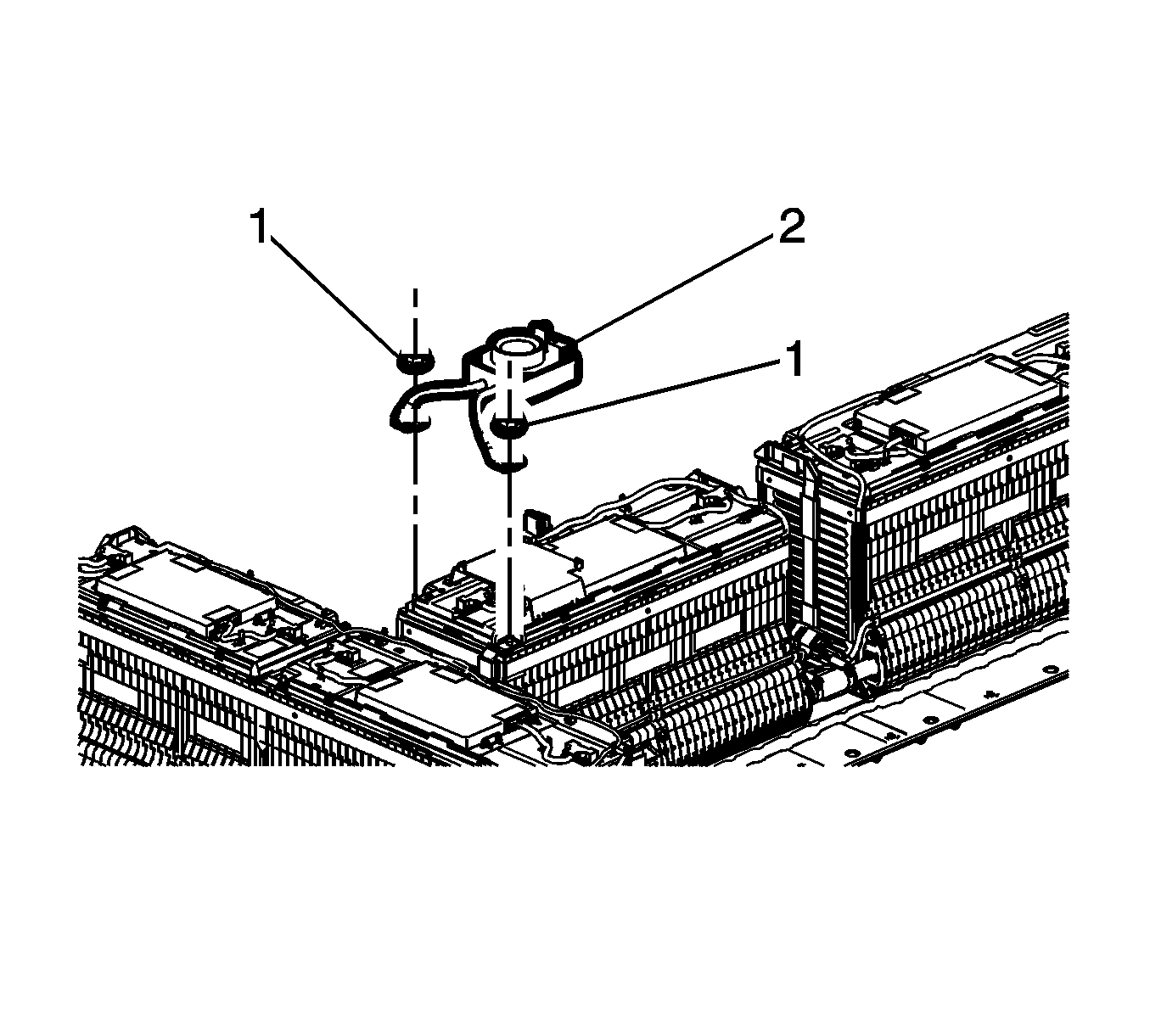

  14. Fig 6: Connector Housing And Fasteners
    GM2443556Courtesy of GENERAL MOTORS COMPANY
  15. Install the connector housing (2) and tighten the housing fasteners (1) to 9 N.m (80 lb in).
  16. Fig 7: Current Sensor And Fasteners
    GM2443365Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Critical high voltage fastener. Perform second torque verification following re-assembly.

  17. Install the current sensor (2) and tighten the current sensor fasteners (1) to 9 N.m (80 lb in).
  18. Fig 8: Battery Energy Control Module Wiring Harness
    GM2443350Courtesy of GENERAL MOTORS COMPANY
  19. Install the battery energy control module wiring harness (1) and connect the electrical connectors.
  20. Fig 9: Bus Bar Fasteners And Battery Cable
    GM2443386Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Critical high voltage fastener. Perform second torque verification following re-assembly.

  21. Install the battery cable (2) and tighten the bus bar fasteners (1) to 9 N.m (80 lb in).
  22. Perform the hybrid battery pack coolant passage leak test. Refer to Hybrid Battery Pack Coolant Passage Leak Test .
  23. Perform the cell battery balancing (Section 2). Refer to Hybrid/EV Battery Cell Balancing .
  24. Install the drive motor battery cover. Refer to Drive Motor Battery Cover Replacement .
  25. Enable the high voltage system. Refer to High Voltage Enabling .
