Installation Procedure

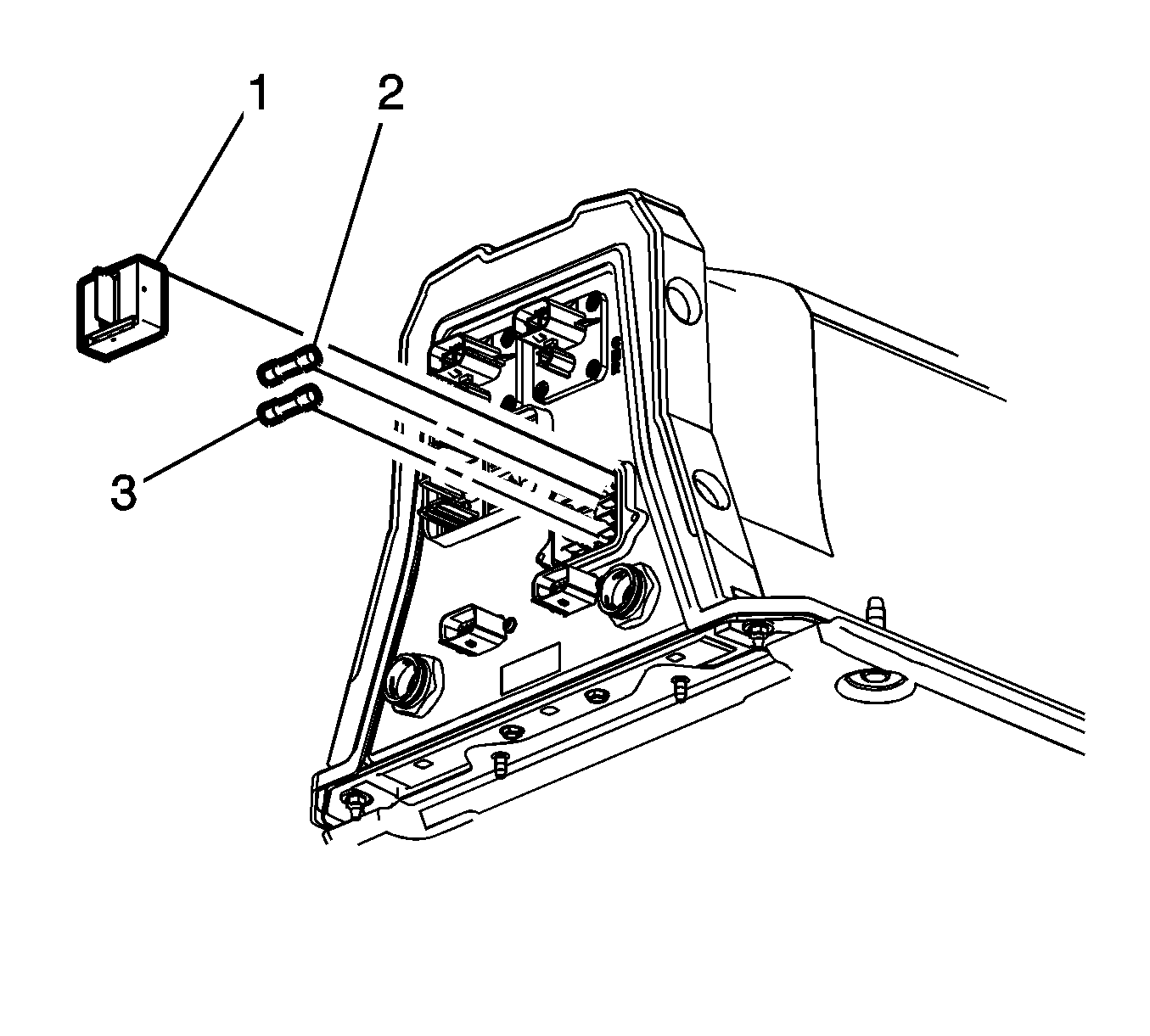

    Fig 1: Battery Protector And Maxi-Fuse
    GM2534437Courtesy of GENERAL MOTORS COMPANY
  1. Install the 14 V power module 20 amp maxi-fuse (2).
  2. Install the battery charger 20 amp maxi-fuse (3).
  3. Install the battery protector (Insulator) (1).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the multiuse relay and fuse cover (2) with screws (1). Tighten to 1.5 N.m (13 lb in).
  5. Connect the drive motor battery coolant cooler outlet hose (Battery Outlet to Valve) to the battery. Refer to Drive Motor Battery Coolant Cooler Outlet Hose Replacement (Battery Outlet to Valve) .
