Front Side Door Window Regulator Replacement

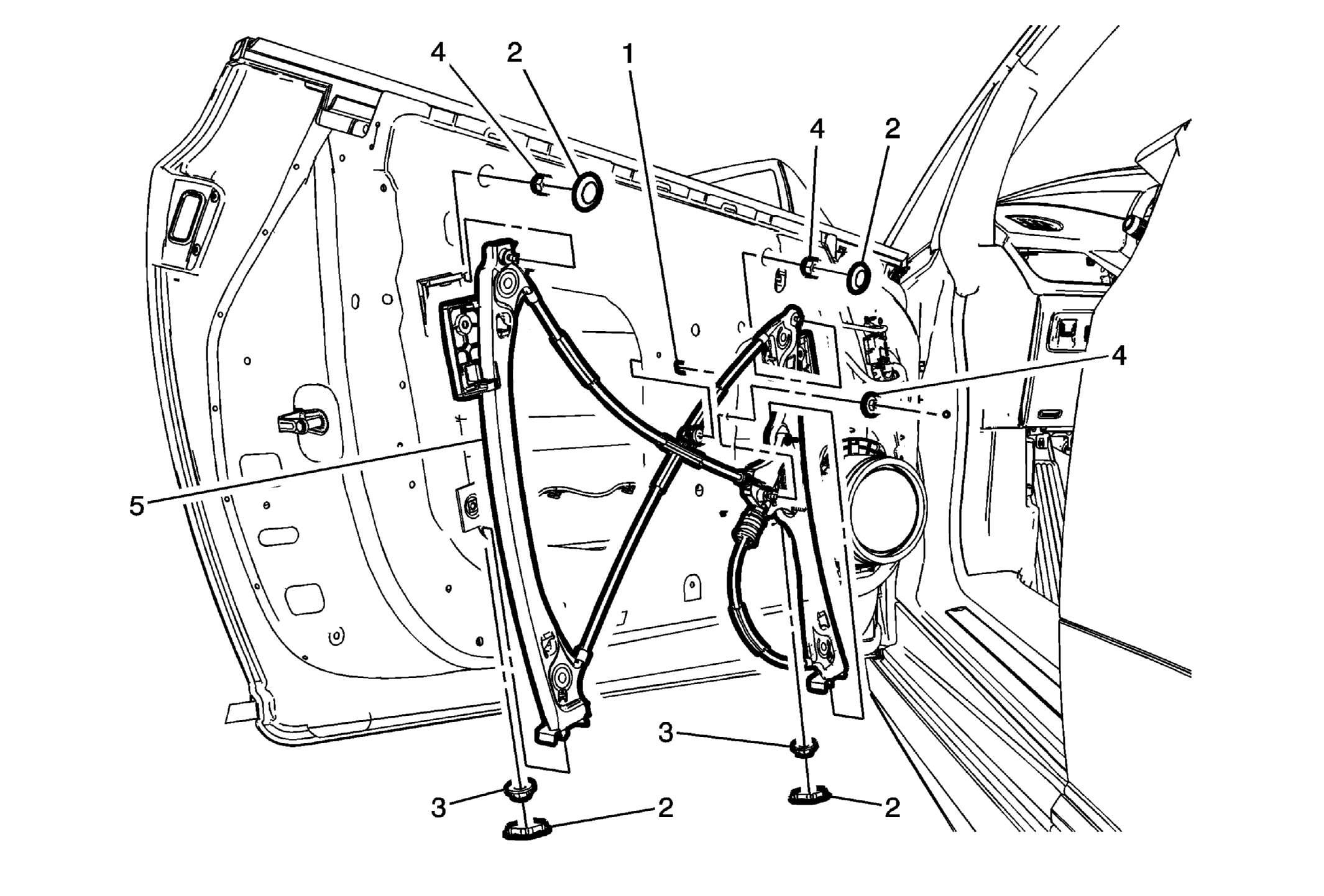

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window. Refer to Front Side Door Window Replacement . Remove the water deflector from the door.
1	Front Side Door Window Regulator Cable Retainer Procedure Disconnect the electrical connect from the power window motor.
2	Front Side Door Window Regulator Access Hole Plug (Qty: 4) NOTE: The lower access covers are located in the bottom of the door.
3	Front Side Door Window Regulator Lower Nut (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: The lower nuts for the window regulator are located in the bottom of the door. Tighten 9 N.m (80 lb in)
4	Front Side Door Window Regulator Upper Nut (Qty: 3) Tighten 9 N.m (80 lb in)
5	Front Side Door Window Regulator Procedure Transfer the power window motor and program after installing in the vehicle. Refer to Window Motor Programming - Express Function . NOTE: Inspect the door window for proper operation before installing the door trim.
