Front Side Door Window Replacement

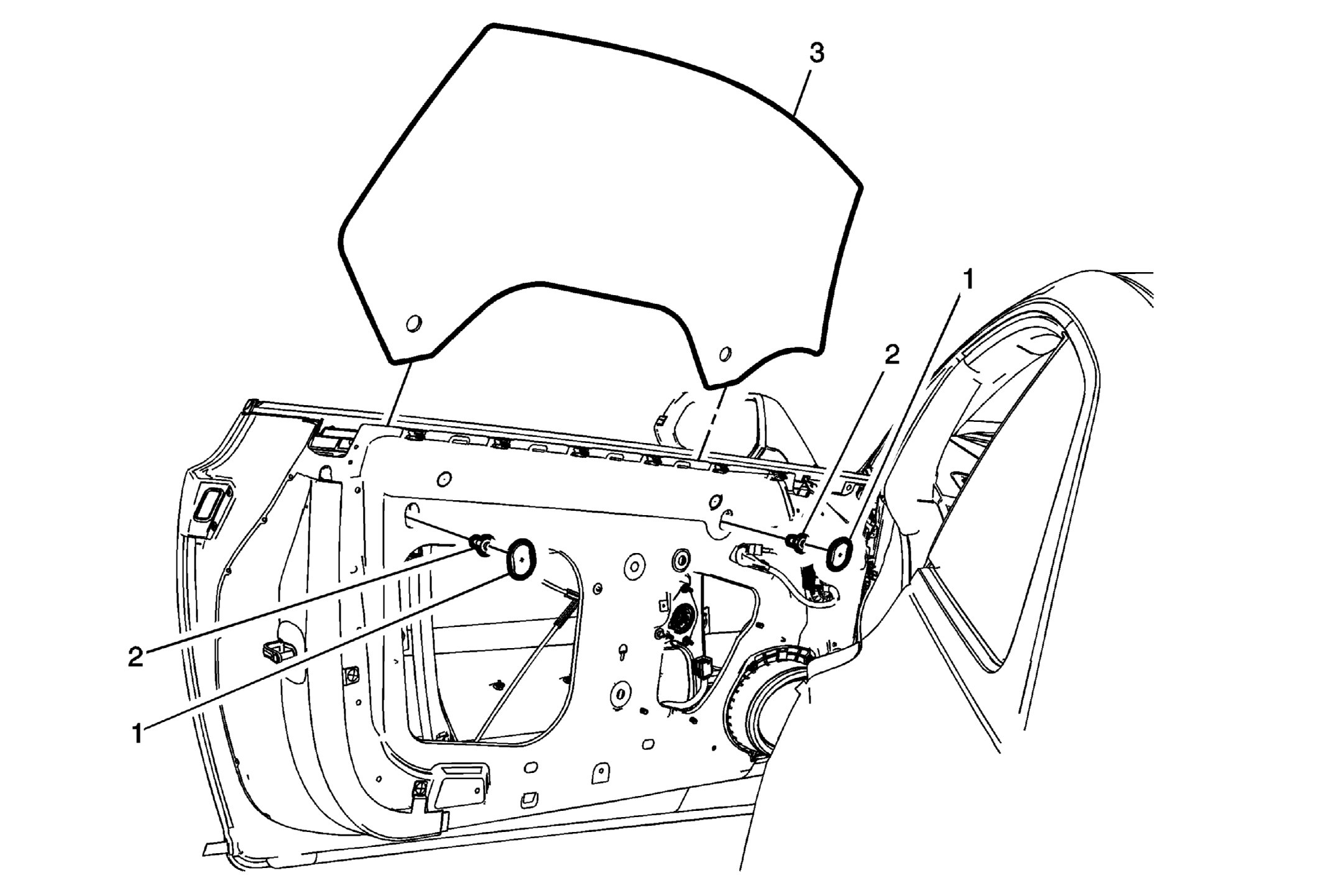

Fig 1: Front Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Refer to Express Window Down Warning . Preliminary Procedure Raise the window to the full up position and align the guide bolts with the access holes in the inner door panel.. Remove the inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement . Remove the water deflector.
1	Oblong Hole Plug (Qty: 2)
2	Front Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Use masking tape, tape off the outer door frame to prevent scratching. Loosen the bolts that attach the window to the window regulator guides. Tighten 11 N.m (97 lb in)
3	Front Side Door Window Procedure Inspect the door for proper operation before installing the door trim panel. Refer to Front Side Door Window Adjustment . After replacing the window it is necessary to reprogram. Refer to Control Module References .
