Radiator Replacement (LLM)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

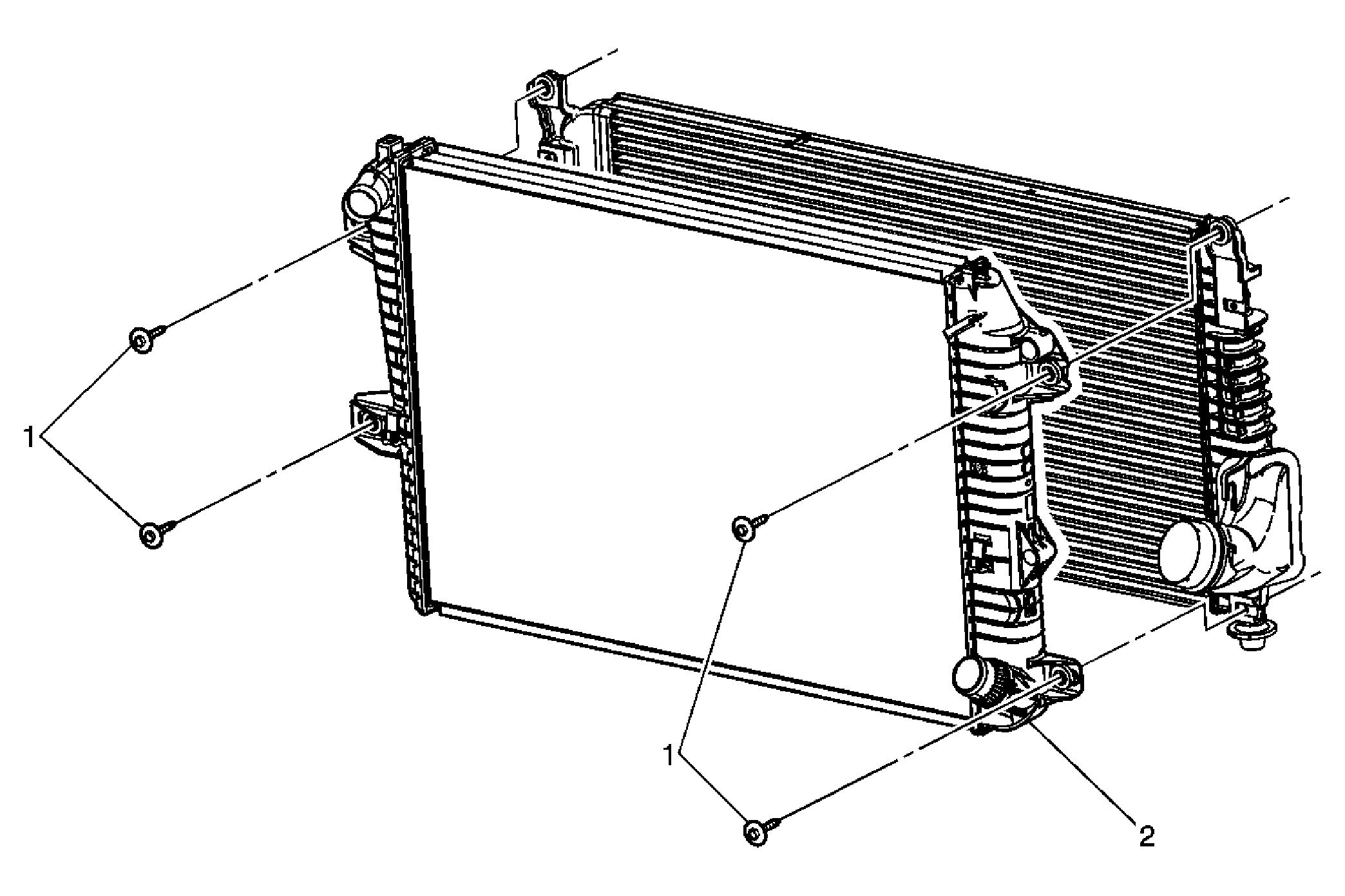

Fig 1: View Of Radiator Assembly & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) . If necessary, remove air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement Remove the surge tank inlet hose. Refer to Exterior Trim Emblem Removal Notice . Remove the charge air cooler inlet and outlet pipes. Refer to Charge Air Cooler Inlet Pipe Replacement and Charge Air Cooler Outlet Pipe Replacement . Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement . Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement .
1	Radiator Bolt (Qty: 4) Tip: Radiator is mounted to the charged air cooler.
2	Radiator Assembly

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) .
If necessary, remove air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement
Remove the surge tank inlet hose. Refer to Exterior Trim Emblem Removal Notice .
Remove the charge air cooler inlet and outlet pipes. Refer to Charge Air Cooler Inlet Pipe Replacement and Charge Air Cooler Outlet Pipe Replacement .
Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement .

Radiator Bolt (Qty: 4)
Tip: Radiator is mounted to the charged air cooler.

Radiator Assembly
