Radiator Inlet Hose Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

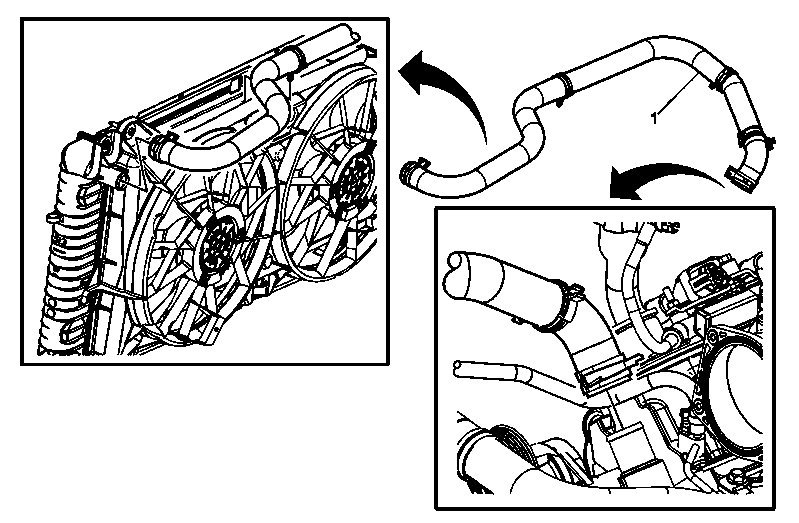

Fig 1: View Of Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) . Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Radiator Inlet Hose Tip: Remove the radiator vent hose from the radiator inlet hose clips. Using J 38185 reposition the radiator inlet hose clamps. See Special Tools .

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Radiator Inlet Hose
Tip:

Remove the radiator vent hose from the radiator inlet hose clips.
Using J 38185 reposition the radiator inlet hose clamps. See Special Tools .
