Front Side Door Window Channel Replacement

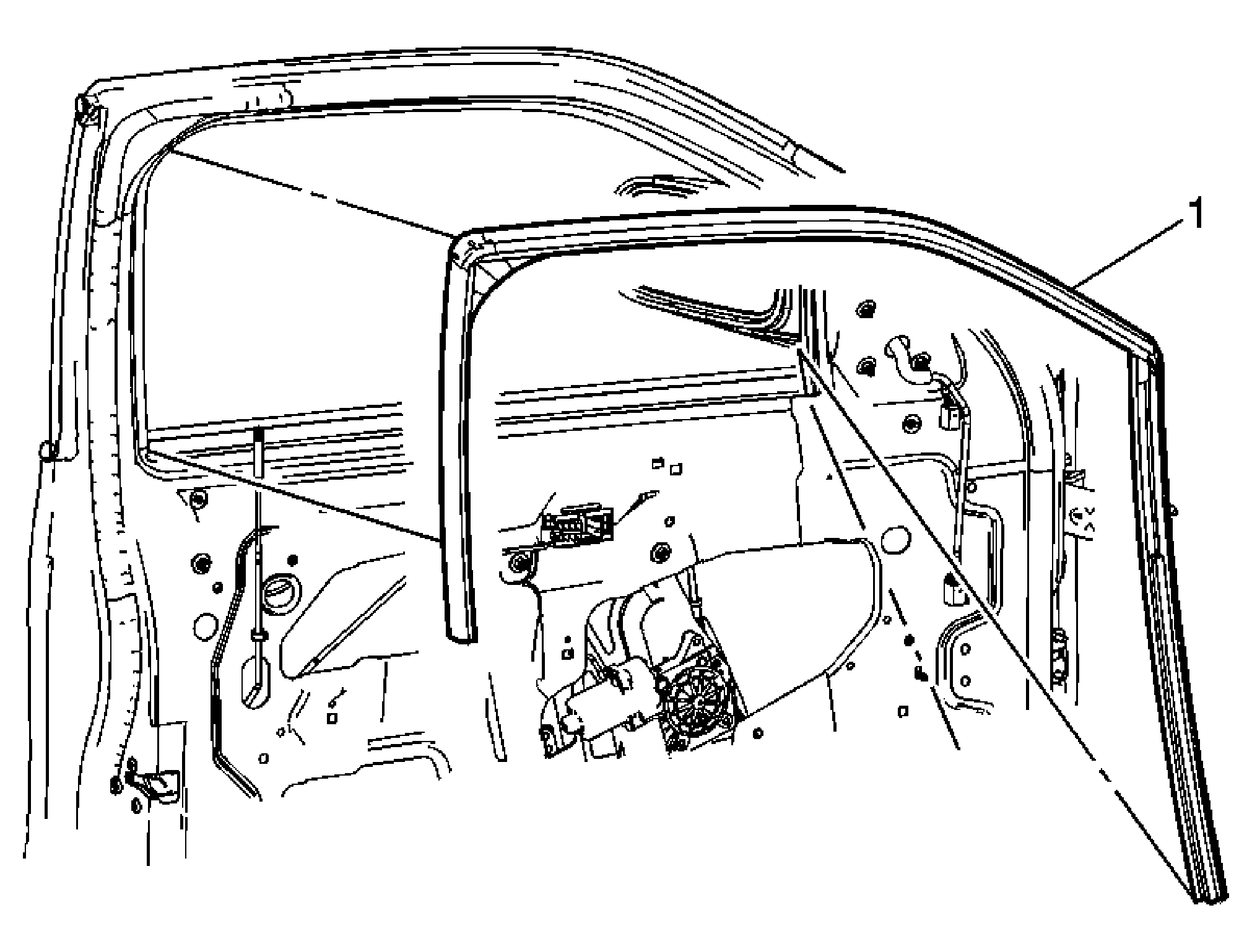

Fig 1: Window Run Channel Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the front side door window approximately half way down in the door. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front window garnish molding. Refer to Front Side Door Opening Frame Garnish Molding Replacement . Remove the front side door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner . Tape the window to the door frame to prevent it from moving. Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement . Remove the front door window. Refer to Front Side Door Window Replacement .
1	Window Run Channel, Front Door Tip: Pull the window run channel from the door frame channel.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the front side door window approximately half way down in the door.
Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front window garnish molding. Refer to Front Side Door Opening Frame Garnish Molding Replacement .
Remove the front side door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
Tape the window to the door frame to prevent it from moving.
Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement .
Remove the front door window. Refer to Front Side Door Window Replacement .

Window Run Channel, Front Door
Tip: Pull the window run channel from the door frame channel.
