Front Side Door Window Regulator Replacement

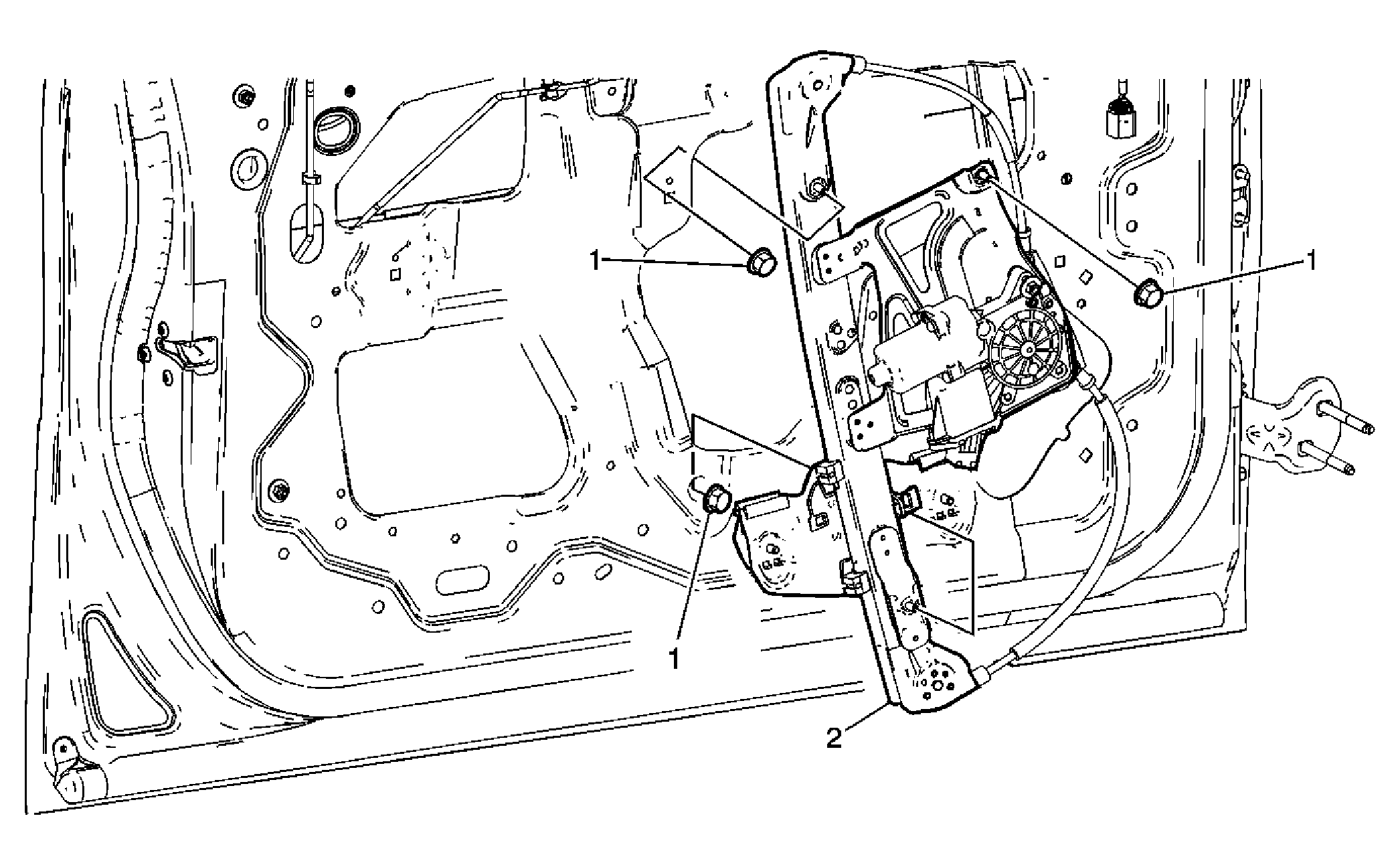

Fig 1: Window Regulator Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Tape the window to door frame to prevent it from moving.
1	Nut, Front Side Door Window Regulator to Door (Qty: 3) Tip: Loosen the window to regulator clamp bolts (Qty: 2). Release the window regulator from the window and door. Tighten: 9 N.m (80 lb in)
2	Regulator, Front Door Window Tip: Disconnect window regulator electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position window approximately half way down in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Tape the window to door frame to prevent it from moving.

Nut, Front Side Door Window Regulator to Door (Qty: 3)
Tip:

Tighten: 9 N.m (80 lb in)

Regulator, Front Door Window
Tip: Disconnect window regulator electrical connector.
