Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove the dashboard center panel. (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)
  4. Disconnect the hazard warning switch connector.
  5. Squeeze the tabs of hazard warning switch and pull it outward to remove it.
  6. Install in the reverse order of removal.

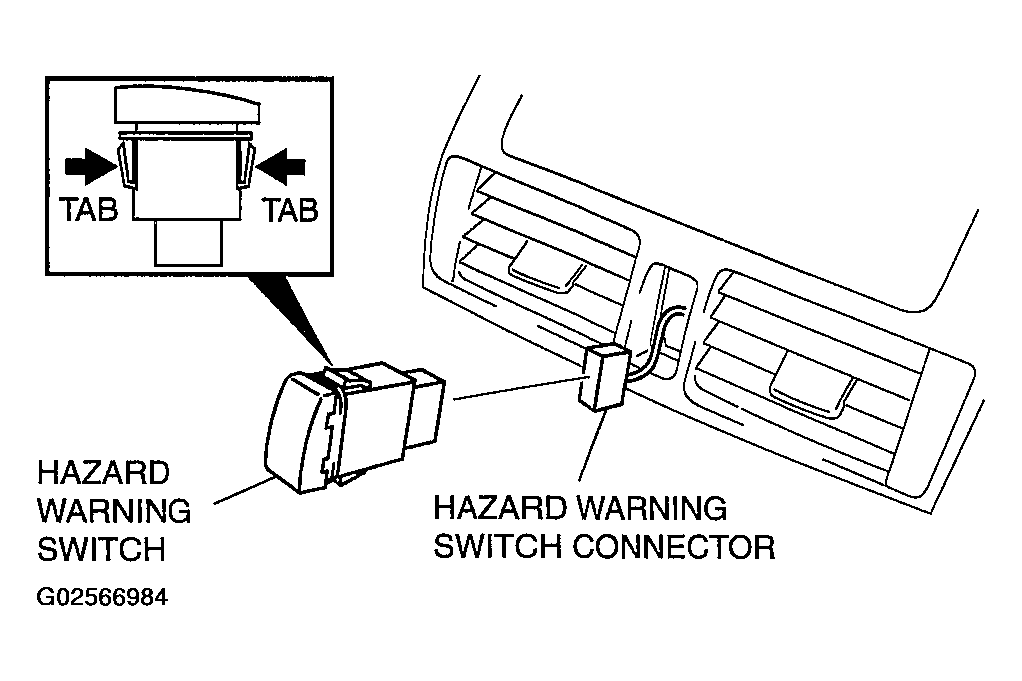

    Fig 1: Removing/Installing Hazard Warning Switch
    G02566984Courtesy of MAZDA MOTORS CORP.
