Dashboard Center Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Pull the dashboard center panel outward and detach clips A and locator pins B.
  5. Disconnect the hazard warning switch connector.
  6. Remove the dashboard center panel.
  7. Install in the reverse order of removal.

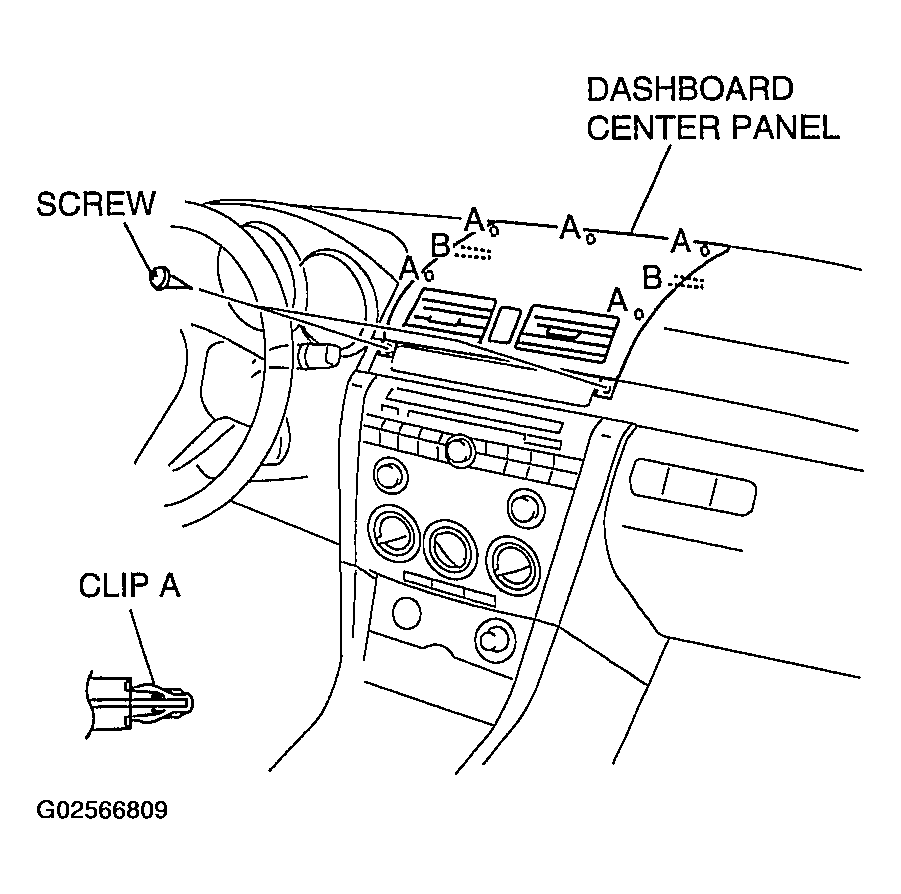

    Fig 1: Removing/Installing Dashboard Center Panel
    G02566809Courtesy of MAZDA MOTORS CORP.
