Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

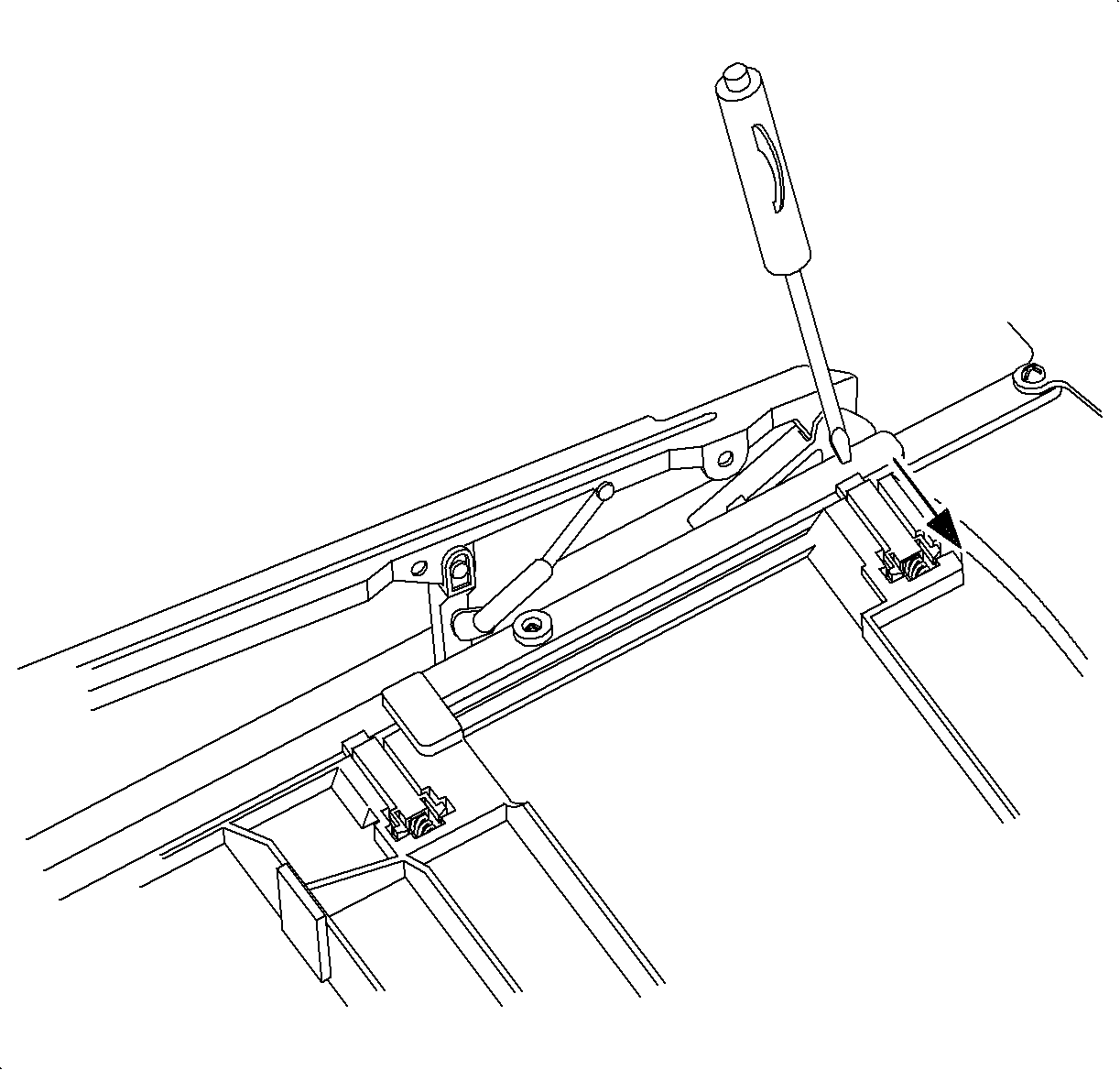

- Engage one side of the sunshade by positioning the spring clips into the track.
- Push the spring retainer clips inward on the opposite side of the sunshade to engage them into the track.
- Slide the sunshade back and forth to ensure proper operation.
- Slide the sunshade to the half closed position.
- Install the rear drain gutter. Refer to Sunroof Housing Drain Gutter Replacement .
- Install the sunroof window. Refer to Sunroof Window Replacement .
