Sunroof Housing Drain Gutter Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

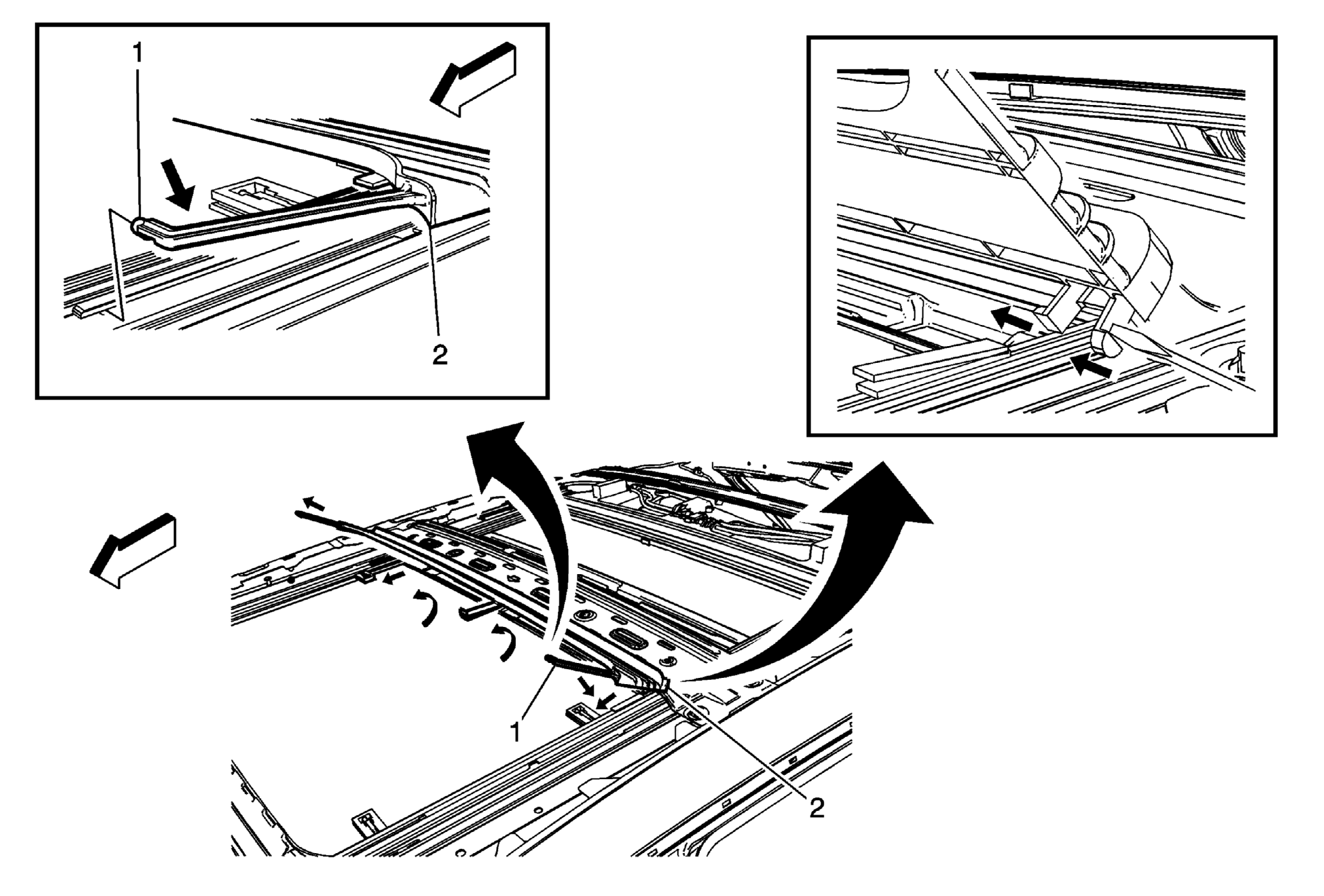

Fig 1: Sunroof Housing Drain Gutter Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Water Gutter Hook Arm Procedure Remember the location of the hole of curve on the panel which the water gutter hook arms hook into. Release the sunroof water gutter hook arms from the sunroof frame on both sides. Position the sunroof water gutter upright on both sides to location the tabs.
2	Sunroof Water Gutter Procedure: Remove the sunroof water gutter tab from the sunroof guide insert a flat blade tool and push inward on the tab to release it.

Callout

Component Name

Preliminary Procedure:
Remove the sunroof window. Refer to Sunroof Window Replacement .

Sunroof Water Gutter Hook Arm

Procedure

Remember the location of the hole of curve on the panel which the water gutter hook arms hook into.
Release the sunroof water gutter hook arms from the sunroof frame on both sides.
Position the sunroof water gutter upright on both sides to location the tabs.

Sunroof Water Gutter
Procedure:
Remove the sunroof water gutter tab from the sunroof guide insert a flat blade tool and push inward on the tab to release it.
